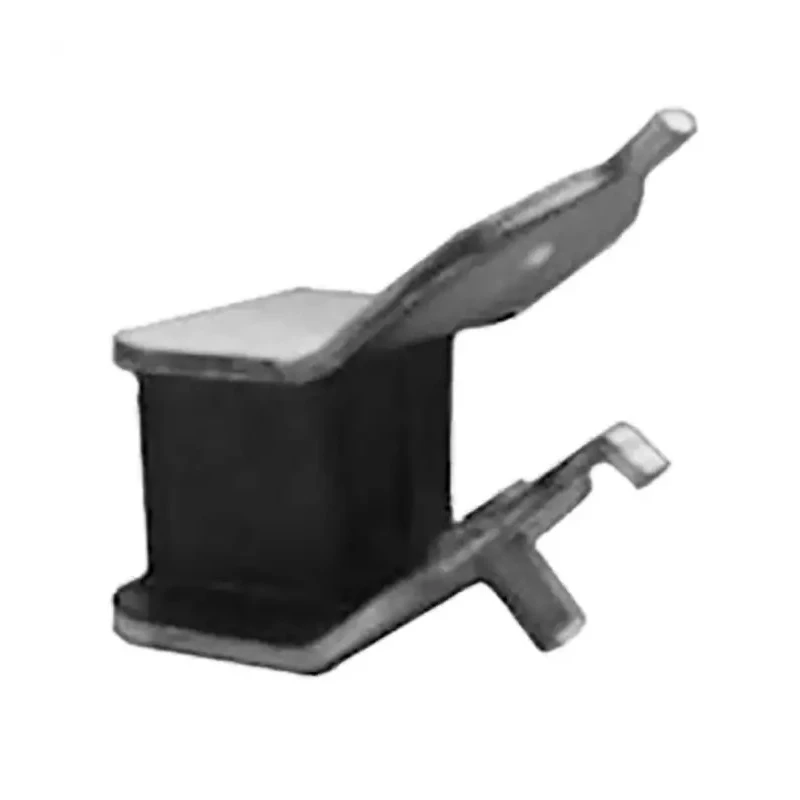

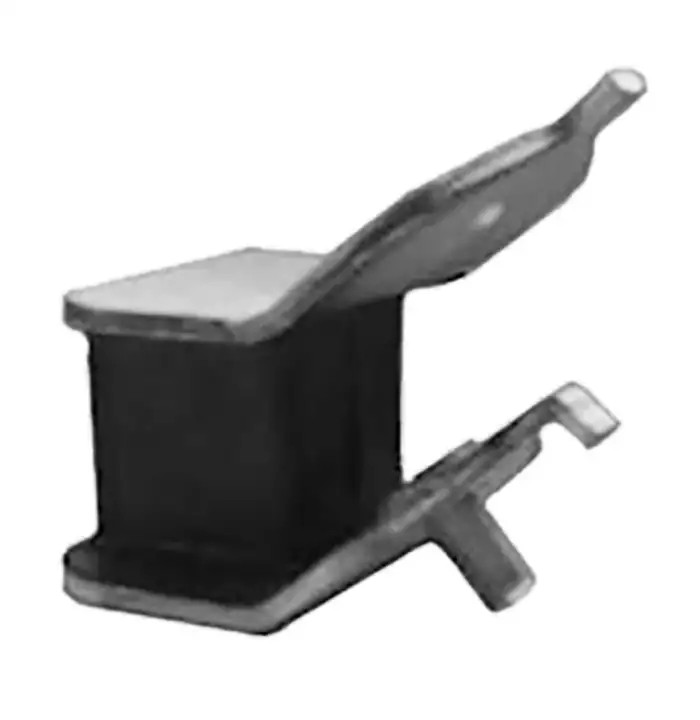

RS PRO M8 Anti-Vibration Mount Engine Mount with 65 kg Compression Load, 36 mm Outside Diameter, 54 mm Overall 126-3903
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Material | Natural Rubber |
| Model | 126-3903 |
| Mount Type | Screw |
| Series | RS PRO |
| Outside diameter | 36mm |
| Maximum Operating Temperature | 100°C |
| Thread Size | M8 |
| Overall height | 54mm |
| Standards/Approvals | RoHS |
| Static Load Rating | 65kg |
| Anti Vibration Mount Type | Engine Mount |
| Shore Hardness | 60 Shore A |
| Compression Load | 65kg |
| Compression Deflection | 3mm |
| Foot Colour | Black |
| Foot Height | 36mm |
Key Features
- Natural rubber material with 60 Shore A hardness ensures durability and flexibility.
- Maximum operating temperature rated at 100°C for industrial environment compatibility.
- Screw mount type with black foot color for secure and visible placement.
- Provides up to 97% vibration isolation at 3000 rpm engine speed through optimized suspension.
- Assembly bracket includes a locating feature to prevent twisting during installation.
- Available with or without fixing bolts to suit installation needs.
- Designed primarily for small engines or motors in industrial applications requiring vibration damping.
Product Description
RS PRO 126-3903 Anti-Vibration Mount is an M8 threaded engine mount designed for effective vibration isolation and support of small industrial engines and motors. It features a natural rubber composition with a Shore hardness of 60 Shore A, providing reliable flexibility and durability under mechanical stress.
This mount offers a static load rating and compression load capacity of 65 kg. Its critical dimensions include a 36 mm outside diameter, 36 mm foot height, and 54 mm overall height, facilitating compatibility with various mounting configurations in industrial machinery.
The mount's maximum operating temperature is specified at 100°C, enabling its use in moderately high-temperature environments commonly found in mechanical and manufacturing applications.
Engineered for near rotational suspension about the center of gravity, these mounts reduce vibration effectively, achieving up to 97% isolation at typical engine speeds of 3000 rpm. The included assembly bracket incorporates a locating feature to prevent twisting during installation, enhancing stability and reliability.
RS PRO provides these mounts with options to include fixing bolts or not, allowing customization according to installation requirements. The black-colored foot facilitates identification and consistent aesthetics across machinery assemblies.
Natural rubber material with 60 Shore A hardness ensures durability and flexibility. Maximum operating temperature rated at 100°C supports various industrial conditions. Screw mount type with secure M8 thread size offers strong attachment.
Exceptional vibration isolation reduces mechanical stresses at high rotational speeds. Locating feature in assembly bracket prevents twisting during fitting. Flexible bolt options permit tailored installation solutions. Ideal for mounting small industrial engines and motors in manufacturing and mechanical sectors.
This product is manufactured in India and complies with RoHS standards for restricted hazardous substances, supporting environmentally conscious equipment procurement. Explore more in the Machine Mounts category at EnvMart for complete anti-vibration solutions tailored to your industrial equipment needs.
Explore more products in our Anti Vibration Mounts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum compression load for this anti-vibration mount is 65 kg.
The outside diameter of this mount is 36 mm.
The overall height of this engine mount is 54 mm.
It is made of natural rubber, which provides flexibility and durability.
The maximum operating temperature for this model is rated at 100°C.
This mount provides up to 97% vibration isolation at 3000 rpm engine speed.
This model uses a screw mount type with an M8 thread size for secure attachment.
The mount is available with or without fixing bolts to suit installation needs.
The Shore hardness rating of this mount is 60 Shore A.
This engine mount is designed primarily for small engines or motors in industrial applications requiring vibration damping.
The assembly bracket includes a locating feature to prevent twisting during installation.
Yes, this product complies with RoHS standards for restricted hazardous substances.
