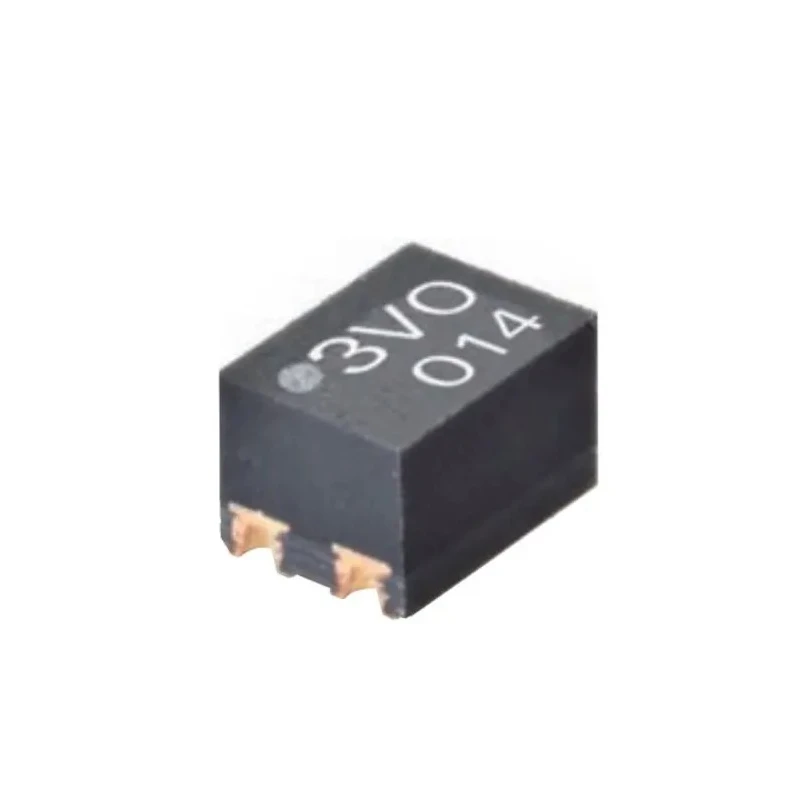

Omron G3VM Series Solid State Relay Surface Mount 1 A Load 60 V Load G3VM

The Omron G3VM Series Solid State Relay is a highly reliable electronic switching device designed for industrial automation and electronic applications requiring low noise and precise AC/DC switching control. It utilizes a world's smallest class S-VSON(L) MOSFET relay package that integrates a current limiting resistor on the input side. This design excels in providing superior I/O isolation by converting input voltage into light and transferring the signal optically, ensuring isolation voltage of up to 2,500 Vrms for standard and enhanced versions up to 5,000 VAC.

With a maximum load current capacity of 1 A and a load voltage rating of 60 V, this relay supports both AC and DC load switching. The SPST contact configuration combined with PCB terminal mounting offers user-friendly integration into printed circuit boards minimizing installation complexity. The MOSFET output type enables high-speed switching with minimal switching noise compared to traditional electromechanical relays and triacs.

Operating efficiently across a wide temperature range of -40°C to +125°C, it sustains low off-state leakage current of 1μA and a small device capacitance of 80pF. This ensures minimal signal interference and stability in sensitive electronic circuits.

Omron's G3VM relay is RoHS compliant, meeting stringent environmental and safety standards. Manufactured in Japan, it guarantees quality, durability, and performance for applications in industrial automation, HVAC controls, instrumentation, and electronic control systems.

The relay features a compact S-VSON(L) MOSFET package with an internal current limiting resistor. Excellent isolation between input and output ensures device safety and circuit integrity. 1 A maximum load current and 60 V load voltage rating for diverse electronic applications.

Surface mount design with PCB terminals simplifies installation. Wide operating temperature range from -40°C to 125°C for harsh environments. Low off-state leakage current of 1μA minimizes power loss. MOSFET output type delivers quick switching and reduces electrical noise.

Complies with RoHS environmental standards. Produced in Japan, ensuring premium manufacturing quality. Explore the Omron series and related Solid State Relays on EnvMart for your industrial and electronic circuit control needs.
