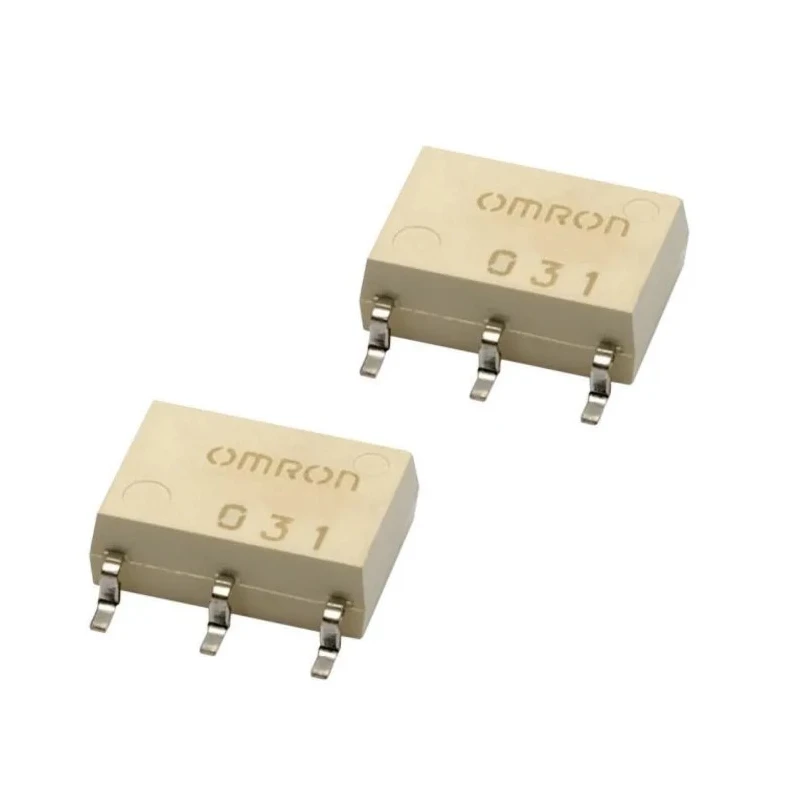

Omron G3VM Series Solid State Relay 8 A Load Surface Mount 60 V Load

Omron G3VM-61HR2(TR05) is a solid state relay designed for load currents up to 8 A and maximum load voltage of 60 V in a compact surface mount package. Featuring MOSFET output, it achieves low on-state resistance of 0.07 ohms, providing efficient and high-speed switching ideal for automation and control applications.

This relay offers high isolation between input and output circuits through its optical transfer principle, with standard isolation voltage of 2,500 Vrms and options reaching 5,000 VAC. Its small size (6.3 mm length and 4.4 mm width) and low driving current make it suitable for densely packed electronic assemblies.

The operating temperature range from -40°C to 125°C ensures reliable performance in harsh industrial environments. With its ultra-small size and long operating life, it reduces switching noise compared to mechanical relays, making it suitable for sensitive signal conditioning and industrial automation.

Additional benefits include low leakage current, excellent shock resistance, and minimal distortion of input waveforms, as it converts micro-analog signals into clean output waveforms without dead zones typical in triac-based relays.

This solid state relay complies with UL recognition standards and is manufactured in Japan, ensuring high-quality manufacturing standards. It is suitable for a wide variety of industrial electronics, electrical drives, HVAC controls, and automation systems where reliable solid state switching is essential.

Utilizes MOSFET output for low on-state resistance of 0.07 ohms. Surface mount type with SPST contact configuration for efficient circuit integration. Operates reliably between -40°C and 125°C temperature range. Ultra small size with dimensions 6.3 mm length and 4.4 mm width.

High switching speed with low driving current and minimal leakage current. Provides excellent shock resistance and long operating life for industrial applications. Capacitance is rated at 750 pF offering stability in signal transmission.

Input and output isolation rated at 2,500 Vrms with superior models up to 5,000 VAC available. Complies with UL recognition standards ensuring quality and safety. Explore a broad selection of reliable Solid State Relays and electronic control components at EnvMart to enhance your industrial and automation projects.
