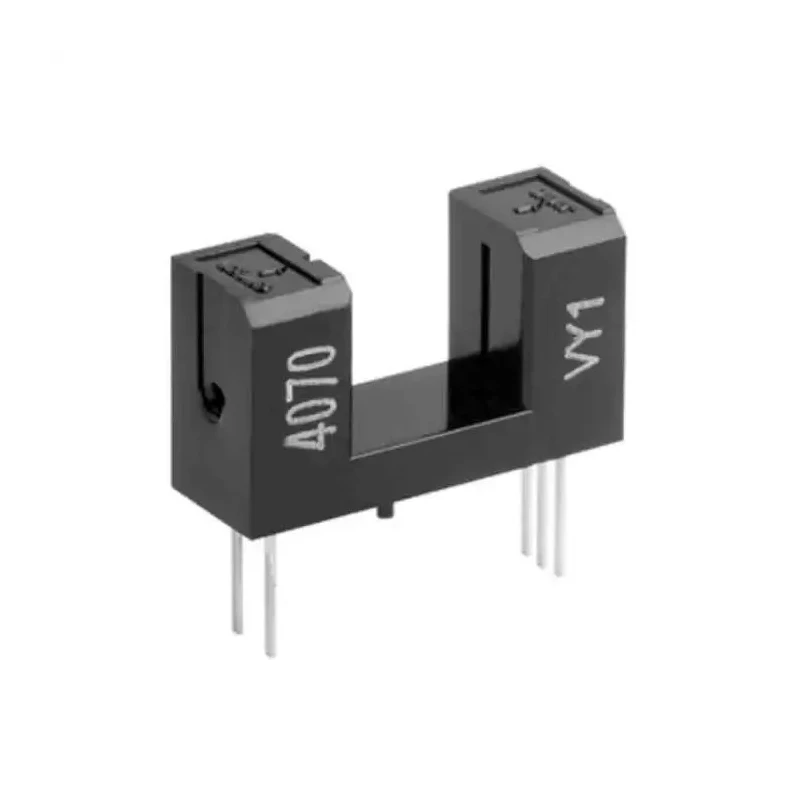

Omron Slotted Optical Switch Through Hole Mount Photo IC Output EE-SX3070
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Length | 17.7mm |
| Model | EE-SX3070 |
| Mount Type | Through Hole |
| Series | EE-SX |
| Maximum Operating Temperature | 75°C |
| Package Type | Pin |
| Minimum Operating Temperature | -40°C |
| Slot Width | 8mm |
| Number Of Channels | 1 |
| Output Device | Photo IC |
| Number of Pins | 5 |
Key Features
- The switch features a 0.5 mm-wide high resolution aperture for accurate sensing.
- Compatible with voltage range from 4.5 to 16 VDC for flexible integration.
- Equipped with an IC chip housing detector element and amplifier for reliable output.
- Photo IC outputs directly interface with CMOS and TTL logic systems.
- Operating temperature ranges from -40°C to 75°C for various environments.
- Slot width of 8 mm and total length of 17.7 mm suit multiple installation needs.
- Package includes through hole pin-type mounting with 5 pins.
- Applications include office automation, medical devices, building automation, vending machines, and amusement industry equipment.
Product Description
Omron EE-SX3070 is a slotted optical switch featuring a through hole mount and photo IC output. It operates over a wide voltage range of 4.5 to 16 VDC and incorporates a high-resolution 0.5 mm-wide aperture suitable for precise sensing applications.
This switch includes an integrated IC chip containing the detector element and amplifier, providing photo IC output directly compatible with CMOS and TTL circuitry. It supports single channel operation with a package type using 5 pins for through hole mounting.
Designed to function reliably in temperature environments from -40°C up to 75°C, the EE-SX3070 is ideal for diverse industrial uses such as office automation, medical instruments, building automation, vending machines, and amusement industry devices.
The device has a slot width of 8 mm and total length of 17.7 mm for easy mechanical integration. Its compact size and electrical characteristics make it a dependable choice in photodetector and optocoupler applications.
The switch features a 0.5 mm-wide high resolution aperture for accurate sensing. Compatible with voltage range from 4.5 to 16 VDC for flexible integration. Equipped with an IC chip housing detector element and amplifier for reliable output.
Photo IC outputs directly interface with CMOS and TTL logic systems. Operating temperature ranges from -40°C to 75°C for various environments. Slot width of 8 mm and total length of 17.7 mm suit multiple installation needs.
Package includes through hole pin-type mounting with 5 pins. Applications include office automation, medical devices, building automation, vending machines, and amusement industry equipment.
The EE-SX3070 is manufactured in Japan to ensure high quality and reliability. For advanced industrial and electronic system designers, this Omron Slotted Optical Switch provides effective photodetection capabilities with robust integration features.
Discover more sensors and optical switch solutions in the Electronics & Electricals category on EnvMart for your industrial automation and electronic design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a voltage range of 4.5 to 16 VDC, allowing for flexible integration in various systems.
The EE-SX3070 can operate in temperatures ranging from -40°C to 75°C, making it suitable for diverse environmental conditions.
It features a photo IC output that can directly interface with CMOS and TTL logic systems, ensuring compatibility with various electronic devices.
This unit has a total length of 17.7 mm and a slot width of 8 mm, designed for easy mechanical integration.
The switch comes with a through hole pin-type mounting configuration that includes 5 pins.
It is suitable for applications in office automation, medical devices, building automation, vending machines, and amusement industry equipment.
This model uses a through hole mount type, which facilitates its installation in various electronic assemblies.
The device supports single channel operation, making it straightforward for use in simpler applications.
This optical switch is manufactured in Japan, ensuring high quality and reliability in its design and performance.
It features a high-resolution aperture that is 0.5 mm wide, allowing for accurate sensing capabilities.
While the operating temperature range allows for various environments, specific outdoor suitability should be assessed based on installation conditions and exposure.
The EE-SX3070 belongs to the EE-SX series, which includes other models with similar functionalities.
