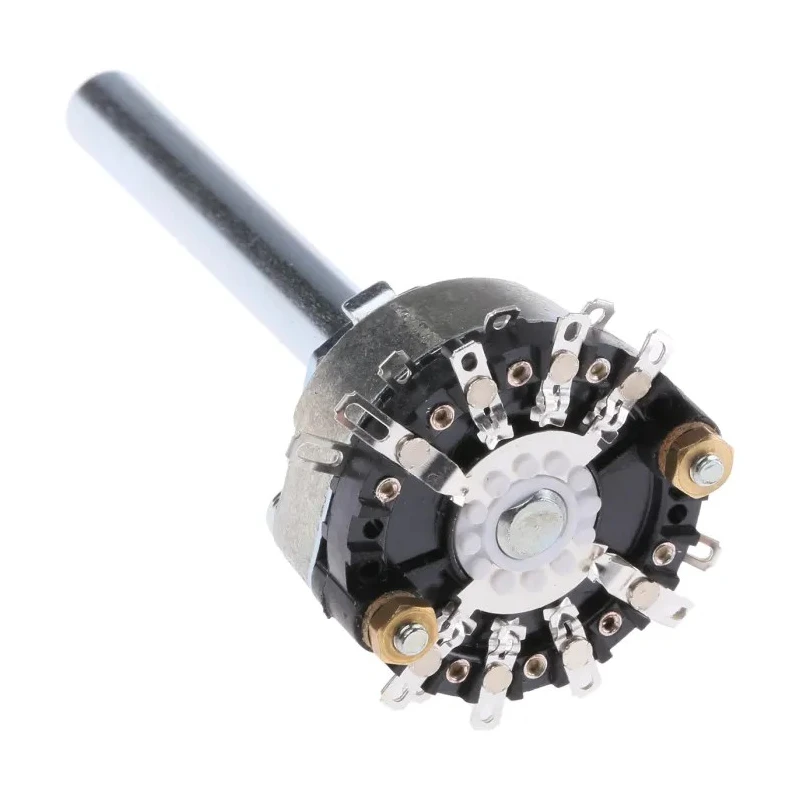

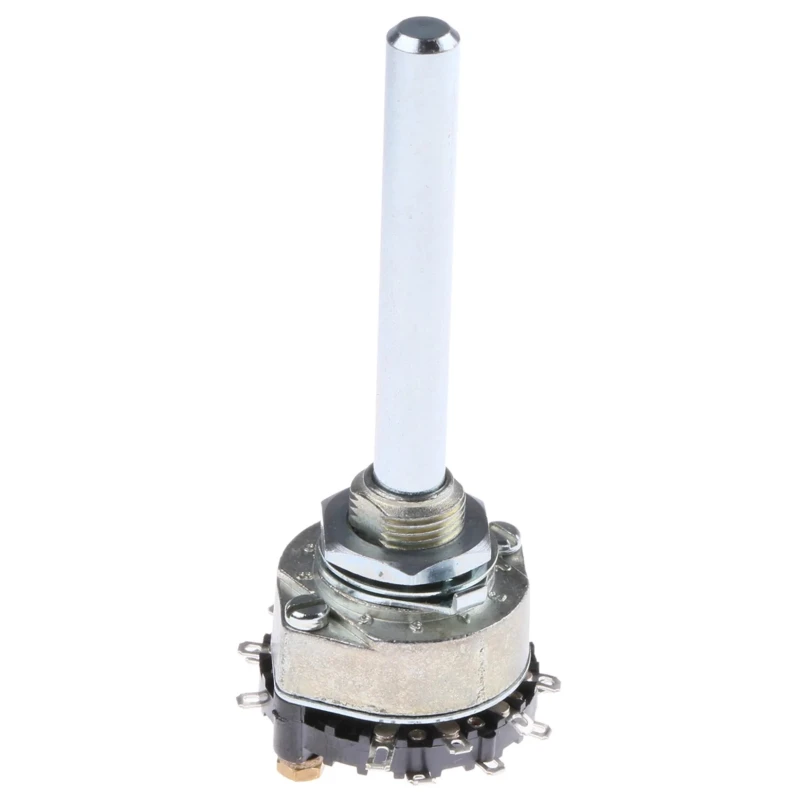

Lorlin RA 3 Position 4PST Rotary Switch 1A Zinc Alloy Panel Mount RA01D03BSSMS0X
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 25.4mm |
| Brand | Lorlin |
| Height | 9mm |
| Model | RA01D03BSSMS0X |
| Depth | 23.8mm |
| Width | 25.4mm |
| Mount Type | Panel |
| Housing Material | Zinc Alloy |
| Series | RA |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 4PST |
| Number of Positions | 3 |
| Switch Configuration | Off-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Maximum dc Voltage | 12V dc |
| Number of Poles | 4 |
| Standards/Approvals | RoHS |
| Switch Contact Current | 1A |
| Mechanical Life | 10000Operations |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 30 ° |
| Lorlin CK, 4 Position 3PST Rotary Switch, 150mA, Solder TabBrand | Lorlin |
Key Features
- Features a 3-position, 4-pole single throw contact configuration.
- Constructed with durable zinc alloy housing for robustness.
- Panel mount design with 6 mm diameter shaft for easy installation.
- Capable of switching 1 amp current with maximum AC voltage of 250V and DC voltage of 12V.
- Operating temperature range from -30°C to 85°C for versatile usage.
- Mechanical life rated for up to 10,000 operations ensuring longevity.
- Utilizes solder terminals for secure electrical connection.
- Switch configuration is Off-On with a 30° angle of throw.
Product Description
Lorlin RA01D03BSSMS0X is a 3 Position 4PST Rotary Switch designed for panel mounting applications. Featuring a robust zinc alloy housing, this rotary switch provides reliable operation within an operating temperature range of -30°C to 85°C. It caters to electrical switching needs with a contact current rating of 1A and supports maximum AC voltages up to 250V and DC voltages up to 12V.
Its compact design includes a 25.4 mm diameter shaft for precise control and easy integration into control panels. The switch mechanism offers an Off-On configuration with a 30° angle of throw to ensure accurate positioning. The solder terminal type ensures firm and secure electrical connections, suited for manufacturing and industrial automation environments.
The mechanical life of the switch is rated at 10,000 operations, making it suitable for commercial electrical systems, HVAC controls, instrumentation, and other industrial applications requiring dependable rotary switching.
The product complies with RoHS standards, ensuring reduced environmental impact and safety during usage. 3 position, 4-pole single throw contact configuration. Zinc alloy robust housing suitable for industrial environments.
Panel mounting with 6 mm diameter shaft. Contact current rating of 1 ampere. Maximum AC voltage of 250V and DC voltage of 12V. Operating temperature from -30°C to 85°C. Mechanical life of 10,000 cycles. Solder terminal type for secure connection.
Off-On switch configuration with 30° angle of throw. Compliant with RoHS environmental directives.
This rotary switch is ideal for electrical automation, control panels, and instrumentation in industrial, manufacturing, and HVAC sectors. Explore similar reliable rotary switch components in the Electronics & Electricals category at EnvMart for your project needs.
Explore more products in our Rotary Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 4-pole single throw (4PST) contact configuration.
It supports a maximum AC voltage of 250V.
The switch has a contact current rating of 1 ampere (1A).
It operates within a temperature range of -30°C to 85°C.
It utilizes solder terminals for secure electrical connections.
The mechanical life of this switch is rated for up to 10,000 operations.
The shaft has a diameter of 25.4 mm, suitable for panel mounting.
The switch configuration has a 30° angle of throw.
The housing is constructed from durable zinc alloy.
Yes, it complies with RoHS standards, ensuring reduced environmental impact.
The dimensions are 25.4 mm in width and depth, with a height of 9 mm.
It is suitable for applications in electrical automation, control panels, and instrumentation in industrial and HVAC sectors.
