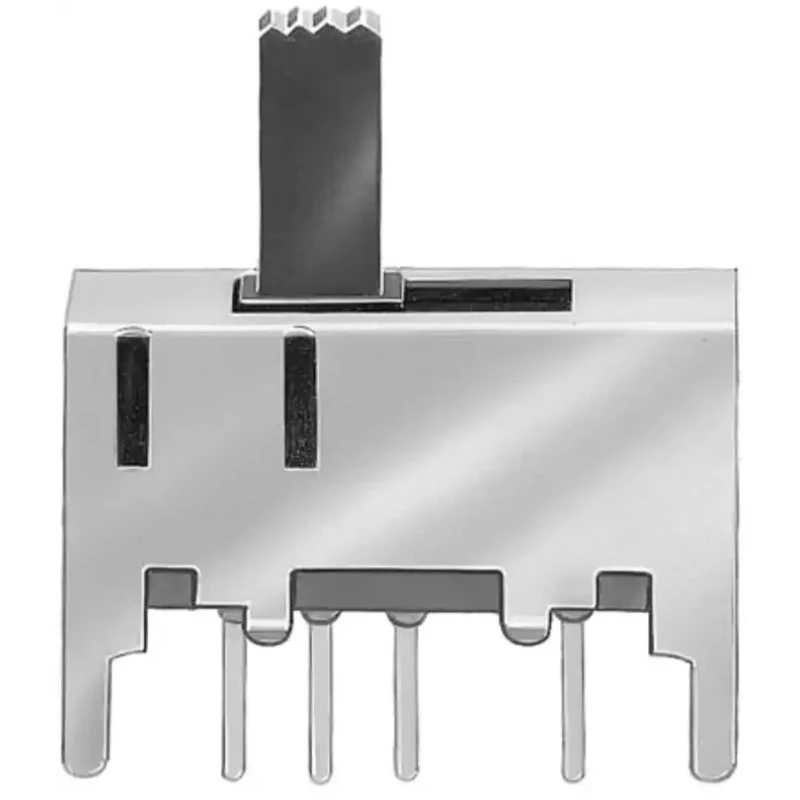

KNITTER-SWITCH PCB Slide Switch DPST On-On-On 200mA 30V DC Copper Actuator MFP 223 P
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Length | 16mm |
| Model | MFP 223 P |
| Depth | 15mm |
| Width | 15mm |
| Mount Type | PCB |
| Contact Material | copper alloy, silver plated over nickel barrier |
| Series | MFP |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPST |
| Switch Configuration | On-On-On |
| Minimum Operating Temperature | -10°C |
| Terminal type | Terminal |
| Standards/Approvals | RoHS |
| Switch Operation | On-On-On |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 200mA |
| Mechanical Life | 10000Operations |
| Actuator Material | Copper |
Key Features
- Compact PCB mount slide switch designed for reliable DPST contact configuration.
- Copper alloy actuator with silver plating over nickel barrier for enhanced durability.
- Switch operation features On-On-On configuration with a mechanical life of at least 10,000 operations.
- Rated for 200mA switch contact current at 30V DC, suitable for low-voltage electronic applications.
- Non-illuminated terminal type ensuring straightforward connection.
- Compliance with RoHS standards for environmental safety and quality.
- Operating temperature range from -10°C to 60°C ensuring wide environmental tolerance.
Product Description
KNITTER-SWITCH MFP 223 P is a miniature PCB slide switch featuring DPST (Double Pole Single Throw) On-On-On switch operation designed for precise and reliable switching in low current electronic circuits. This slide switch is engineered with a copper alloy actuator, silver plated over a nickel barrier to ensure excellent electrical conductivity and corrosion resistance for long-term use.
The switch supports a contact current of 200mA and is rated for 30V DC making it suitable for control circuits in industrial automation, instrumentation, and electronic devices. Its compact dimensions of 16mm length, 15mm width, and 15mm depth allow seamless integration into printed circuit boards without occupying excessive space.
Mechanically, the switch offers durability with a minimum of 10,000 operations, ideal for applications requiring repeated switching action. The product adheres to RoHS compliance, supporting environmentally friendly manufacturing practices.
The temperature rating ranges from -10°C to 60°C, suitable for varied ambient environments in laboratory, electronics manufacturing, or HVAC control systems. The terminal type is terminal style facilitating solder or mounting connections tailored for PCBs. This non-illuminated slide switch enhances compact design requirements for miniaturized electrical assemblies.
Compact PCB mount slide switch with DPST On-On-On configuration. Copper alloy, silver plated actuator offering superior conductivity. Long mechanical life rated at 10,000 operations minimum. Rated for 200mA contact current at 30V DC voltage.
Complies with RoHS environmental standards. Operating temperature from -10°C to 60°C for versatile use. Dimensions: 16mm length, 15mm width, 15mm depth. Terminal type ensures reliable PCB connections.
This KNITTER-SWITCH PCB Slide Switch MFP 223 P is suitable for use in electronics manufacturing, automation systems, industrial equipment, and laboratory instrumentation where precise switch control is necessary. Explore more high-quality switch components and electrical parts in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a DPST (Double Pole Single Throw) contact configuration, allowing for On-On-On switch operation.
It is rated for a contact current of 200mA at a voltage of 30V DC, making it suitable for low-voltage electronic applications.
The switch has compact dimensions of 16mm in length, 15mm in width, and 15mm in depth, allowing for easy integration into PCBs.
This unit has a mechanical life rated for at least 10,000 operations, ensuring durability for repeated switching actions.
The actuator is made from a copper alloy and is silver plated over a nickel barrier, providing excellent electrical conductivity and corrosion resistance.
It operates effectively within a temperature range of -10°C to 60°C, suitable for various ambient environments.
The switch features a terminal type that facilitates solder or mounting connections, tailored for PCB applications.
Yes, this model complies with RoHS standards, ensuring it meets environmental safety and quality requirements.
It is suitable for use in electronics manufacturing, automation systems, industrial equipment, and laboratory instrumentation where precise switch control is necessary.
This unit is designed for PCB mounting, allowing it to be integrated into printed circuit boards without taking up excessive space.
The switch operates in an On-On-On configuration, allowing for multiple switching states in a compact design.
This slide switch is manufactured in China.
