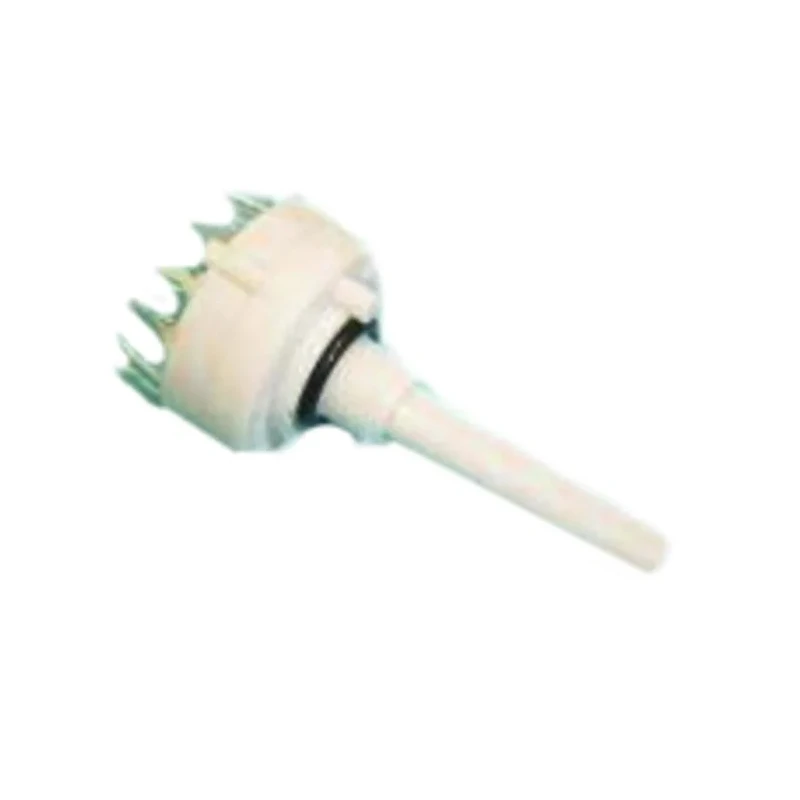

Lorlin CK Series Rotary Switch PCB Mount, Solder Tag Terminals, IP67 Rated, 250V AC/DC, 90° Angle of Throw CKS1049
Specifications
| Country of Origin | UKCost effective single wafer |
|---|---|
| Diameter | 27.5mm |
| Brand | Lorlin |
| Model | CKS1049 |
| Depth | 27.5mm |
| IP Rating | IP67 |
| Width | 26.2mm |
| Mount Type | PCB |
| Housing Material | Polyamide |
| Series | CK |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | 30°C |
| Terminal type | Solder Tag |
| Maximum dc Voltage | 250V dc |
| Standards/Approvals | RoHS |
| Actuator Colour | Black |
| Mechanical Life | 10000Cycles |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 90 ° |
Key Features
- The switch is rated for a maximum AC and DC voltage of 250 volts.
- It includes a 90° angle of throw with mechanical life of 10,000 cycles.
- Constructed with a black actuator and polyamide body for durability.
- Designed with dampened indexing and reduced shaft play for smooth operation.
- Compatible with up to 4 poles and a maximum of 12 positions per switch.
- Options include shorting or non-shorting contacts suitable for signal applications.
- The front panel is sealed to IP66 and IP67 standards for water and dust resistance.
- The mounting type is PCB to accommodate various circuit board designs.
Product Description
Lorlin CKS1049 rotary switch is a new, precision-engineered electrical component designed for reliable signal switching on printed circuit boards. Featuring a robust polyamide housing and solder tag terminals, this rotary switch suits applications requiring reliable multi-position switching with high mechanical endurance.
The switch supports a maximum voltage of 250V AC and DC, making it suitable for various control and automation systems in industrial, manufacturing, and commercial electronic equipment. With an actuator color in black, it provides a user-friendly interface with a 90° angle of throw.
Its dampened indexing mechanism and reduced shaft play ensure smooth, precise switching action, reducing wear over its 10,000 cycle mechanical life. The front panel sealing meets IP67 standards, protecting against dust ingress and temporary immersion, with IP66 rated protection against powerful water jets. This makes the switch suitable for harsh or outdoor environments when combined with appropriate ancillary accessories.
The CKS series can accommodate up to 4 poles per switch and has a maximum of 12 positions, offering versatility in circuit design. Shorting (make before break) and non-shorting (break before make) contact options are available, enhancing its applicability in complex signal routing tasks.
Operating temperature from -30°C to +85°C allows use in a broad range of climates and industrial conditions. The PCB mounting type simplifies integration into modern electronic assemblies.
The switch is IP67 front panel sealed for dust and water resistance. Housing is made of durable polyamide material for longevity. Mechanical life rated at 10,000 cycles indicates robust durability. The actuator color is black for easy identification.
Complies with RoHS standards for environmental compliance.
Commonly employed in industrial automation, electrical control panels, and instrumentation, the Lorlin CKS rotary switch series provides reliable, cost-effective switching solutions. Choosing this Rotary Switch enhances both performance and safety compliance across many sectors.
Explore more high-quality electrical switches and components at EnvMart to support your engineering projects and operations with trusted, durable products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rotary switch is rated for a maximum AC and DC voltage of 250 volts.
This model has a mechanical life rated at 10,000 cycles, indicating its durability for repeated use.
It features a 90° angle of throw, allowing for precise switching action.
The switch has a diameter of 27.5mm, a width of 26.2mm, and a depth of 27.5mm.
It is equipped with solder tag terminals for secure connections on printed circuit boards.
The front panel is sealed to IP67 standards, providing protection against dust and temporary immersion in water.
The housing is made of polyamide, which contributes to its durability and longevity.
This unit can operate within a temperature range from -30°C to +85°C.
It can accommodate up to 4 poles and a maximum of 12 positions per switch.
Yes, it complies with RoHS standards for environmental compliance.
Options include shorting (make before break) and non-shorting (break before make) contacts, suitable for various signal applications.
