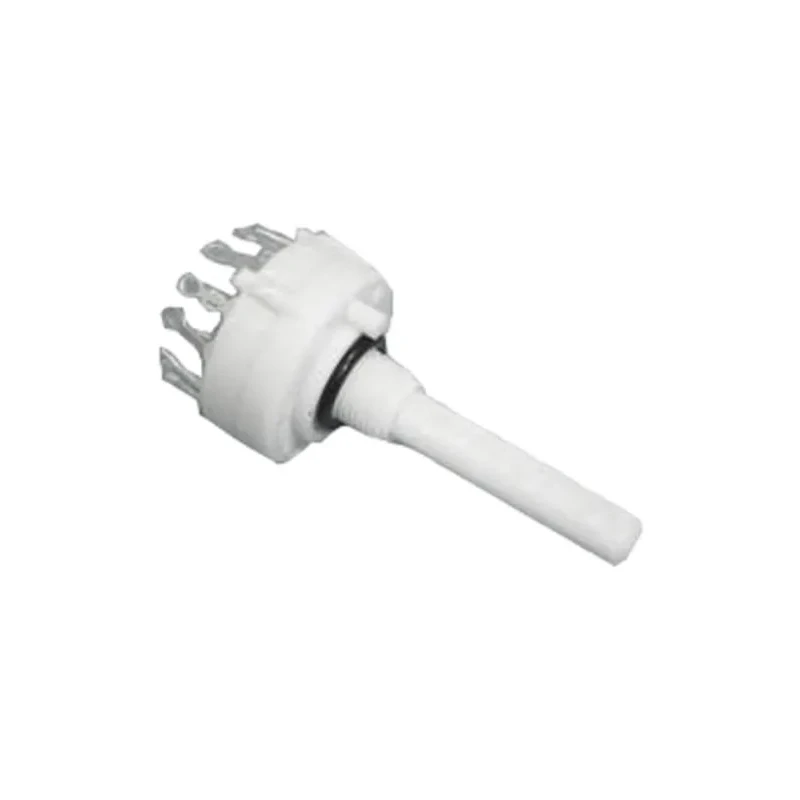

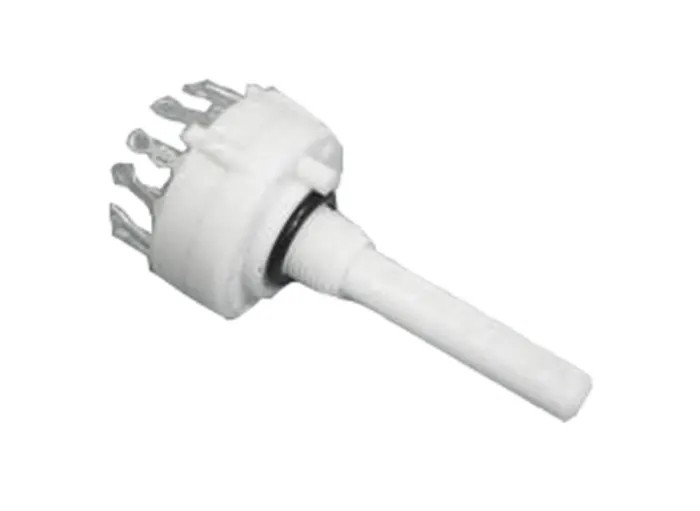

Lorlin CK Series 6 Position Rotary Switch 1A PCB Terminal, IP65 Sealed CKF1055
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 27.5mm |
| Brand | Lorlin |
| Model | CKF1055 |
| Depth | 27.5mm |
| IP Rating | IP65 |
| Width | 26.2mm |
| Mount Type | PCB |
| Housing Material | Polyamide |
| Series | CK |
| Maximum Operating Temperature | 85°C |
| Number of Positions | 6 |
| Minimum Operating Temperature | -30°C |
| Terminal type | PCB Terminal |
| Maximum dc Voltage | 24V dc |
| Number of Poles | 2 |
| Standards/Approvals | RoHS |
| Switch Operation | Rotary |
| Actuator Colour | Black |
| Switch Contact Current | 1A |
| Mechanical Life | 10000Cycles |
| Maximum AC Voltage | 24V ac |
| Angle of Throw | 90 ° |
Key Features
- The switch is rated for 1A contact current and supports rotary operation.
- It has 6 distinct positions with a 90° angle of throw, providing precise control.
- Constructed from durable polyamide housing for robust performance.
- Designed for PCB terminal mounting with a moulded 27.5 mm diameter and a compact depth of 27.5 mm.
- Offers IP65 sealing for front panel protection ensuring resistance to dust and water ingress.
- Operates efficiently within -30°C to 85°C temperature range.
- Mechanical life expectancy of 10,000 cycles ensures reliable long-term usage.
- Features reduced axial shaft play and dampened indexing for smooth tactile feel.
Product Description
Lorlin CKF1055 is a high-quality 6 position rotary switch designed for signal switching applications, featuring a 1A contact current rating and PCB terminal mounting. It belongs to the CK series, renowned for compact dimensions and reliability.
The switch offers an IP65 sealed front panel, protecting against dust and water ingress, suitable for industrial and automation electronics environments. Its polyamide housing adds durability, and the black actuator enhances visibility and ergonomics.
With a 90° angle of throw and dampened indexing, the switch ensures precise and smooth switching action. The device is capable of operation between -30°C and 85°C, enduring harsh temperature conditions common in industrial settings.
The CKF1055 switch supports up to 2 poles, accommodating multi-circuit switching requirements and supports both 24V AC and 24V DC applications. Mechanical lifespan of 10,000 cycles assures reliable performance over extended periods.
This product is ideal for use in industrial control panels, instrumentation, signal routing, and automation systems within commercial and manufacturing facilities. The switch features front panel sealing rated at IP65 for enhanced environmental protection.
The compact 27.5 mm diameter and 27.5 mm depth enable integration into space-constrained designs. Manufactured in the United Kingdom, the product complies fully with RoHS directives, ensuring environmentally responsible production.
Available with solder or PCB terminals to suit various mounting approaches. DesignSpark software support allows easy integration with PCB design and 3D mechanical models. Explore more high-quality Rotary Switches in the Electronics & Electricals category on EnvMart for your industrial and automation solution needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The CKF1055 rotary switch is rated for a contact current of 1A.
This model features 6 distinct positions with a 90° angle of throw for precise control.
The switch has an IP65 rating, providing protection against dust and water ingress.
The switch has a diameter of 27.5 mm and a depth of 27.5 mm, making it compact for various applications.
It operates efficiently within a temperature range of -30°C to 85°C.
This rotary switch is designed for PCB terminal mounting.
The housing is constructed from durable polyamide, providing robust performance.
The mechanical life expectancy of the CKF1055 is rated at 10,000 cycles.
This model supports a maximum AC voltage of 24V and a maximum DC voltage of 24V.
Yes, it complies with RoHS directives, ensuring environmentally responsible production.
This switch is ideal for use in industrial control panels, instrumentation, signal routing, and automation systems.
This model supports up to 2 poles, accommodating multi-circuit switching requirements.
