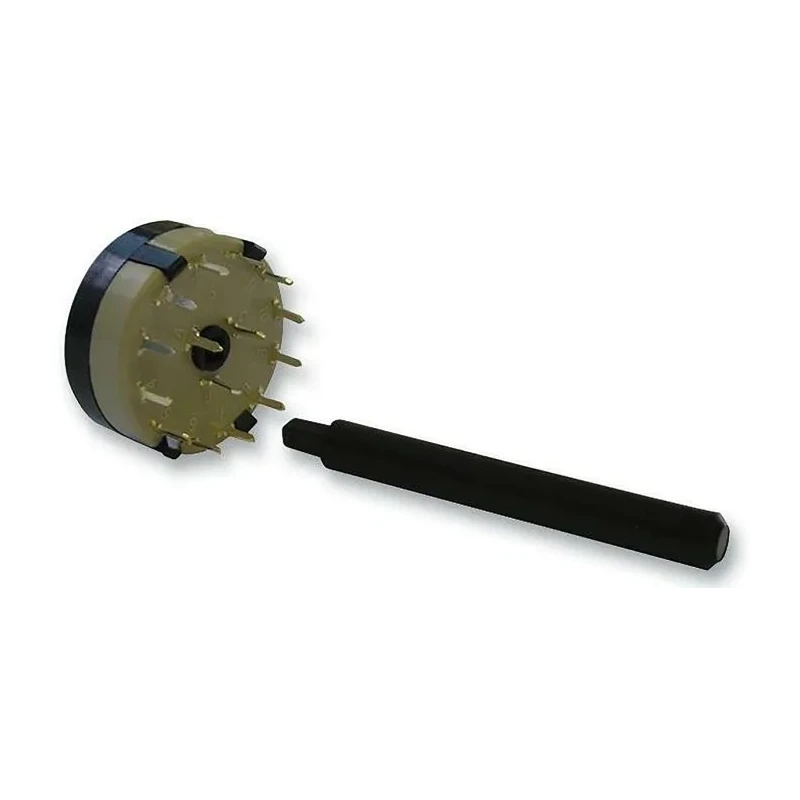

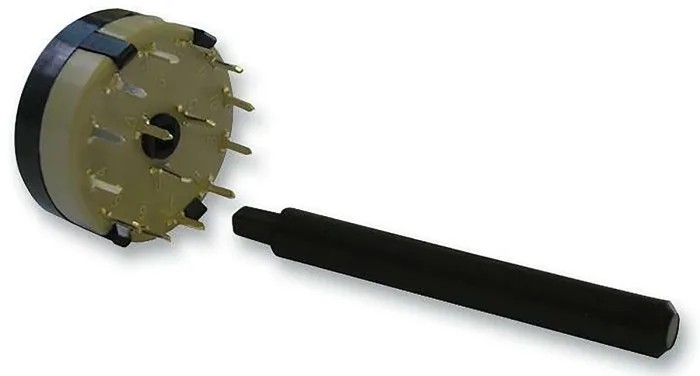

Lorlin 3 Position Rotary Switch 1A, Tin Plated Silver Housing, PCB Mount, Solder Terminals CK3090
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Lorlin |
| Model | CK3090 |
| Mount Type | PCB |
| Housing Material | Tin Plated Silver |
| Series | CK |
| Maximum Operating Temperature | 85°C |
| Number of Positions | 3 |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Maximum dc Voltage | 24V dc |
| Standards/Approvals | RoHS |
| Switch Operation | Rotary |
| Switch Contact Current | 1A |
| Mechanical Life | 10000Operations |
| Maximum AC Voltage | 24V ac |
Key Features
- Switch contact current rated at 1 ampere for moderate power applications.
- Operates with rotary switch action over 3 discrete positions.
- Compact design suitable for PCB mounting using solder terminal type.
- Maximum operating voltage of 24 volts AC and 24 volts DC ensuring compatibility with low voltage circuits.
- Durable mechanical life rated at 10,000 operations for extended reliability.
- Operating temperature range from -30°C to 85°C, suitable for varied environmental conditions.
- Constructed with RoHS compliant tin plated silver housing for corrosion resistance.
- Non-illuminated switch type optimized for signal switching without indicator lights.
Product Description
Lorlin CK3090 is a 3 position rotary switch designed for compact PCB mounting applications. It features a robust tin plated silver housing and operates reliably with 1 amp switch contact current capacity.
This rotary switch supports discrete switching across three positions using a rotary action mechanism. It is fitted with solder terminals to ensure secure and durable PCB connectivity.
The device is rated for a maximum AC and DC operating voltage of 24 volts, making it ideal for low voltage electrical and electronic applications in industrial and commercial equipment.
The switch withstands operating temperatures ranging from -30°C up to 85°C, ensuring dependable performance in harsh environments. It is RoHS compliant, meeting environmental and safety standards by utilizing lead-free materials.
The mechanical life of 10,000 operations guarantees long service life for assembly line automation, control panels, or instrumentation where frequent switching is required. Switch contact current rated at 1 ampere. Rotary operation with 3 positions.
Tinned silver housing material for corrosion resistance. Suitable for PCB mounting via solder terminals. Max voltage: 24V AC/DC. Minimum operating temperature: -30°C. Maximum operating temperature: 85°C. Compliant with RoHS environmental standards.
Mechanical life rated for 10,000 operations. Non-illuminated for signal switching applications. Manufactured in the United Kingdom.
This switch is suitable for use in electrical automation systems, industrial machinery control panels, electronic devices requiring rotary selection switches, and other applications demanding reliable low voltage switching.
Browse other Rotary Switches and electrical components at EnvMart for a comprehensive selection of industrial-grade products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage for this model is 24 volts AC and 24 volts DC, making it suitable for low voltage circuits.
This rotary switch has a switch contact current rating of 1 ampere, suitable for moderate power applications.
It operates with a rotary action mechanism over 3 discrete positions.
The mechanical life of this switch is rated for 10,000 operations, ensuring extended reliability for frequent use.
It can operate within a temperature range of -30°C to 85°C, making it suitable for varied environmental conditions.
This rotary switch is fitted with solder terminals for secure and durable PCB connectivity.
Yes, the CK3090 is RoHS compliant, utilizing lead-free materials to meet environmental and safety standards.
The housing is constructed from tin plated silver, which provides corrosion resistance.
This switch is manufactured in the United Kingdom.
It is suitable for use in electrical automation systems, industrial machinery control panels, and electronic devices requiring rotary selection switches.
The switch operates using a rotary mechanism, allowing for discrete switching across its three positions.
This model belongs to the CK series of rotary switches.
