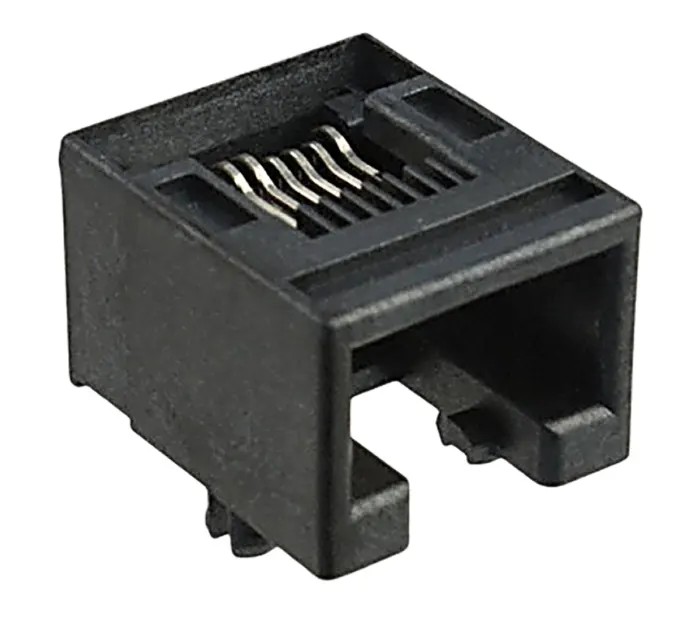

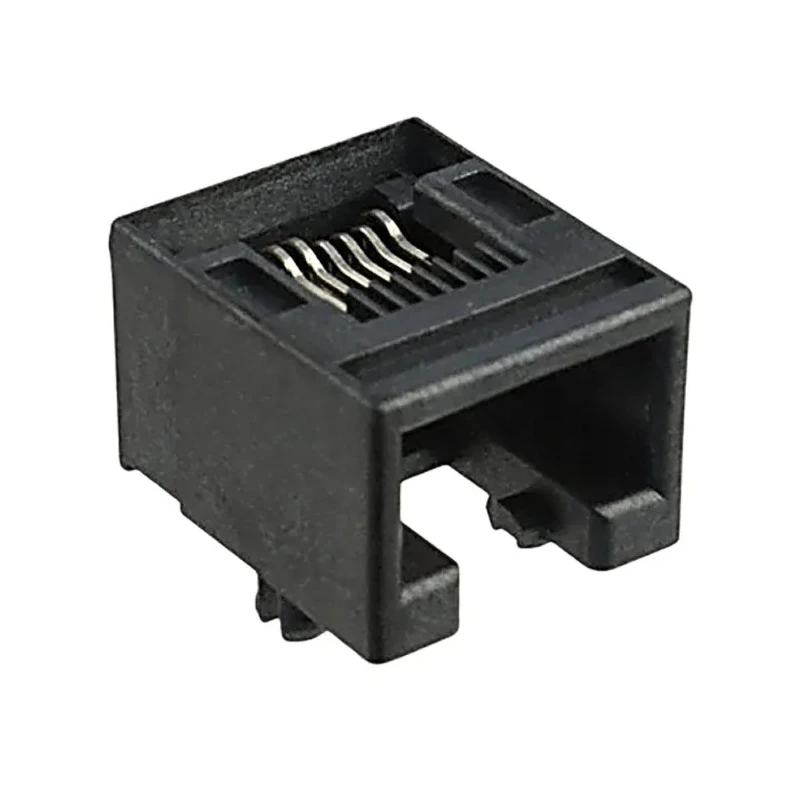

Molex 85503 Series RJ45 Connector Female Through Hole Cat5e Unshielded Right Angle 2 Port 1 Way RJ45
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Right Angle |
| Length | 18.1mm |
| Model | RJ45 |
| Depth | 11.5mm |
| Number Of Ways | 1 |
| Width | 15.24mm |
| Mount Type | Through Hole |
| Contact Material | Phosphor Bronze |
| Series | 85503 |
| Number Of Ports | 2 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | LANs |
| Shield Type | Unshielded |
| Contact Plating | Gold over Nickel |
| Connector Gender | Female |
| LAN Category | Cat5e |
| Ethernet Connector Type | RJ45 |
Key Features
- Features two ports designed for Cat5e Ethernet connectivity.
- Female connector type with right angle orientation suitable for side entry PCB mounting.
- Through hole mount ensures strong mechanical attachment to PCBs.
- Unshielded design with gold over nickel plated phosphor bronze contacts ensures reliable signal transmission.
- Operates reliably within a temperature range of -40°C to 85°C.
- Supports up to 2,500 mating cycles ensuring long service life.
- Maximum voltage rating of 125V DC for demanding electrical applications.
- Solder termination type for secure electrical connection.
Product Description
Molex RJ45 RJ45 Connector female type, model 85503 Series 85503-5001, supports Cat5e unshielded Ethernet connections with two ports arranged in a right angle, through hole mounting configuration. It provides robust and reliable network interface for PCB applications capable of handling a maximum current of 1.5A per contact.
This connector features phosphor bronze contacts plated with gold over nickel to ensure excellent conductivity and corrosion resistance. The unit is engineered for harsh environments with an operating temperature range from -40°C to 85°C, ensuring stable performance across diverse industrial and commercial applications.
The through-hole mounting offers sturdy mechanical stability on printed circuit boards, ideal for networking components in domestic LANs, office buildings, and temporary workstations. Rated for a maximum voltage of 125V DC, this RJ45 connector handles typical Ethernet power and data signals efficiently.
Compact size dimensions of 18.1mm length, 15.24mm width, and 11.5mm depth make it suitable for high-density PCB layouts. Designed and manufactured to a durable standard supporting up to 2,500 mating cycles, it ensures long-term reliability in various electronic assemblies.
Two Cat5e Ethernet ports for reliable data transmission. Female connector with right angle orientation for side-entry PCB mounting. Gold over nickel plated phosphor bronze contacts for dependable connectivity. Through hole mounting type for secure PCB attachment.
Operating temperature range from -40°C to 85°C for tough conditions. Maximum voltage rating of 125V DC supports industrial usage. Supports 2,500 mating cycles to ensure durability. Solder termination type for solid electrical connections.
Compact form factor with precise dimensions for space management. Suitable applications include domestic LANs, office networks, and temporary workstation setups. Explore our comprehensive catalog of Molex Connectors and other networking solutions at EnvMart to find components tailored for your industrial and commercial networking needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this RJ45 connector is 85°C.
This model features two ports designed for Cat5e Ethernet connectivity.
It uses a solder termination type for secure electrical connections.
The connector has a right angle orientation suitable for side entry PCB mounting.
The depth of this connector is 11.5mm.
The contacts are made of phosphor bronze and are plated with gold over nickel.
It has a maximum voltage rating of 125V DC.
The width of this connector is 15.24mm.
This connector supports up to 2,500 mating cycles, ensuring long service life.
The minimum operating temperature for this connector is -40°C.
It is suitable for LANs, including domestic LANs and office networks.
The dimensions are 18.1mm in length, 15.24mm in width, and 11.5mm in depth.
