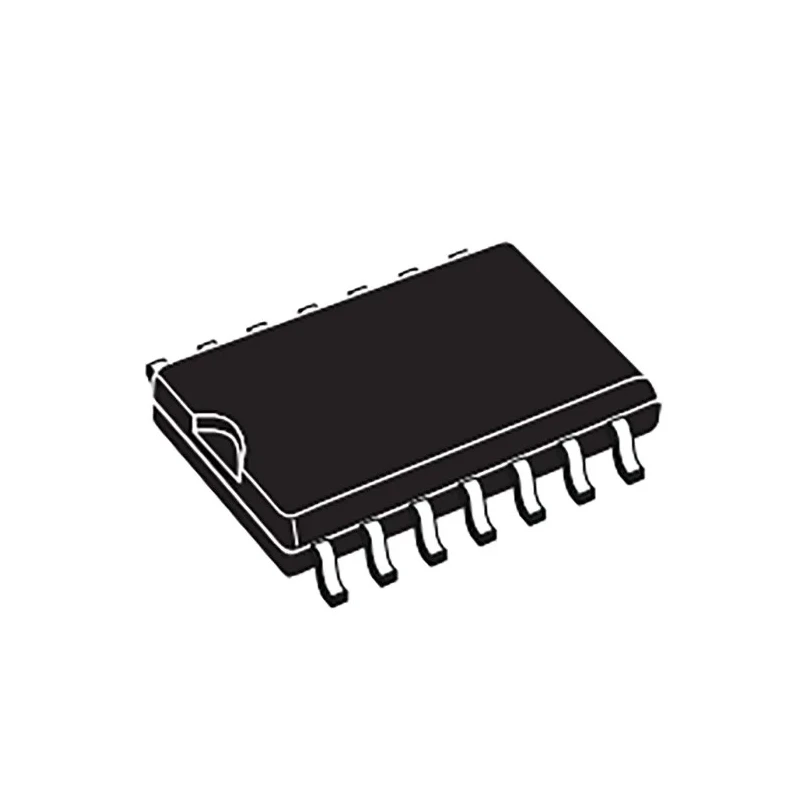

STMicroelectronics Operational Amplifier Quad 800 kHz Gain Bandwidth, 14-Pin Surface Mount SO Package 5.5V TS914IDT
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.65mm |
| Length | 8.75mm |
| Model | TS914IDT |
| Width | 4mm |
| Mount Type | Surface |
| Series | TS914 |
| Output Current | 40mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 800kHz |
| Input Bias Current | 300 pA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 0.5V/μs |
| Low input offset voltage | 5 mV max. (A grade) |
| Input Offset Current | 200 pA |
| Extremely low input bias current | 1 pA typical |
Key Features
- Rail-to-rail CMOS operation suitable for single or dual supply voltages from 2.7 V to 16 V.
- Low supply current of 200 μA per amplifier at 3 V supply voltage.
- Extremely low input bias current, typically 1 pA, minimizing offset errors.
- Maximum output current capability of 40 mA with internal current limiting.
- Input offset voltage maximum of 5 mV (A grade) ensures precise signal amplification.
- Wide operating temperature range from -40°C to 125°C for industrial applications.
- Compact 14-pin SO package with 8.75 mm length, 4 mm width, and 1.65 mm height footprint.
- Compliance with RoHS standards and AEC-Q100 automotive qualification.
Product Description
STMicroelectronics TS914IDT is a quad-channel operational amplifier designed for high performance in a compact 14-pin surface mount SO package. It provides an 800 kHz gain bandwidth product supporting rail-to-rail input and output voltage ranges with exceptionally low input bias and offset currents.
The device operates on single or dual supply voltages from a minimum of 2.7 V up to 5.5 V nominally, and supports an extended range up to 16 V. It maintains low supply current consumption of about 200 μA per amplifier at 3 V supply, making it ideal for low power and portable electronics applications.
Its output stage is capable of sourcing and sinking up to 40 mA, protected by an internal current limit circuit. The input voltage range includes both supply rails, allowing for maximum dynamic range and signal integrity in mixed-signal environments.
The TS914IDT is designed to withstand harsh industrial conditions with an operating temperature range from -40°C to 125°C and meets automotive AEC-Q100 standards for reliability.
The package size measures 8.75 mm in length, 4 mm in width, and has a height of 1.65 mm, providing a compact solution for dense PCB layouts. This product is RoHS compliant and supports sustainability goals.
Rail-to-rail input and output voltage operation for full signal range. Low input bias current typically 1 pA reduces measurement errors. Input offset voltage maximum 5 mV (A grade) ensures signal accuracy. Low supply current of 200 μA per amplifier promotes energy efficiency.
Output current up to 40 mA with internal current limiting protects the device. Wide operating temperature range supports automotive and industrial environments. Compact 14-pin SO surface mount package for modern electronics design.
Complies with RoHS and AEC-Q100 automotive standards. Includes SPICE macromodel facilitating circuit simulation and design.
This operational amplifier is ideal for applications in industrial instrumentation, automotive electronics, data acquisition systems, signal conditioning, and general-purpose amplification tasks. Its low noise, precision offset, and wide bandwidth make it suitable for laboratory measurement devices, medical instruments, and consumer electronics.
Explore more Operational Amplifiers and electronic components at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 800 kHz, allowing for effective signal amplification in various applications.
It operates on single or dual supply voltages ranging from a minimum of 2.7 V up to 16 V, with a nominal maximum of 5.5 V.
The TS914IDT can source and sink up to 40 mA, with internal current limiting to protect the device.
This operational amplifier comes in a compact 14-pin SO package with dimensions of 8.75 mm in length, 4 mm in width, and 1.65 mm in height.
The maximum input offset voltage for the A grade of this model is 5 mV, ensuring accurate signal amplification.
The typical input bias current is 1 pA, which helps minimize offset errors in signal processing.
It has a wide operating temperature range from -40°C to 125°C, making it suitable for industrial applications.
Yes, it is RoHS compliant and meets AEC-Q100 automotive standards for reliability.
This operational amplifier is designed for surface mounting, which is ideal for modern electronics design.
It is suitable for applications in industrial instrumentation, automotive electronics, data acquisition systems, and signal conditioning.
The slew rate for this operational amplifier is 0.5 V/μs, allowing for rapid response to changing signals.
It includes a SPICE macromodel, facilitating circuit simulation and design for users.
