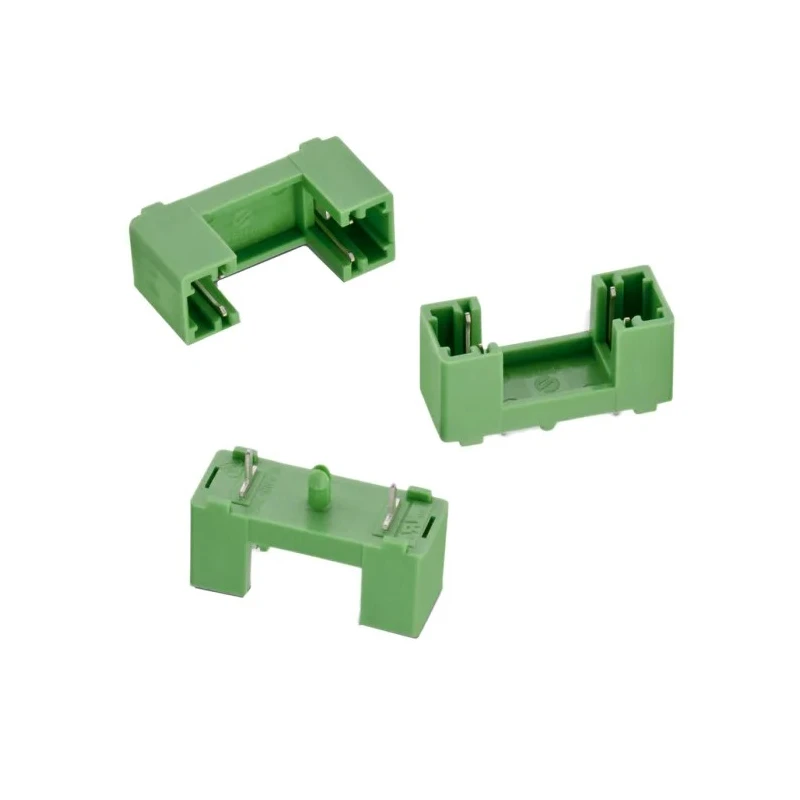

Wurth Elektronik PCB Mount Fuse Holder for 5 x 20 mm Fuses 10A 250V AC 696105003002

Wurth Elektronik 696105003002 is a high-quality PCB Mount Fuse Holder engineered for use with 5 x 20 mm fuses, providing reliable circuit protection at 10A current rating and 250V AC voltage. The fuse holder features a polyamide body material that ensures excellent electrical insulation and durability in various industrial and electronic applications.

Designed for easy integration onto printed circuit boards (PCBs), this fuse holder operates effectively within an ambient temperature range of 30°C to 120°C. The contact terminals are made from copper alloy with a matt tin plating over nickel, which guarantees outstanding electrical conductivity and corrosion resistance. Terminals use a solder type connection for a robust and secure installation onto PCBs.

This product complies with key international standards including cULus, RoHS, UL94 V-0 fire safety rating, UL, and VDE certifications, ensuring safe and dependable operation in various environments. It belongs to the Wurth Elektronik PTF/75 series, specifically designed for board mount circuit protection, making it ideal for industrial, automation, and electrical applications.

The fuse holder is compatible exclusively with 5 x 20 mm fuses, a common fuse size used across multiple electronic devices and equipment. Its polyamide thermoplastic body withstands mechanical stress and high temperatures, providing longevity and reliability in demanding conditions.

The fuse holder body is constructed of polyamide for high insulation and durability. Compatible exclusively with 5 x 20 mm fuses for secure circuit protection. Designed to sustain minimum operating temperature of 30°C and maximum temperature of 120°C.

Copper alloy contacts with matt tin plating over nickel enhance conductivity and corrosion resistance. Solder type terminal connection ensures stable and secure mounting on PCBs. Meets multiple safety and industry standards including cULus, RoHS, UL94 V-0, UL, and VDE.

Part of the Wurth Elektronik PTF/75 series specialized in PCB fuse holders.

This PCB mount fuse holder is widely suited for electronics manufacturing, industrial control panels, automation systems, and equipment requiring reliable fuse integration. Its design facilitates convenient assembly and maintenance of fuses in electronic circuits, ensuring effective protection against overcurrent.
