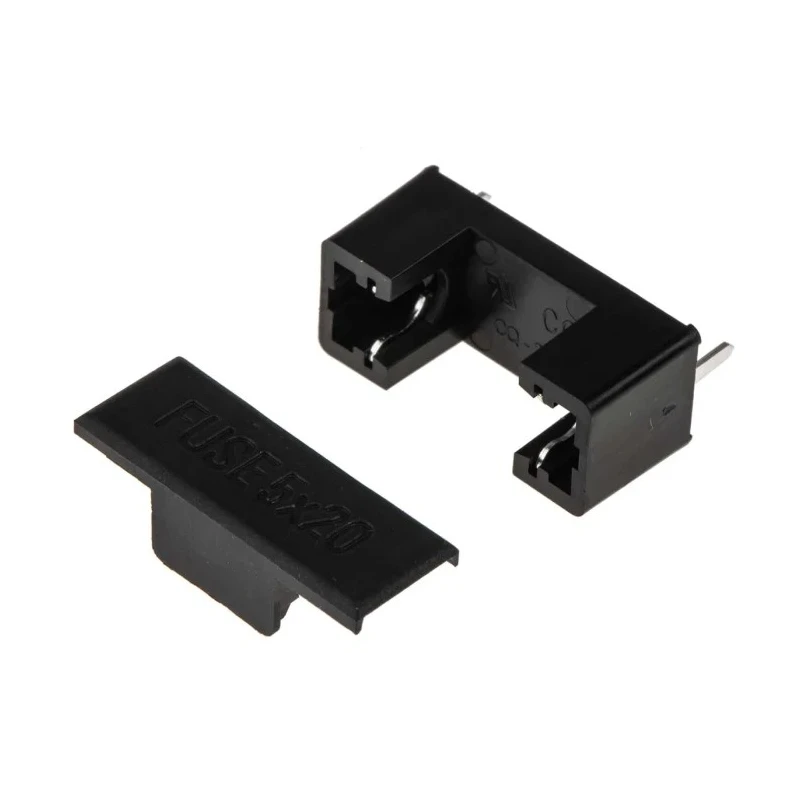

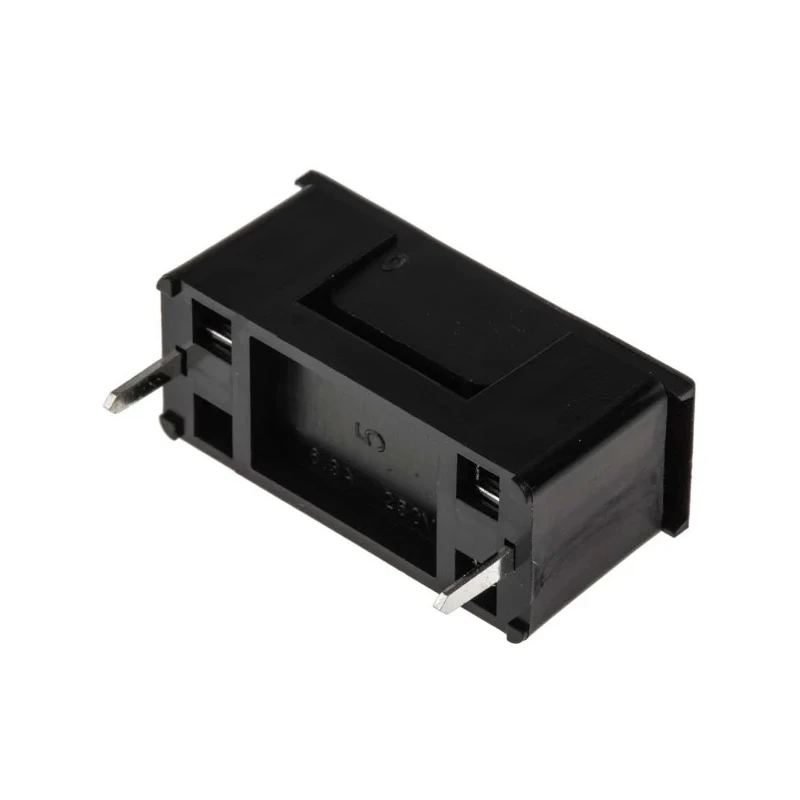

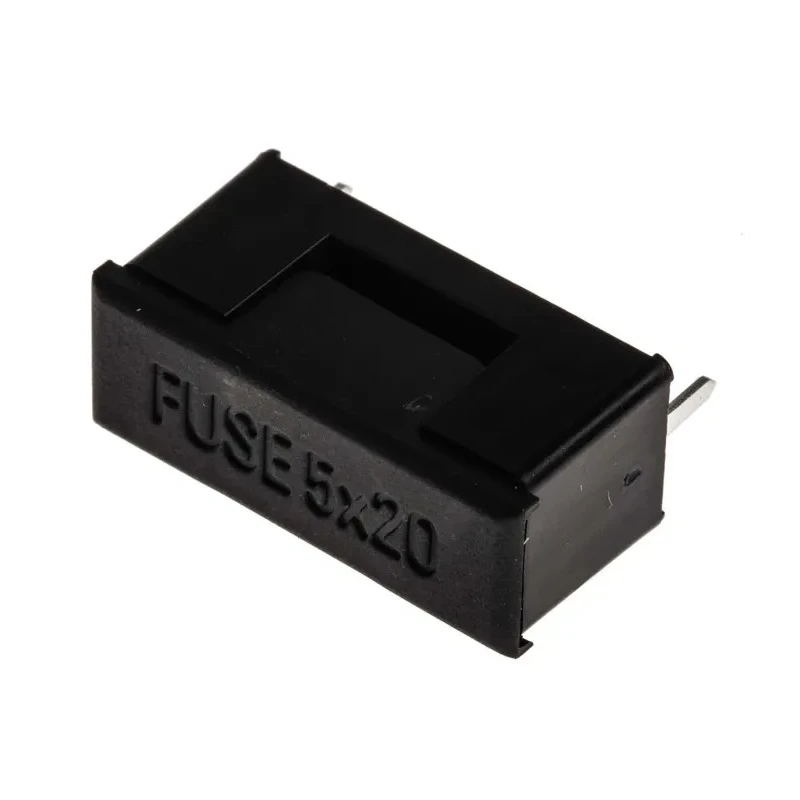

RS PRO 6.3A PCB Mount Fuse Holder for 5.2 x 20 mm Fuses, 250V AC 563-756

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 6.3A PCB Mount Fuse Holder for 5.2 x 20 mm Fuses, 250V AC 563-756

Name: RS PRO 6.3A PCB Mount Fuse Holder for 5.2 x 20 mm Fuses, 250V AC 563-756
Brand: RS PRO
SKU: 125699
Price: 1.27 USD
Availability: InStock



Category Fuse Holders & Accessories Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Body Material	Polyamide 66
Model	563-756
Contact Material	Tin Plated Brass
Maximum Operating Temperature	30°C
Minimum Operating Temperature	15°C
Terminal type	Solder
Standards/Approvals	UL 94 V-0
Compatible Fuse Size	5.2 x 20 mm
Semi enclosed PCB fuse holder,5x20mmBrand	NEUTRAL
PCB FUSEHOLDER 20MM FUSESBrand	RS PRO
HTC-15M PCB mount fuse holder, 5x20mmBrand	Cooper Bussmann
Littelfuse 6.3A PCB Mount Fuse Holder for 5 x 20 mm, 250V acBrand	Littelfuse

Key Features

Constructed from durable Polyamide 66 material ensuring electrical insulation and mechanical robustness.
Compatible with standard 5.2 x 20 mm fuses, suitable for various PCB applications.
Features tin plated brass contacts for reliable electrical connectivity and corrosion resistance.
Equipped with solder terminal type for secure mounting on printed circuit boards.
Operates effectively within a temperature range of -40°C to +100°C for versatile environmental conditions.
Low profile semi-enclosed design reduces space requirements on PCBs and provides mechanical protection for the fuse.
Pin pitch measures 22 mm with hole diameters ranging from 1.22 mm to 1.5 mm for compatible mounting screws or pins.
Complies with UL 94 V-0 flammability standard ensuring safety in electrical applications.

Product Description

RS PRO model 563-756 is a high-quality PCB mount fuse holder designed to accommodate 5.2 x 20 mm fuses with a current rating of 6.3A and a voltage rating of 250V AC. This semi-enclosed fuse holder is made from Polyamide 66, providing excellent electrical insulation and mechanical strength essential for circuit protection applications.

The solder terminal type along with tin plated brass contacts deliver reliable electrical connections with protection against corrosion and wear, ideal for long-term reliability in industrial and commercial electronics.

The fuse holder operates within a wide temperature range of -40°C to +100°C, making it suitable for diverse environmental conditions including demanding industrial settings. Its low profile design allows for efficient use of PCB space, while the pin pitch of 22 mm and mounting hole diameters (1.22 mm to 1.5 mm) provide compatibility with common mounting hardware.

Compliance with UL 94 V-0 standard confirms the material's flame retardant properties, ensuring safety compliance in electrical equipment manufacturing. This fuse holder is widely applicable in electronics manufacturing, automation, industrial controls, and other PCB-based electrical systems requiring reliable fuse protection.

Constructed from Polyamide 66 thermoplastic for durability. Tin plated brass contacts ensure excellent conductivity. Suitable for 5.2 x 20 mm fuse sizes. Designed for solder terminal PCB mounting. Operates reliably between -40°C and +100°C.

Low-profile semi-enclosed design minimizes PCB footprint. Pin pitch of 22 mm with mounting hole diameters 1.22-1.5 mm. Meets UL 94 V-0 flammability standard. Manufactured in Taiwan, Province Of China.

This RS PRO fuse holder is recommended for industrial, commercial electronics assembly, and PCB applications requiring secure and reliable fuse installation. Explore more RS PRO electrical components and related Fuse Holders & Accessories on EnvMart for comprehensive circuit protection solutions.
