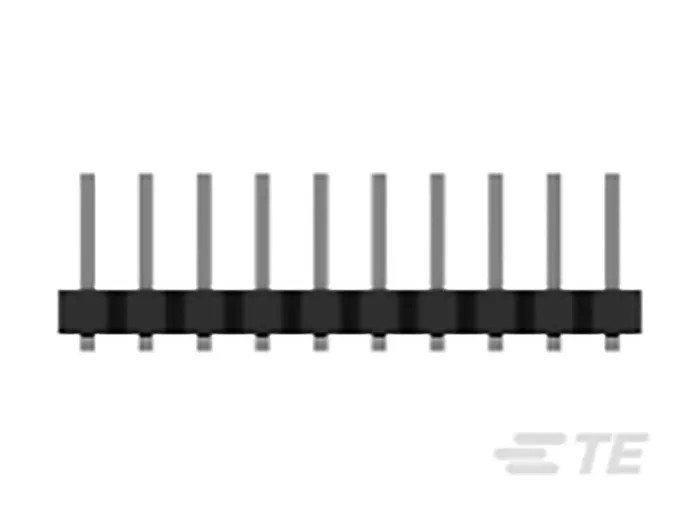

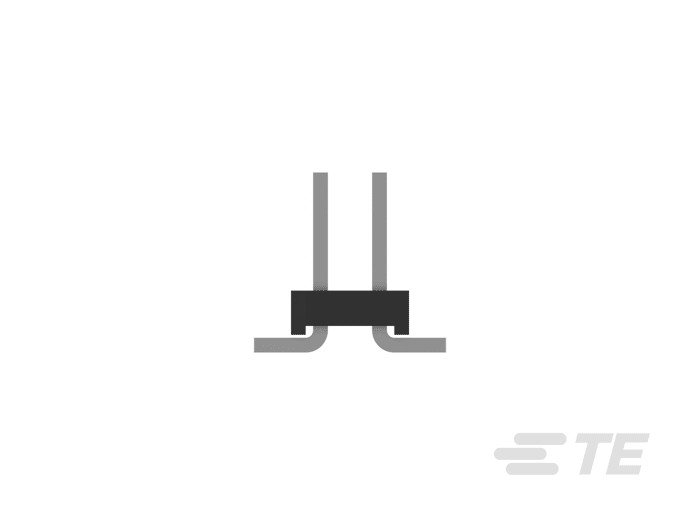

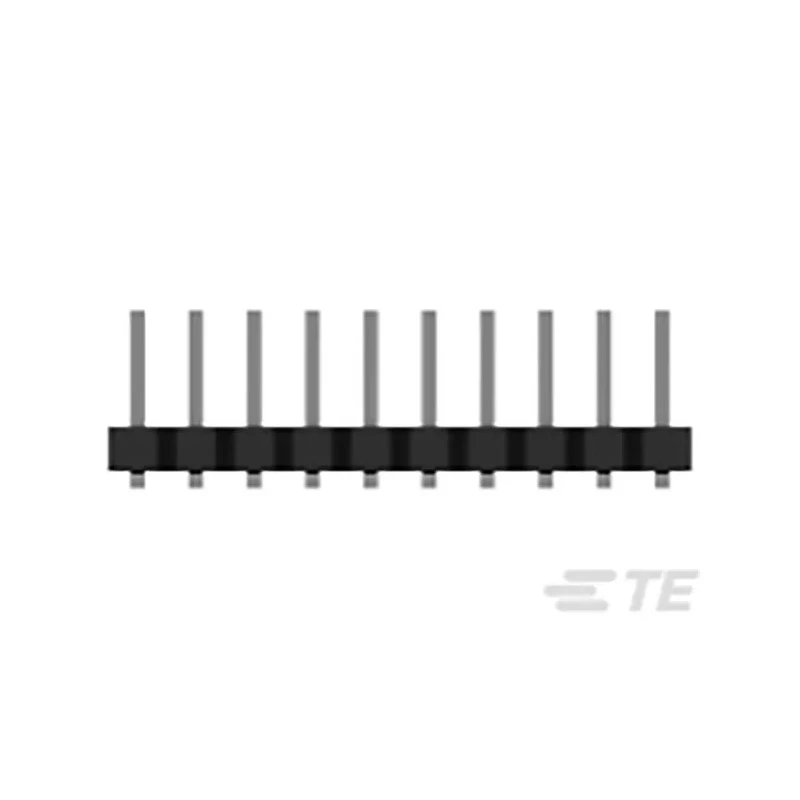

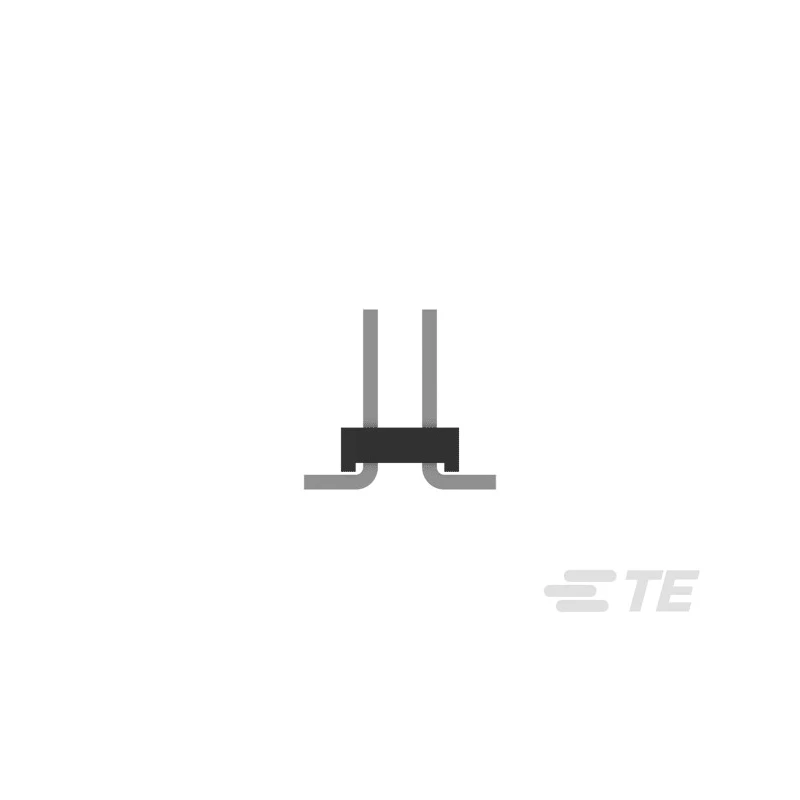

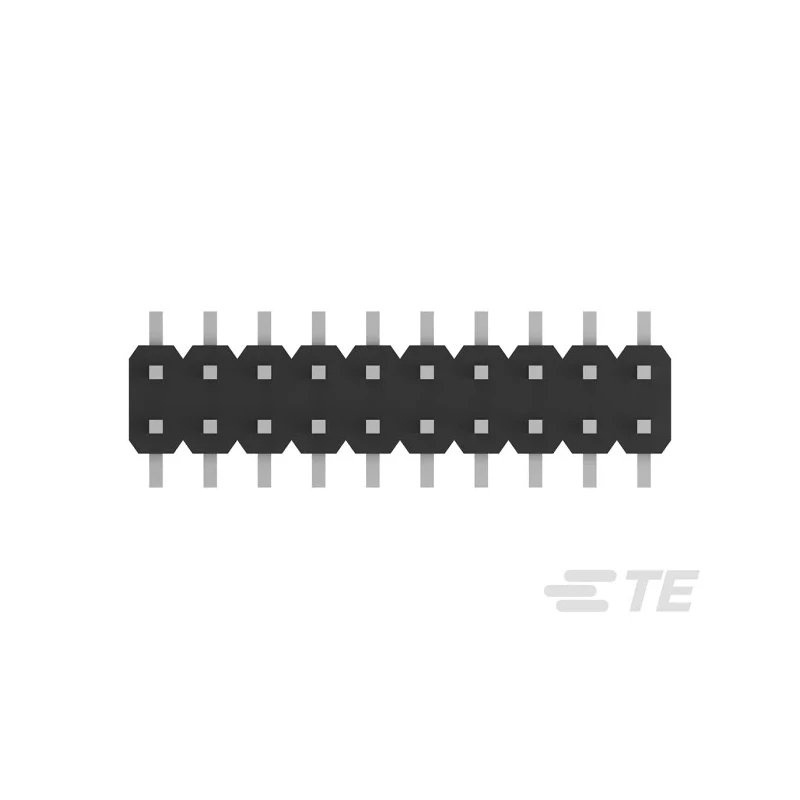

TE Connectivity AMPMODU Series Straight Surface Pin Header, 20 Contacts, 2 mm Pitch, 2 Row, Unshrouded, Brass 1-2842144-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | AMPMODU |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Environmental | halogen free / low halogen |
| Pitch | 2mm |
| Contact Plating | Nickel |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Centerline | 2.00mm [0.079"] |
Key Features
- This pin header has 20 contacts with 2 mm pitch in 2 rows.
- Brass male contacts are plated with nickel for durability.
- Polyamide housing is halogen-free and designed for industrial use.
- Surface mount, straight orientation connector supports easy PCB integration.
- Rated for 2A current and 125V voltage for various electronic applications.
- Operates reliably between -65°C and 105°C temperature range.
- Compact design saves 38% PCB space compared to 2.54 mm pitch headers.
- Supports board stacking with multiple receptacle configurations.
Product Description
TE Connectivity 1-2842144-0 AMPMODU Series Straight Surface Pin Header is a high-quality 20-contact connector designed for board-to-board applications with a compact 2 mm pitch and dual-row, unshrouded configuration. It features brass male contacts plated with nickel, ensuring strong conductivity and corrosion resistance. The housing is polyamide, which offers durability and resistance under industrial operating conditions ranging from -65°C to 105°C.
This surface mount pin header supports a current of 2A and voltage up to 125V, suitable for electronic components in industrial controls, servo drives, instrumentation, and building automation systems. Its halogen-free and low-halogen material composition promotes environmentally safe design practices.
The connector saves PCB space by occupying 38% less area compared to standard 2.54 mm pitch headers, while sustaining electrical reliability with dual beam receptacle contacts. It integrates with top- and dual-entry vertical and horizontal receptacle assemblies for versatile board stacking in manufacturing and automation applications.
Available in various packaging formats including tube, tape, and reel, it suits automated surface-mount and through-hole reflow manufacturing processes for PCB thicknesses between 1.6 mm and 2.4 mm. The connector's unshrouded design allows ease of installation and inspection.
20 contacts with 2 mm pitch and 2 rows. Male brass contacts plated with nickel. Polyamide housing with halogen-free material. Surface mount type straight orientation connector. Rated for 2A current and 125V voltage. Operating temperature range: -65°C to 105°C.
Compact size saves PCB space by 38% compared to 2.54 mm headers. Supports board stacking via multiple receptacle configurations. Compatible with automated manufacturing processes. Available in tube, tape, and reel packaging.
This TE Connectivity pin header is ideally suited for industrial machinery, laboratory instrumentation, automated manufacturing, and electronic assembly applications requiring reliable board-to-board connectivity with tight pitch and high contact count. Browse the EnvMart Electronics & Electricals category to explore more connectors and PCB components designed to enhance your system performance.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header is rated for a current of 2A and a voltage of up to 125V.
It features a 2 mm pitch and has 20 contacts arranged in 2 rows.
The contacts are made of brass and are plated with nickel, while the housing is constructed from polyamide, which is halogen-free.
It operates reliably within a temperature range of -65°C to 105°C.
This connector saves 38% PCB space compared to standard 2.54 mm pitch headers due to its compact design.
It is a surface mount type connector, designed for easy integration onto PCBs.
Yes, it is compatible with automated surface-mount and through-hole reflow manufacturing processes.
It utilizes a board-to-board connector system, allowing for versatile applications.
The termination type for this model is solder, which is standard for PCB connections.
It is available in various packaging formats including tube, tape, and reel.
The housing material is halogen-free and low-halogen, promoting environmentally safe design practices.
Yes, it supports board stacking with multiple receptacle configurations, enhancing its versatility in applications.
