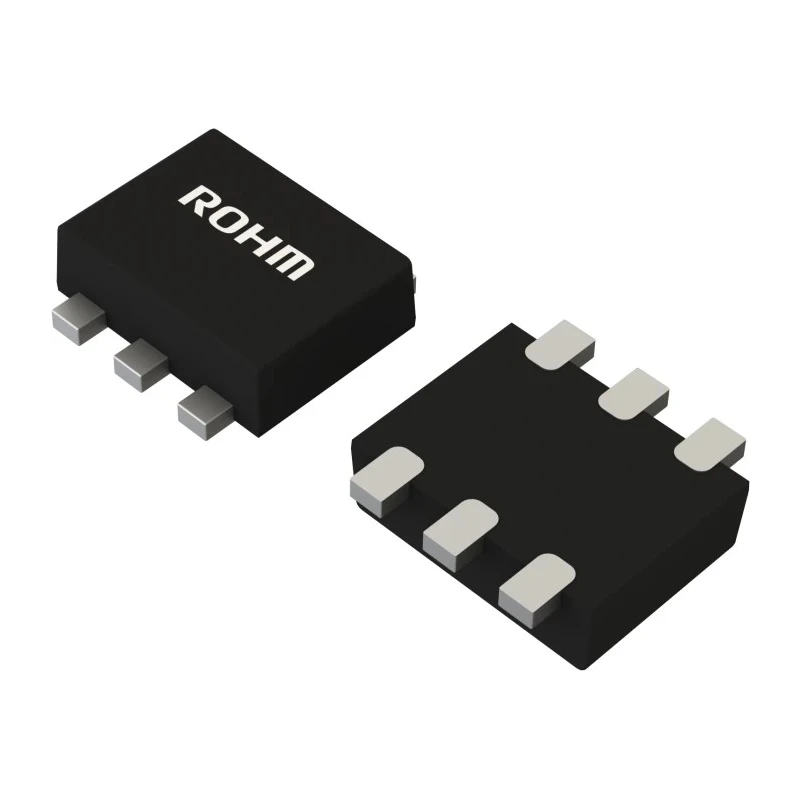

ROHM Digital Transistor Dual NPN + NPN 100 mA 50 V SOT-563 6-Pin EMH52T2R

ROHM EMH52T2R is a dual digital transistor featuring two NPN transistors integrated into a compact SOT-563 surface mount 6-pin package. It supports a maximum collector emitter voltage of 50 V and a maximum continuous collector current of 100 mA. With a power dissipation capacity of 150 mW and a minimum DC current gain of 80, this transistor delivers efficient performance in demanding electronic circuits.

This dual digital transistor provides independent transistor elements which eliminate interface issues and reduce mounting cost and PCB area usage effectively. It is designed for excellent durability, operating reliably up to a maximum temperature of 150°C, thus suitable for industrial automation, consumer electronics, and other semiconductor applications.

The physical dimensions of the package are compact and precise at 1.7 mm length by 1.7 mm width and 0.55 mm height, making it suitable for high-density circuit board designs requiring space optimization.

Compact SOT-563 6-pin surface mount package ensures easy PCB integration. Dual NPN transistor configuration enhances functional versatility in circuit design. Maximum collector emitter voltage of 50 V provides robustness for diverse applications.

100 mA collector current allows operation in sensitive electronic devices. 150 mW power dissipation supports stable electrical performance. Minimum DC current gain (hFE) of 80 ensures reliable amplification characteristics.

Operating temperature range up to 150°C for high reliability in harsh environments.

This ROHM EMH52T2R Digital Transistor series is widely applied in industrial electronics, signal switching, amplification, and other electronic component assemblies requiring dual transistor functionality in a minimal footprint. The product supports enhanced production efficiency by fitting compactly on printed circuit boards and providing consistent electrical characteristics essential for modern semiconductor devices.
