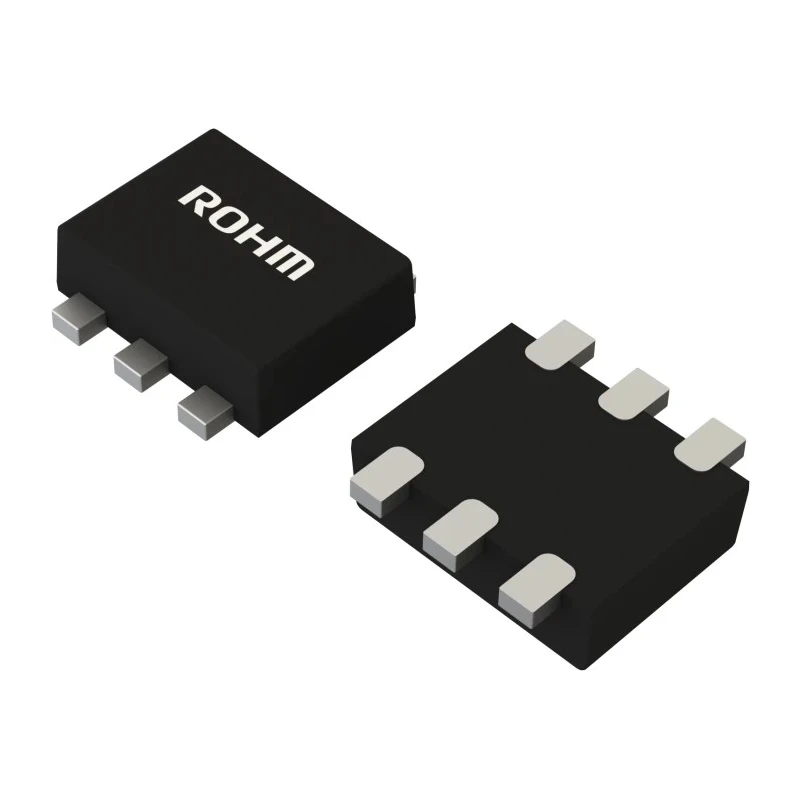

ROHM Digital Transistor 50 V NPN + NPN 100 mA Surface Mount SOT-563, 6-Pin EMH52T2R

The ROHM EMH52T2R is a digital transistor featuring a dual NPN + NPN transistor configuration housed in a compact surface mount SOT-563 6-pin package. Designed for high efficiency and space-saving integration, it supports a maximum collector-emitter voltage of 50 V and a collector current up to 100 mA.

This transistor delivers reliable operation with a power dissipation rating of 150 mW and a minimum DC current gain (hFE) of 80. The independent transistor elements eliminate interface issues and halve mounting cost and area, contributing to efficient circuit designs.

Its compact physical dimensions of 1.7 mm by 1.7 mm by 0.55 mm support high-density PCB layouts. The device operates reliably within a temperature range up to 150°C and has a broad storage temperature tolerance from -55°C to 150°C, ensuring durability across various environments.

The EMH52T2R is considered equivalent to the DTC044E transistor, providing design flexibility and easy integration into existing applications such as power supply circuits, digital switching, signal amplification, and other semiconductor-based electronic devices.

Maximum Collector Emitter Voltage: 50 V. Maximum Collector Current: 100 mA. Maximum Power Dissipation: 150 mW. Transistor Configuration: Dual NPN + NPN. Package: Surface mount SOT-563, 6-pin. Minimum DC current gain (hFE): 80.

Operating Temperature: Up to 150°C. Physical Dimensions: 1.7 mm x 1.7 mm x 0.55 mm.

This component fits industrial, electronic manufacturing, laboratory, and digital circuit automation applications effectively. The ROHM EMH52T2R digital transistor provides a reliable and compact solution for modern semiconductor circuit designs.
