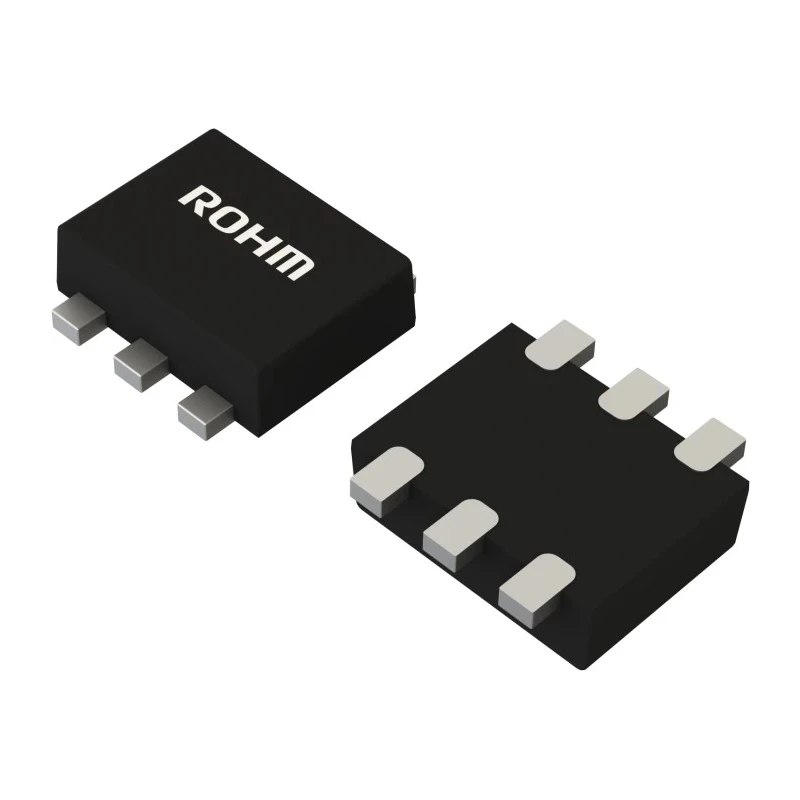

ROHM Digital Transistor Dual NPN + NPN 100 mA 50 V Surface Mount SOT-563 6-Pin EMH52T2R

Free Delivery in India | Lowest Global Shipping Charges

ROHM Digital Transistor Dual NPN + NPN 100 mA 50 V Surface Mount SOT-563 6-Pin EMH52T2R

Name: ROHM Digital Transistor Dual NPN + NPN 100 mA 50 V Surface Mount SOT-563 6-Pin EMH52T2R
Brand: ROHM
SKU: 266904
Price: 0.09 USD
Availability: InStock



Category Digital Transistor Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	0.55mm
Length	1.7mm
Model	EMH52T2R
Width	1.7mm
Mount Type	Surface
Series	EMH52
Maximum Operating Temperature	150°C
Package Type	SOT-563
Pin Count	6
Maximum Continuous Collector Current Ic	100mA
Maximum Collector Emitter Voltage Vceo	50V
Minimum DC Current Gain hFE	80
Transistor Polarity	NPN + NPN
Maximum Collector Base Voltage VCBO	50V
Maximum Power Dissipation Pd	150mW
Transistor Configuration	Dual

Key Features

Compact SOT-563 surface mount package with 6 pins for easy PCB integration.
Maximum power dissipation of 150 mW for reliable operation in small signal applications.
High minimum DC current gain (hFE) of 80 ensures efficient switching performance.
Wide operating temperature range up to 150°C supports industrial environments.
Independent transistor elements reduce interface and mounting costs effectively.
Equivalent to DTC044E with ROHM quality and series EMH52 reliability.
Ideal for digital circuits requiring low current switching transistors.

Product Description

ROHM EMH52T2R is a digital transistor featuring dual NPN + NPN transistor elements housed in a compact SOT-563 surface mount package. Rated for a maximum collector emitter voltage of 50 V and collector current of 100 mA, this device offers a maximum power dissipation of 150 mW, suitable for various electronic circuit designs.

The transistor's high current gain (minimum hFE of 80) ensures efficient amplification and switching capabilities. Its surface mount form factor with 6 pins enables easy mounting on PCBs, saving space and reducing manufacturing costs.

Operating temperature range up to 150°C makes it well suited for industrial and commercial applications requiring reliable performance under varied environmental conditions. The device's transistor elements are independent, minimizing interference and allowing simplified circuit layouts.

Typical use cases include signal switching, amplification in digital circuits, and general-purpose electronic components in consumer, industrial, and laboratory equipment. Compact dual transistor design in SOT-563 surface mount package.

Maximum collector emitter voltage of 50 V with 100 mA collector current capacity. High minimum DC current gain of 80 for superior switching performance. Rated maximum power dissipation of 150 mW for stable operation. Operating temperature range from -55°C to 150°C for industrial grade reliability.

Small dimensions: 1.7 mm length, 1.7 mm width, 0.55 mm height. Compatible replacement for DTC044E series transistors by ROHM. Ideal for electronic component integration in various digital circuits.

This ROHM EMH52T2R digital transistor is a new product designed for advanced electronic designs and is distributed under the well-known ROHM brand, recognized globally for quality semiconductor components.
