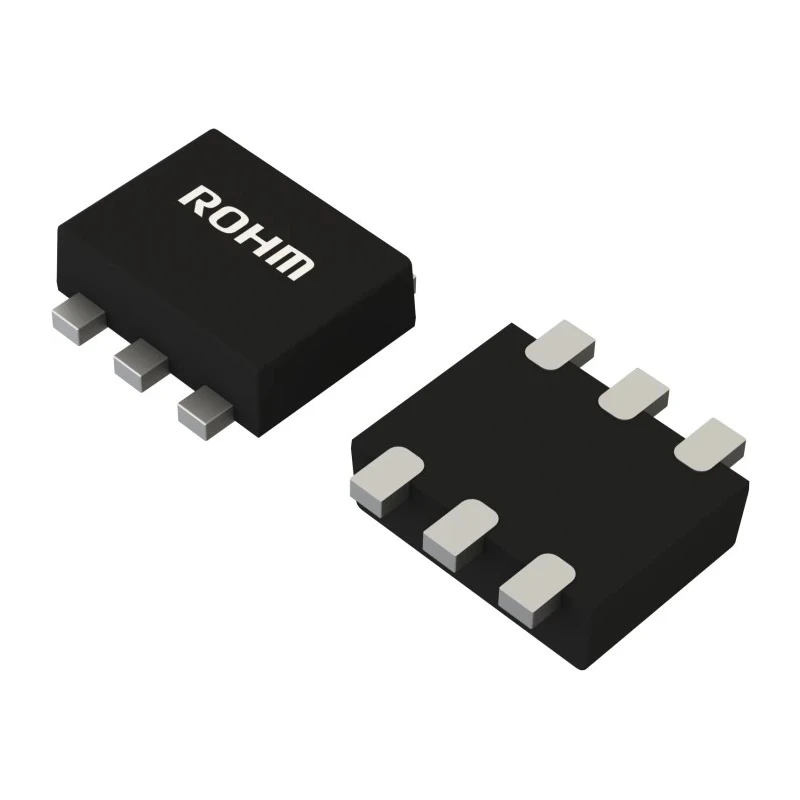

ROHM Digital Transistor 50 V 100 mA Surface Mount SOT-563 6-Pin EMD52T2R

ROHM EMD52T2R digital transistor is a high-performance surface mount device in the compact SOT-563 package, featuring 6 pins and designed to operate with a maximum collector emitter voltage (Vceo) of 50 V and a collector current of 100 mA. This device offers a maximum power dissipation of 150 mW and a minimum DC current gain of 68, making it suitable for reliable signal amplification in various electronic applications.

This NPN/PNP dual digital transistor’s design enables independent transistor elements, which eliminates the need for interface components, ultimately reducing mounting cost and layout area on printed circuit boards. The small dimensions (1.7 mm length, 1.7 mm width, and 0.55 mm height) make it ideal for high-density surface mounting, supporting compact and efficient electronic designs.

The transistor is optimized for environments requiring surface mounting and low power dissipation, commonly used in semiconductor discrete device manufacturing and electronic component assemblies. It serves well in applications involving signal switching, amplification, and digital transistor functions.

Compact SOT-563 6-pin surface mount package ensures space-saving on PCB. Maximum collector emitter voltage of 50 V supports moderate voltage applications. Collector current rating of 100 mA offers sufficient drive capability for digital signals.

Minimum DC current gain (hFE) of 68 guarantees signal amplification efficiency. Low power dissipation of 150 mW enhances thermal management and reliability. Independent transistor elements reduce the need for additional circuit components.

Suitable for manufacturing environments requiring automated PCB assembly.

It is commonly used across electronics manufacturing, power & connectors industries, and applications demanding reliable bipolar transistor components. Explore more semiconductor and Digital Transistor products in the Semiconductor category on EnvMart.
