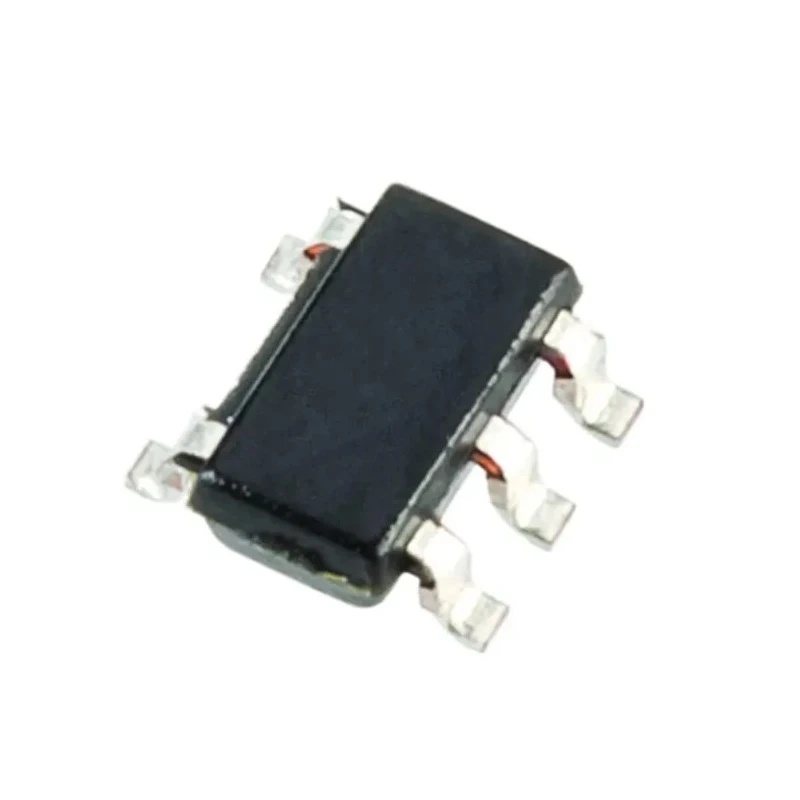

STMicroelectronics Operational Amplifier, 12 MHz Gain Bandwidth, 5-Pin 10V SOT-23 Package TS971ILT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.3mm |
| Length | 3mm |
| Model | TS971ILT |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TS971 |
| Output Current | 1.5mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 10V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 12MHz |
| Input Bias Current | 1000 nA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 4V/μs |
| Input Offset Current | 150 nA |
| Low distortion | 0.003% |
| Low noise level | 4 nV/√Hz |
| High dynamic features | 12 MHz, 4 V/μs |
Key Features
- Provides a gain bandwidth product of 12 MHz suitable for high-speed applications.
- Operates within a supply voltage range from 2.7 V to 10 V ensuring flexible power options.
- Features low noise level of 4 nV/√Hz and low distortion of 0.003% for precision amplification.
- Includes rail-to-rail output capability for maximizing signal swing.
- Complies with RoHS standards and automotive AEC-Q100 certification for reliability.
- Compact dimensions of 3 mm length, 1.75 mm width, and 1.3 mm height in a SOT-23 package.
- Handles output current up to 1.5 mA with an input bias current of 1000 nA.
- Supports a wide operating temperature range from -40°C to 125°C suitable for harsh environments.
Product Description
STMicroelectronics TS971ILT Operational Amplifier is a high-performance low-noise amplifier with a gain bandwidth product of 12 MHz. Its compact 5-pin SOT-23 package enables surface mounting on PCBs for portable and space-constrained designs. The device operates over a wide supply voltage range of 2.7 V to 10 V, making it suitable for battery-operated devices and other low-voltage systems.
Designed for precision amplification, it features an input bias current of 1000 nA, input offset voltage of 7 mV, and low distortion of 0.003%, ensuring signal integrity in sensitive applications. The rail-to-rail output stage maximizes dynamic range and output signal swing, beneficial for driving loads in automotive and industrial electronics.
Its compact physical dimensions of 3 mm length, 1.75 mm width, and 1.3 mm height allow use in densely populated electronic assemblies. The device supports an output current of 1.5 mA and operates reliably across an extended temperature range of -40°C to 125°C, meeting stringent automotive and industrial standards including AEC-Q100 and RoHS compliance.
This operational amplifier is ideal for numerous use cases such as portable instrumentation, sensor interface amplification, automotive electronic controls, industrial signal conditioning, and low-noise audio applications. Its low noise characteristics of 4 nV/√Hz make it especially suitable for high-precision and sensitive electronic signal processing tasks.
Gain bandwidth product of 12 MHz enables high-speed operation. Operating voltage range from 2.7 V to 10 V supports flexible power systems. Low noise and distortion help maintain signal fidelity. Compact 5-pin SOT-23 package for space-saving PCB design.
Compliance with RoHS and AEC-Q100 automotive standard. Wide operating temperature range ensures durability in harsh environments. Rail-to-rail output maximizes output signal swing. Suitable for portable, automotive, industrial, and instrumentation applications.
Explore more Operational Amplifiers and semiconductor components at EnvMart to find the ideal device for your electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TS971ILT operational amplifier has a gain bandwidth product of 12 MHz, making it suitable for high-speed applications.
It operates within a supply voltage range from 2.7 V to 10 V, providing flexible power options for various applications.
This operational amplifier has compact dimensions of 3 mm in length, 1.75 mm in width, and 1.3 mm in height, designed for surface mounting.
The TS971ILT can handle an output current of up to 1.5 mA, suitable for driving loads in various applications.
It features a low noise level of 4 nV/√Hz, which is beneficial for high-precision amplification tasks.
The maximum operating temperature for the TS971ILT is 125°C, allowing it to function in harsh environments.
This operational amplifier complies with RoHS standards and is certified under the AEC-Q100 automotive standard for reliability.
The input bias current for this model is 1000 nA, which helps maintain signal integrity in sensitive applications.
It includes a rail-to-rail output capability, maximizing the output signal swing for enhanced performance.
The input offset voltage for the TS971ILT is 7 mV, which is important for precision applications.
The slew rate of this operational amplifier is 4 V/μs, enabling quick response in high-speed applications.
This model is suitable for applications such as portable instrumentation, automotive electronic controls, and low-noise audio processing.
