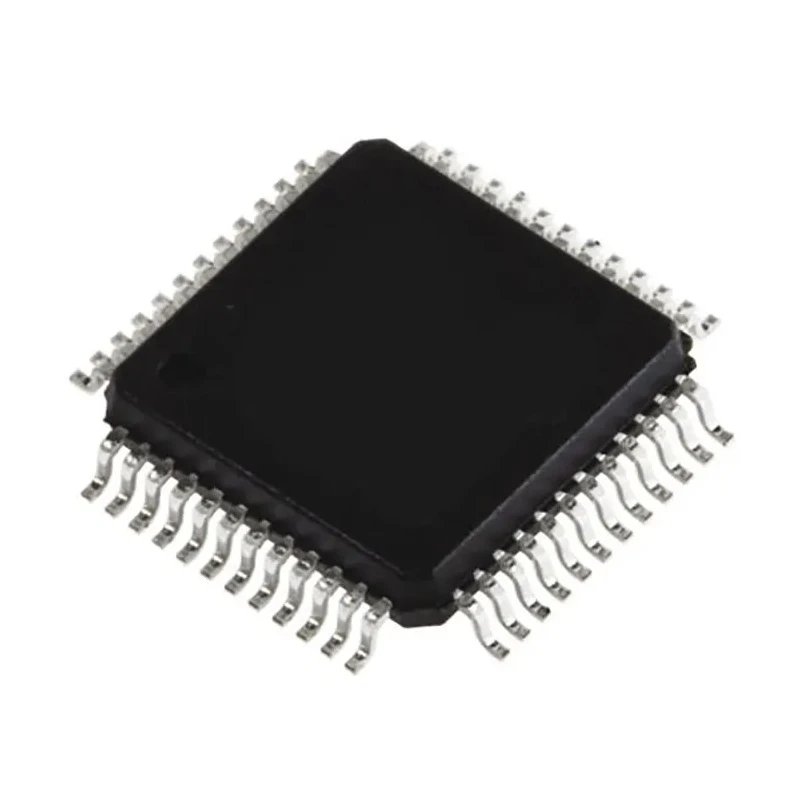

STMicroelectronics STM32F078CBT6 32 bit ARM Cortex M0 Microcontroller 48 MHz 128kB FLASH 48-Pin LQFP

STMicroelectronics STM32F078CBT6 is a high-performance 32-bit ARM Cortex M0 microcontroller operating at a maximum clock frequency of 48 MHz, housed in a 48-pin LQFP package. It features 128 kB of on-chip FLASH memory and 16 kB SRAM, providing ample program and data storage for embedded applications.

This microcontroller includes an extensive set of enhanced peripherals such as 13 channels of 12-bit ADC, 2 channels of 12-bit DAC, and 2 analog comparators to support complex signal processing. It supports multiple communication interfaces like two I2C buses, two SPI/I2S interfaces, HDMI CEC, four USART channels, and a USB full-speed device with crystal-less operation, making it highly versatile for connectivity requirements.

Operational voltage ranges from 1.8V to 3.6V, allowing flexibility in power supply choices. The device is designed to withstand operating temperatures between -40°C and 85°C, making it suitable for industrial and automotive applications. Power dissipation is optimized at a maximum of 370 mW, contributing to efficient system energy management.

Its 48-pin LQFP package measures 7.2 mm by 7.2 mm with a height of 1.45 mm, permitting compact PCB layouts. The integrated timers, including seven 16-bit timers and one 32-bit timer with PWM functionality, enable precise timing and motor control tasks.

The STM32F078CBT6 is widely applied in embedded designs such as industrial control systems, user interface devices, handheld electronics, audio/video receivers, digital televisions, PC peripherals, gaming consoles, GPS platforms, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVAC systems, reflecting its versatility and robustness.

Set yourself up for success in your next embedded project with this comprehensive microcontroller solution from STMicroelectronics. Built on an ARM Cortex M0 32-bit RISC core operating up to 48 MHz. Includes 128 kB of FLASH program memory and 16 kB SRAM for data storage.

Provides 13 channels of 12-bit ADC and 2 channels of 12-bit DAC for precise analog interfacing. Features multiple standard communication interfaces including 2 I2Cs, 2 SPIs, HDMI CEC, 4 USARTs, and USB Full Speed device.

Operates over a wide voltage range from 1.8V minimum to 3.6V maximum supply voltage. Designed with 4 timers, including advanced control PWM timer, for precise timing and control applications. Compact 48-pin LQFP package with dimensions 7.2mm x 7.2mm and a height of 1.45mm.

Operates reliably in temperature range from -40°C to +85°C for industrial environments. Max power dissipation is 370 mW, ensuring efficiency in embedded system designs. Suitable for use in industrial control, user interfaces, hand-held devices, digital TV, gaming, GPS modules, and HVAC systems.
