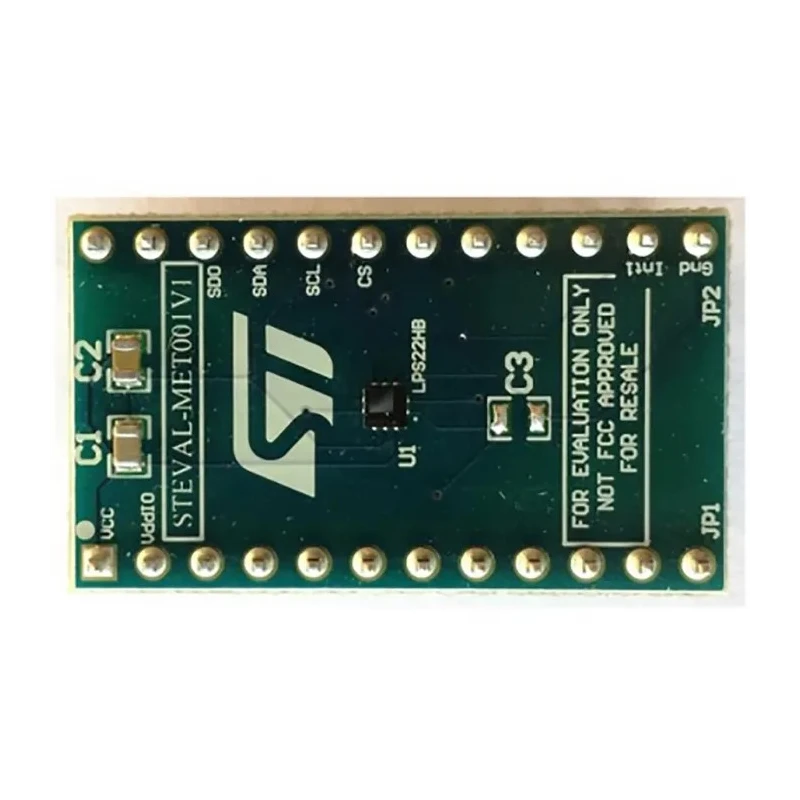

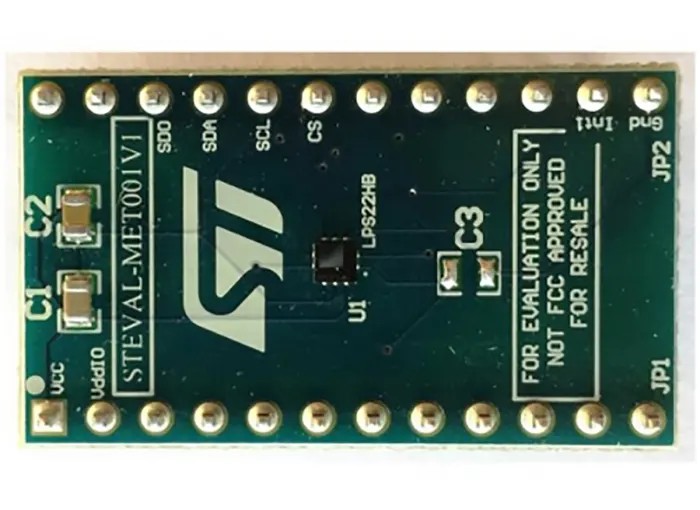

STMicroelectronics LPS22HB Adapter Board for a Standard DIL 24 Socket

STMicroelectronics STEVAL-MET001V1 is an adapter board specifically engineered to facilitate the evaluation of MEMS sensors from the LPS22HB family. This adapter board offers an effective solution for rapid system prototyping and device evaluation directly within the user's applications, significantly accelerating development cycles.

The board is designed to be plugged directly into a standard Dual In-Line (DIL) 24 socket, providing the complete LPS22HB sensor pin-out for seamless integration. It comes equipped with necessary decoupling capacitors on the VDD power supply line to ensure stable and reliable sensor operation.

This adapter is supported by the STEVAL-MKI109V2 motherboard, which features a high-performance 32-bit microcontroller acting as a bridge between the sensor and the PC. This setup allows users to utilize the downloadable Unico graphical user interface (GUI) or deploy dedicated software routines tailored for customized sensor applications.

The STEVAL-MET001V1 adapter board finds extensive applications in industrial automation, laboratory sensor research, embedded systems prototyping, and STEM education development, providing a flexible platform for sensor evaluation and integration.

The adapter board enables fast system prototyping and direct device evaluation within user applications. Designed to plug into standard DIL 24 sockets, providing complete LPS22HB pin-out compatibility. Includes required decoupling capacitors on the VDD power supply line, ensuring stable operation.

Fully compatible with STEVAL-MKI109V2 motherboard for enhanced sensor-to-PC interfacing. Ideal for sensor development in Industrial and Laboratory environments. Explore the STMicroelectronics Adapter Boards category on EnvMart for more sensor development solutions optimized for rapid prototyping and evaluation.
