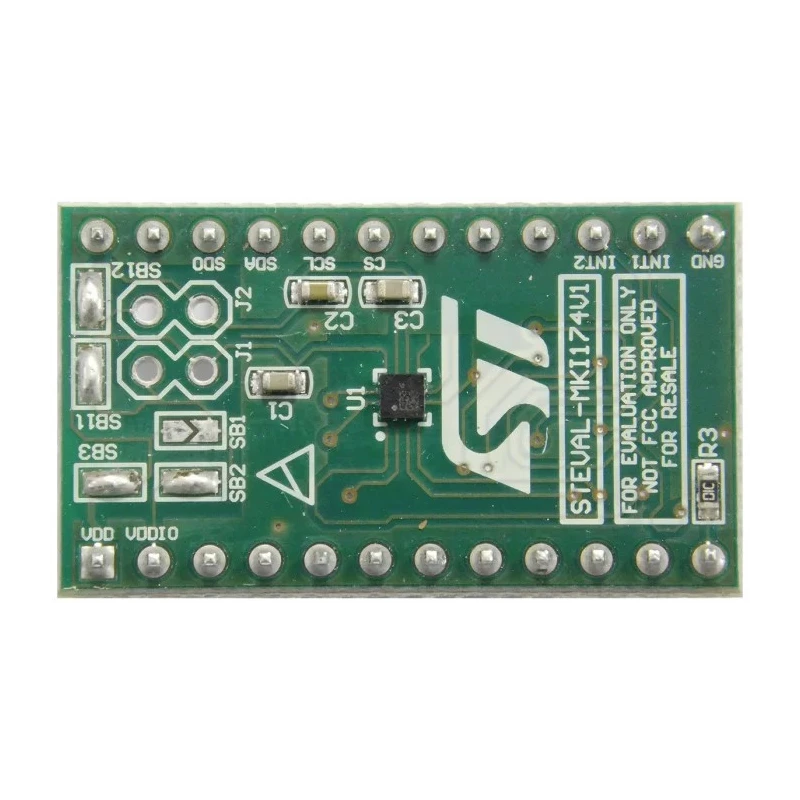

STMicroelectronics LIS2DS12 3-Axis Accelerometer Adapter Board for DIP24 Socket STEVAL-MKI174V1

STMicroelectronics STEVAL-MKI174V1 is a LIS2DS12 3-axis accelerometer adapter board designed to facilitate evaluation and development with the MEMS digital output motion sensor LIS2DS12. This ultra low-power, high-performance pico accelerometer supports various sensing applications in industrial, laboratory, embedded systems, and development environments.

The adapter board fits a standard DIP24 socket, providing direct access to the complete LIS2DS12 pinout. It includes necessary decoupling capacitors on the VDD power supply line to ensure stable voltage supply and reliable sensor operation.

The STEVAL-MKI174V1 adapter is compatible with the STEVAL-MKI109V3 motherboard, enabling users to utilize the downloadable Unico GUI for easy configuration, data acquisition, and sensor control.

The LIS2DS12 sensor features selectable full scale ranges of ±2 g, ±4 g, ±8 g, and ±16 g with 16-bit digital output data. It operates with ultra-low current consumption and interfaces via a high-speed I²C or SPI digital output.

Additional integral features include an embedded temperature sensor and a 256-level FIFO buffer which supports advanced motion and acceleration detection functions such as free-fall detection, wakeup events, and single/double tap detection, making it suitable for precise motion sensing applications.

This development kit accessory is ideal for use in embedded system design, motion sensing development, laboratory experiments, and industrial applications that require accurate accelerometer data and flexible interfacing.

The adapter board evaluates the ultra low-power, high-performance LIS2DS12 3-axis pico accelerometer. Compatible with standard DIP24 socket for full LIS2DS12 pinout access. Equipped with decoupling capacitors on VDD power supply line for stable operation.

Supports STEVAL-MKI109V3 motherboard and downloadable Unico graphical user interface. Features ultra-low current consumption and multiple selectable full scale settings ±2 g to ±16 g. Provides 16-bit data output with high-speed I²C/SPI digital interface.

Includes embedded temperature sensor and 256-level FIFO buffer. Supports motion and acceleration detection functions including free-fall and tap detection. Explore more development tooling and Adapter Boards at EnvMart for comprehensive engineering and embedded system solutions.
