STMicroelectronics 3-Axis Accelerometer Adapter Board for DIP24 Socket STEVAL-MKI175V1

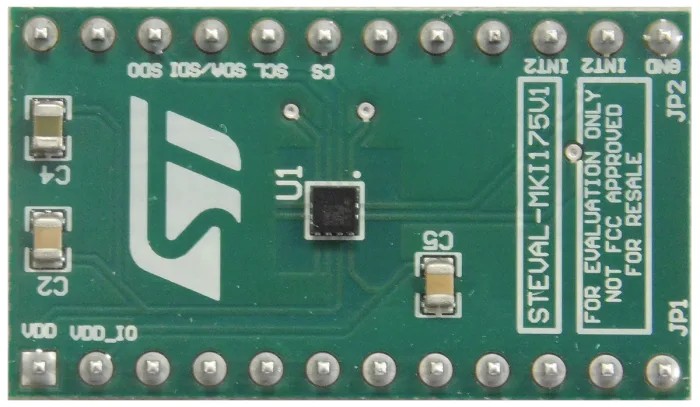

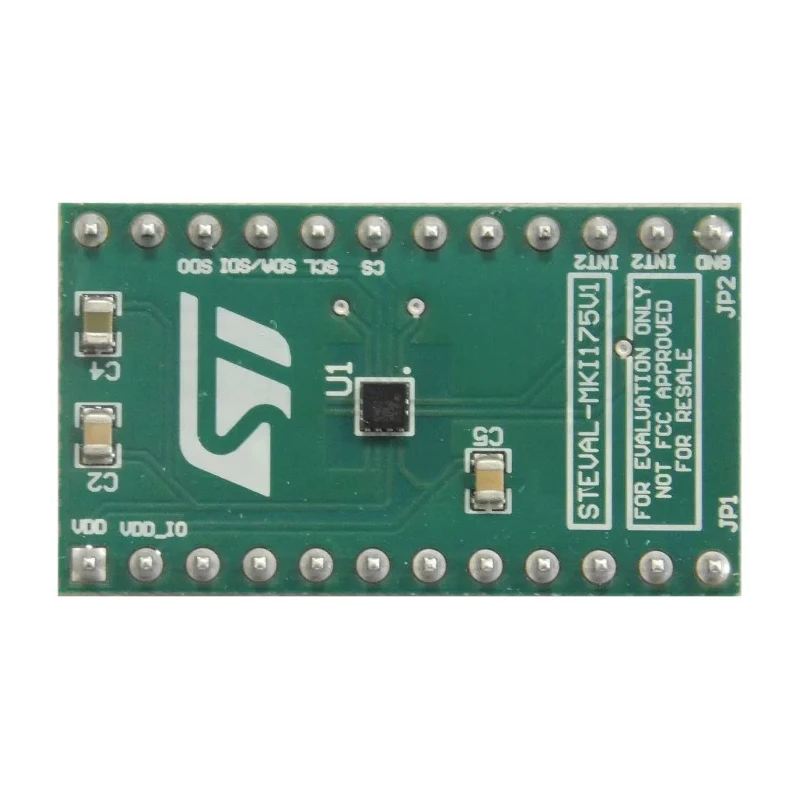

STMicroelectronics STEVAL-MKI175V1 is an adapter board designed as a development kit accessory to evaluate the LIS2DE12 MEMS digital output motion sensor, which is an ultra low-power, high-performance 3-axis "femto" accelerometer. This adapter board is compatible with a standard DIP24 socket, providing full access to the LIS2DE12 sensor pinout.

The board comes fully equipped with the necessary decoupling capacitors on the VDD power supply line, ensuring stability and optimal sensor operation. It is supported by STEVAL-MKI109V2 and STEVAL-MKI109V3 motherboards where users can utilize the downloadable Unico graphical user interface for configuration and monitoring.

This adapter features ultra-low power consumption down to 2 μA, and selectable acceleration full scale settings allowing ±2 g, ±4 g, ±8 g, and ±16 g ranges. It offers SPI and I²C digital output interfaces, delivering 8-bit data output for precise motion sensing.

Additional functionalities include two independent programmable interrupt generators designed for free-fall and motion detection, enhancing flexibility in industrial and laboratory applications. Power-saving features such as sleep-to-wake and return-to-sleep functions contribute to energy efficiency during operation. The adapter board operates over a wide supply voltage range from 1.71 V to 3.6 V.

This adapter board is ideal for development tools and single board computer accessories, serving industrial, laboratory, electronics development, and educational STEM applications. It facilitates effective evaluation and integration of the LIS2DE12 accelerometer sensor in various projects requiring precise motion sensing with low power requirements.

The board supports the MEMS digital output high-performance LIS2DE12 ultra low-power accelerometer. Ready-to-use with required decoupling capacitors on the VDD power supply line. Compatible with STEVAL-MKI109V2 and STEVAL-MKI109V3 motherboards using Unico GUI software.

Features selectable acceleration full scales of ±2 g, ±4 g, ±8 g, and ±16 g. Includes SPI and I2C digital output interfaces with 8-bit data output. Equipped with two independent programmable interrupt generators for free-fall and motion detection.

Supports sleep-to-wake and return-to-sleep power-saving functions. Operates within a wide supply voltage range from 1.71 V to 3.6 V. Explore more development tool accessories and Adapter Boards at EnvMart for your electronics prototyping and evaluation needs.
