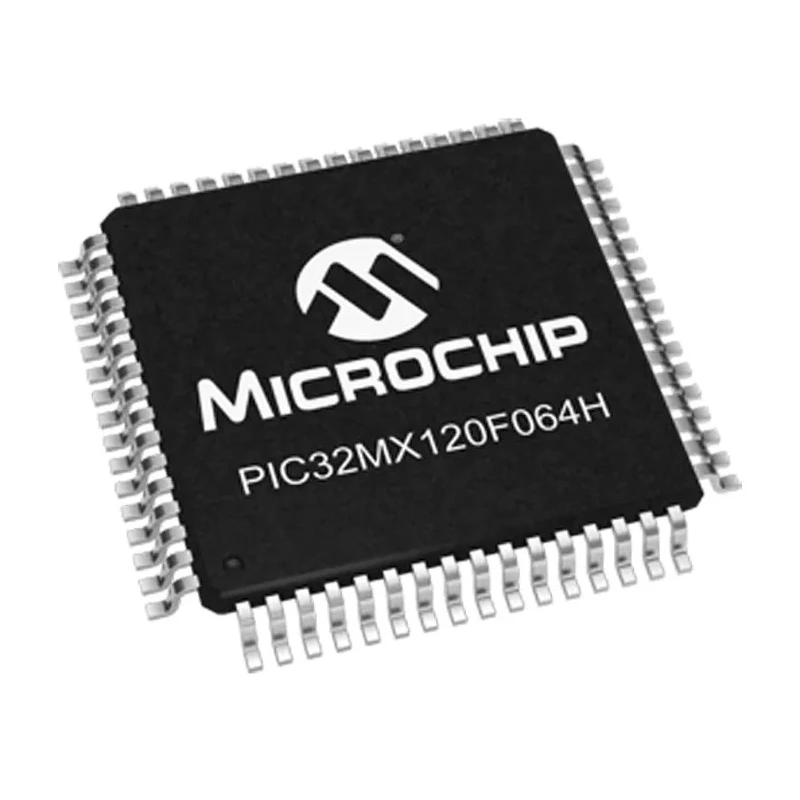

Microchip 32 Bit PIC32MX Microcontroller, 50 MHz, 64kB FLASH, 64-Pin TQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC32MX |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC32MX |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB Clock and can be tuned in Run-Time |
| Ram size | 8kB |
| Pin Count | 64 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 50MHz |
| Number of Programmable I/Os | 85 |
| Analogue Comparators | 3 |
| Number of Timers | 2, 5 |
| Instruction Set Architecture | RISC |
| ADCs | 28 x 10 Bit |
| Program Memory Type | FLASH |
| High-performance 32-bit microcontrollers designed for | High Impact Graphics/User Interfaces, Ethernet/USB/CAN Connectivity, Multitasking Embedded Control, High Performance Audio |
Key Features
- 32-bit PIC microcontroller featuring a 50 MHz maximum clock frequency.
- Equipped with 64kB of FLASH program memory and 8kB RAM.
- Operates on a supply voltage range of 2.3V to 3.6V ensuring flexibility.
- Offers 85 programmable I/O pins and three analogue comparators for versatile interfacing.
- Features advanced peripherals including USB 2.0-compliant OTG controller and multiple UART, SPI, and I2C interfaces.
- Designed with up to five timers (two 32-bit, five 16-bit) and a real-time clock/calendar module.
- Highly suitable for embedded applications such as high impact graphic/user interfaces, Ethernet, USB, CAN connectivity, and high-performance audio.
- Operates reliably within a temperature range of -40°C to 85°C.
Product Description
Microchip PIC32MX120F064H-I/PT is a powerful 32-bit PIC microcontroller operating at a maximum clock speed of 50 MHz. Encased in a 64-Pin TQFP package, it includes 64kB of FLASH memory and 8kB RAM, supporting complex embedded applications. The device runs on a supply voltage between 2.3V and 3.6V, making it adaptable to various power conditions while supporting 85 programmable I/O pins and three analogue comparators to meet demanding interfacing needs.
This microcontroller is built on the PIC32MX1x0/2x0/5x0 family architecture featuring Microchip's MIPS32 M4K core with up to 83 DMIPS. It supports multiple power management modes and configurable watchdog timer, enabling robust and energy-efficient designs.
The peripheral set includes USB 2.0-compliant Full-Speed On-The-Go (OTG) controller (model-dependent), dual UART modules supporting LIN 2.0 and IrDA protocols, two SPI and I2C modules with SMBus support, and a parallel master port (PMP). The advanced timing unit comprises two 32-bit timers and five 16-bit timers alongside five output compare and five input compare modules, further enhanced by a real-time clock and calendar (RTCC) module.
Additional features include multiple 10-bit ADC channels (up to 28, model-dependent), audio and graphics support interfaces such as I2S and DSP modes, and specialized functions like charge time measurement unit (CTMU) on selected models. The PIC32MX120F064H-I/PT is designed for industrial, laboratory, automotive, and commercial embedded system applications demanding high-performance processing and connectivity.
32-bit architecture with MIPS32 M4K core delivering up to 83 DMIPS. 50 MHz maximum clock speed for high-performance needs. 64 kB FLASH memory and 8kB RAM for program storage and execution. Enhanced peripheral support including USB OTG, UART, SPI, and I2C interfaces.
Wide operating temperature range from -40°C to +85°C for harsh environments. Multiple timers and RTCC for precise time and event handling. Suitable for multimedia, Ethernet, USB, CAN, and multitasking embedded control.
Discover a wide range of Microcontrollers in the Microchip PIC32MX series for industrial and commercial embedded system designs. Explore and source high-quality semiconductor solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 50 MHz.
It operates on a supply voltage range of 2.3V to 3.6V.
This model is equipped with 64kB of FLASH program memory.
The operating temperature range is from -40°C to 85°C.
This microcontroller offers 85 programmable I/O pins.
It supports multiple interfaces including USB, UART, SPI, and I2C.
The package type is TQFP (Thin Quad Flat Package).
This model has 8kB of RAM.
It includes two 32-bit timers and five 16-bit timers.
This microcontroller complies with the AEC-Q100 automotive standard.
It is suitable for high impact graphics, Ethernet, USB, CAN connectivity, and high-performance audio applications.
The dimensions are 1.05mm in height, 10mm in length, and 10mm in width.
