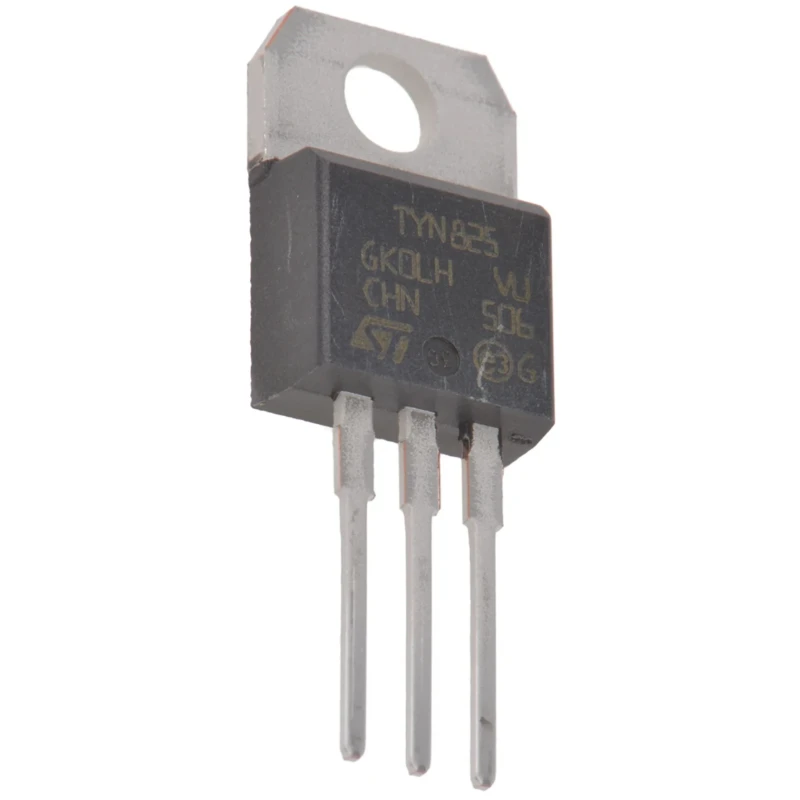

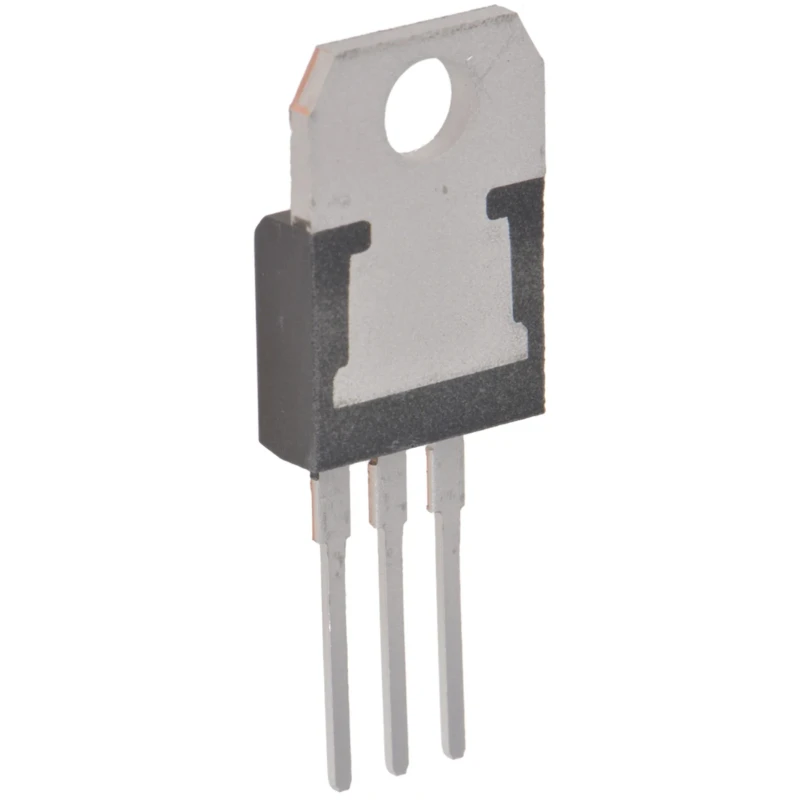

STMicroelectronics Thyristor SCR TO-220 Package, 800 V, 16 A, 40 mA Gate Trigger Current, 314 A Surge Current Rating TYN825RG
Specifications
| Country of Origin | China |
|---|---|
| Brand | STMicroelectronics |
| Model | TYN825RG |
| Mount Type | Through Hole |
| Series | 25 A SCRs |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 16A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 800V |
| Surge Current Rating | 314A |
| Maximum Gate Trigger Current Igt | 40mA |
| Maximum Holding Current Ih | 50mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Repetitive Peak Off-State Current | 5μA |
| Vishay VS-25TTS08-M3, Thyristor 800V, 16A 45mABrand | Vishay |
Key Features
- Rated average on-state current of 16 A ensures robust power handling.
- Repetitive peak reverse voltage of 800 V suitable for high voltage applications.
- Maximum gate trigger current is 40 mA allowing sensitive control.
- Surge current rating of 314 A supports transient overload conditions.
- Through hole mount type ensures secure PCB installation.
- Designed for operation from -40°C to 125°C accommodating harsh environments.
- Three-pin TO-220 package compatible with standard mounting hardware.
- Maximum gate trigger voltage is 1.3 V for reliable switching performance.
Product Description
STMicroelectronics TYN825RG is a robust Silicon Controlled Rectifier (SCR) thyristor designed for power switching and control applications. It features a TO-220 package type with through-hole mounting, offering ease of assembly and reliable electrical connections.
This thyristor is rated for a repetitive peak reverse voltage of 800 V and an average on-state current of 16 A, making it suitable for various industrial and electronic power control scenarios. The device supports a surge current rating up to 314 A, allowing it to handle transient overloads without damage.
The TYN825RG incorporates a maximum gate trigger current of 40 mA and a gate trigger voltage of 1.3 V, providing sensitive gate control for precise switching operations. It can operate effectively over a wide temperature range from -40°C up to +125°C, accommodating diverse environmental conditions in industrial, manufacturing, and automotive power applications.
This discrete semiconductor component is ideal for use in power supply units, motor controls, industrial automation, and other high voltage switching contexts requiring durable and reliable SCRs. Its three-pin TO-220 form factor ensures compatibility with standard heatsink and PCB mounting arrangements.
Rated average on-state current of 16 A ensures robust power handling. Repetitive peak reverse voltage of 800 V suitable for high voltage applications. Maximum gate trigger current is 40 mA allowing sensitive control. Surge current rating of 314 A supports transient overload conditions.
Through hole mount type ensures secure PCB installation. Designed for operation from -40°C to 125°C accommodating harsh environments. Three-pin TO-220 package compatible with standard mounting hardware. Maximum gate trigger voltage is 1.3 V for reliable switching performance.
Explore more semiconductor and Thyristor components in the Electronics & Electricals category on EnvMart for industrial and electronic design applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TYN825RG has a maximum repetitive peak reverse voltage of 800 V, making it suitable for high voltage applications.
This model is rated for an average on-state current of 16 A, ensuring robust power handling capabilities.
The surge current rating of this thyristor is 314 A, allowing it to handle transient overload conditions effectively.
The TYN825RG has a maximum gate trigger current of 40 mA, which allows for sensitive control during operation.
This model is designed to operate within a temperature range of -40°C to 125°C, accommodating harsh environments.
The thyristor features a through-hole mount type, ensuring secure installation on PCBs.
The maximum gate trigger voltage for the TYN825RG is 1.3 V, which supports reliable switching performance.
This model has a pin count of 3, typical for TO-220 package types.
The thyristor is housed in a TO-220 package type, which is compatible with standard mounting hardware.
The maximum holding current for the TYN825RG is 50 mA, which is essential for maintaining conduction in the device.
This thyristor is ideal for power supply units, motor controls, industrial automation, and other high voltage switching applications.
The repetitive peak off-state current for this model is 5 μA, indicating low leakage during off states.
