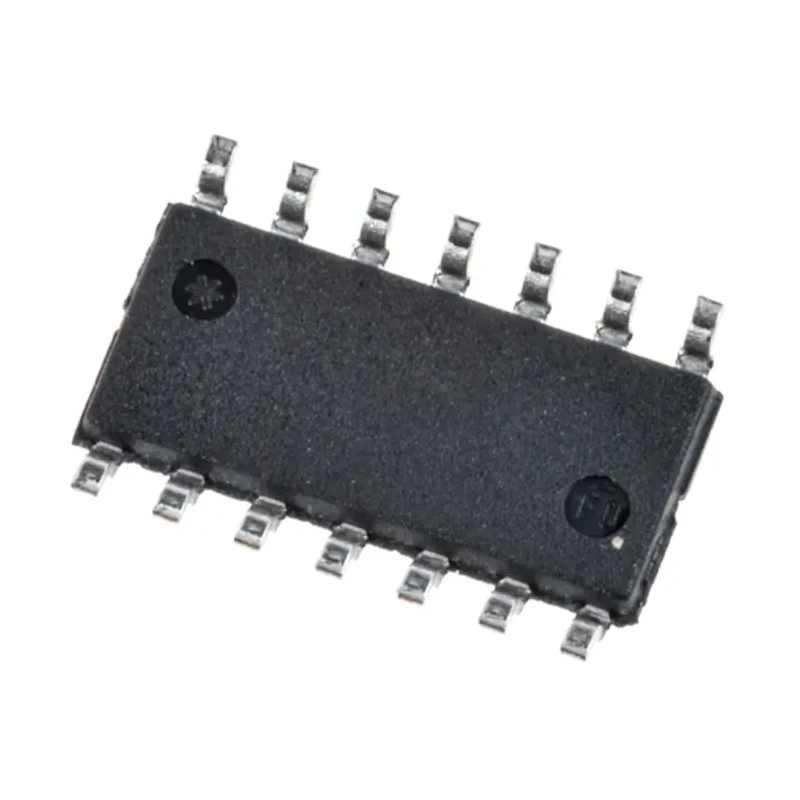

STMicroelectronics Operational Amplifier 15 MHz, 14-Pin SOIC, 3-15V, Quad Channel TS524IDT
Specifications
| Country of Origin | Morocco |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.6mm |
| Length | 8.75mm |
| Model | TS524IDT |
| Width | 4mm |
| Mount Type | Surface |
| Series | TS524 |
| Output Current | 37mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 15MHz |
| Input Bias Current | 800 nA |
| Vos - Input Offset Voltage | 1.8 mV |
| Slew Rate | 7V/μs |
| Input Offset Current | 175 nA |
| Low distortion | 0.002% |
Key Features
- Quad channel operational amplifier with low input offset voltage.
- Operates from 3V to 15V supply voltage.
- Gain bandwidth product of 15 MHz for high-frequency applications.
- Low noise and distortion at 0.002% for audio and precision circuits.
- Slew rate of 7 V/μs enables fast response times.
- Wide operating temperature range from -40°C to 125°C for industrial environments.
- High output current capability up to 37mA.
- RoHS compliant with Morocco country of origin.
Product Description
STMicroelectronics TS524IDT is a high-performance quad operational amplifier designed for demanding industrial and audio applications. It is housed in a 14-pin SOIC surface mount package with compact dimensions of 8.75mm by 4mm by 1.6mm, making it suitable for space-constrained PCB layouts.
The amplifier operates on a wide supply voltage range from 3V up to 15V and provides a gain bandwidth product of 15 MHz, ensuring excellent frequency response. Its low input offset voltage maxing at 1.8 mV and minimal input bias and offset currents guarantee precision signal amplification. The device delivers a high slew rate of 7 V/μs and low distortion of 0.002%, which is ideal for audio and precision analog signal conditioning.
Designed to withstand industrial temperature extremes ranging from -40°C to 125°C, this operational amplifier ensures reliable operation in harsh environments. The maximum output current of 37mA allows driving various loads effectively. The product complies with RoHS environmental standards and is manufactured in Morocco.
Quad operational amplifier channel configuration enhances multi-signal processing. Low noise and distortion support high fidelity audio and signal accuracy. Wide temperature range suits automotive and industrial control systems.
Compact SOIC package facilitates automated surface mounting and high-density PCB designs. High slew rate assures quick signal transitions and response. Low input bias and offset currents improve measurement precision. RoHS compliance supports green manufacturing initiatives.
Reliable operation from 3V to 15V supply enhances versatility. High output current capability supports diverse application needs. Manufactured in Morocco ensuring quality consistency.
This STMicroelectronics TS524IDT operational amplifier is ideal for industrial, laboratory, audio equipment, instrumentation, and automotive electronics applications where precision and reliability are critical.
Explore more specialized Operational Amplifiers and related semiconductor components at EnvMart to meet your electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the TS524IDT operational amplifier is 15 MHz, making it suitable for high-frequency applications.
This model operates within a supply voltage range of 3V to 15V.
The maximum output current capability of this operational amplifier is 37 mA.
The input offset voltage for this operational amplifier is a maximum of 1.8 mV, which supports precision signal amplification.
The dimensions of this operational amplifier are 8.75 mm in length, 4 mm in width, and 1.6 mm in height.
The TS524IDT operational amplifier operates within a temperature range of -40°C to 125°C, suitable for industrial environments.
This operational amplifier has a slew rate of 7 V/μs, allowing for fast response times.
The TS524IDT is a quad channel operational amplifier, featuring four channels for signal processing.
This model is housed in a 14-pin SOIC surface mount package, which is compact and suitable for high-density PCB designs.
The operational amplifier exhibits low distortion at 0.002%, making it ideal for audio and precision circuits.
Yes, the TS524IDT operational amplifier is RoHS compliant, supporting environmental standards in manufacturing.
This operational amplifier is suitable for industrial, laboratory, audio equipment, instrumentation, and automotive electronics applications.
