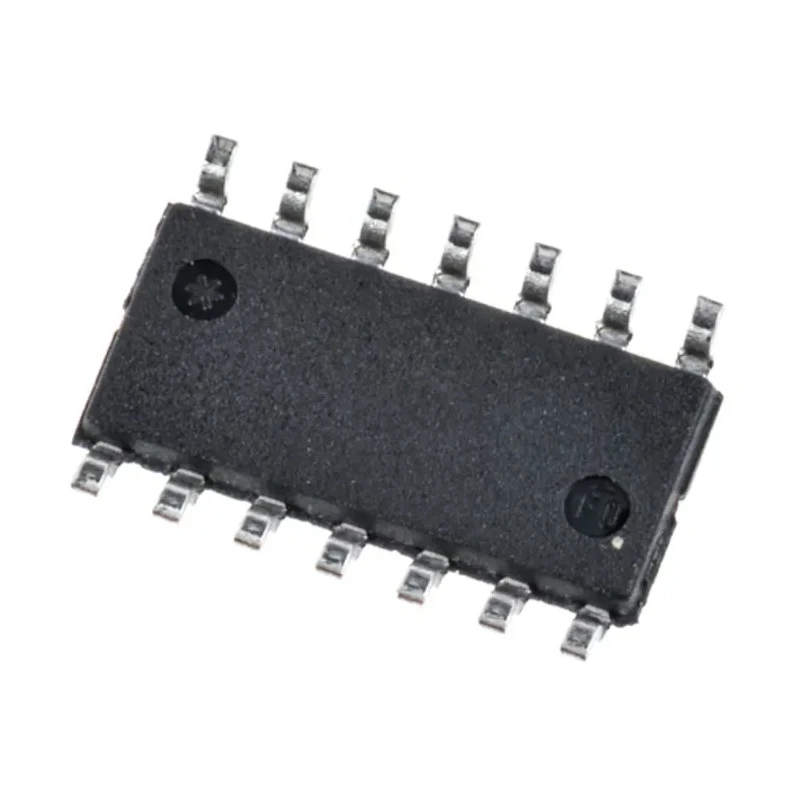

STMicroelectronics Operational Amplifier 4-Channel 15 MHz Gain Bandwidth Product 15V SOIC TS524IDT
Specifications
| Country of Origin | Morocco |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.6mm |
| Length | 8.75mm |
| Model | TS524IDT |
| Width | 4mm |
| Mount Type | Surface |
| Series | TS524 |
| Output Current | 37mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 15MHz |
| Input Bias Current | 800 nA |
| Vos - Input Offset Voltage | 1.8 mV |
| Slew Rate | 7V/μs |
| Input Offset Current | 175 nA |
| Low distortion | 0.002% |
Key Features
- The device features a low input offset voltage for precise signal amplification.
- It supports a wide supply voltage range from 3V to 15V.
- Comprises 4 channels in a single package, enabling multi-signal processing.
- Exhibits high slew rate of 7 V/μs, ideal for audio and dynamic applications.
- Compact dimensions with a length of 8.75 mm, width of 4 mm, and height of 1.6 mm.
- Designed to operate reliably between -40°C and 125°C operating temperatures.
- The amplifier maintains low distortion of 0.002% to ensure signal integrity.
- Output current capability of up to 37 mA supports driving a variety of loads.
Product Description
STMicroelectronics TS524IDT is a quad operational amplifier designed for applications needing low noise and high dynamic performance. It features a gain bandwidth product of 15 MHz and is housed in a compact 14-pin SOIC surface mount package. The device supports a wide supply voltage range from 3V minimum to 15V maximum, suitable for various industrial and audio amplification needs.
Its low input offset voltage of 950 μV maximum coupled with a high slew rate of 7 V/μs allows for high-fidelity signal amplification with minimal distortion, measured at only 0.002%. The amplifier delivers symmetrical source and sink currents with a maximum output current of 37 mA, enabling it to drive multiple types of loads.
With an operating temperature range from -40°C to 125°C and surface mount package dimensions of 8.75 mm length, 4 mm width, and 1.6 mm height, this operational amplifier is suitable for demanding industrial, audio, and electronic component applications. The device complies with RoHS environmental regulations and is manufactured in Morocco, adhering to strict quality standards.
The TS524 series is optimized for low noise, making it ideal for sensitive audio applications. Its 4-channel configuration reduces board space and design complexity. The device offers a high gain bandwidth product supporting fast signal response.
Surface mount SOIC package facilitates automated assembly in manufacturing. Maintains signal integrity across temperature extremes for reliable operation.
This Operational Amplifier is widely used in industrial electronics, audio amplification systems, instrumentation, and other sectors requiring precise, low-noise signal processing. Explore EnvMart's comprehensive range of semiconductor amplifiers and components to source this part for your next project or production run.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the TS524IDT operational amplifier is 15 MHz.
It can provide a maximum output current of 37 mA.
The TS524IDT supports a supply voltage range from 3V to 15V.
The dimensions of this operational amplifier are 8.75 mm in length, 4 mm in width, and 1.6 mm in height.
It operates reliably within a temperature range of -40°C to 125°C.
This operational amplifier features 4 channels in a single package.
The slew rate of the TS524IDT is 7 V/μs.
The maximum input offset voltage for the TS524IDT is 1.8 mV.
Yes, the TS524IDT complies with RoHS environmental regulations.
It comes in a 14-pin SOIC surface mount package.
This operational amplifier is suitable for industrial electronics, audio amplification systems, and instrumentation requiring precise, low-noise signal processing.
The input bias current for the TS524IDT is 800 nA.
