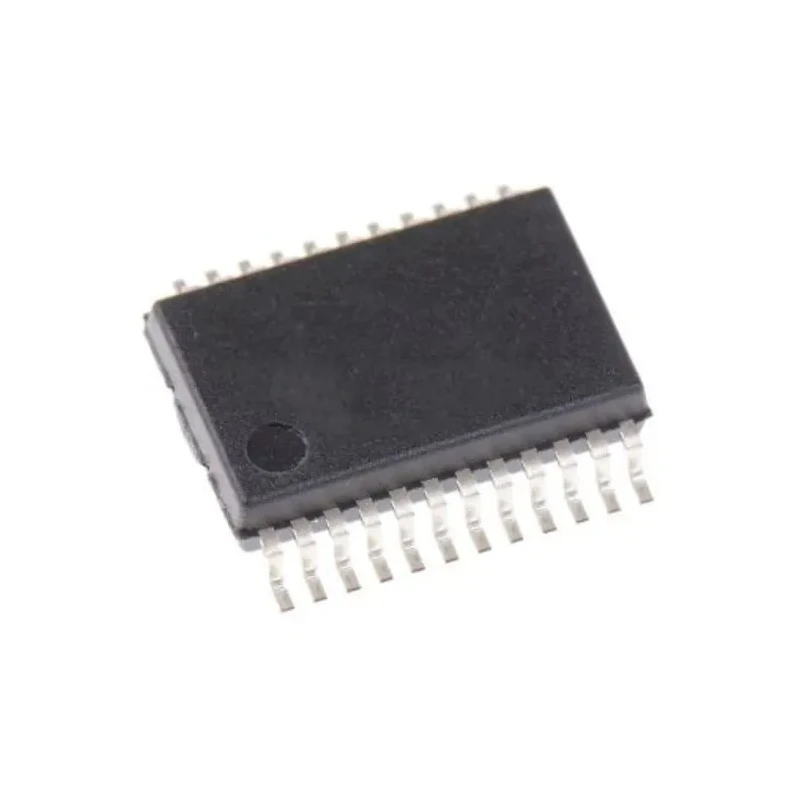

Maxim Integrated 16-Channel I/O Expander Serial-I2C 400kHz 2V-5.5V SSOP-24 MAX7311AAG+
Specifications
| Country of Origin | India |
|---|---|
| Brand | Maxim Integrated |
| Height | 1.99mm |
| Length | 8.33mm |
| Model | MAX7311AAG+ |
| Mount Type | Surface |
| Series | MAX7311 |
| Maximum Operating Temperature | 125°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Interface Type | Serial-I2C |
| Pin Count | 24 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2V |
| Clock frequency | 400kHz |
| Number of I/O Channels | 16 |
Key Features
- Supports 16 independent I/O channels for expanded connectivity.
- Operates with supply voltages from 2V to 5.5V, tolerant to 5V overvoltage.
- Utilizes a 400kHz compatible Serial-I2C interface for efficient data communication.
- Features a 24-pin SSOP package suitable for surface mounting.
- Designed to operate in extreme temperatures ranging from -40°C to 125°C.
- Includes low standby current consumption of typically 2.9µA for energy efficiency.
- Provides bus timeout and hot insertion support for enhanced reliability.
- Features open-drain interrupt output with active-low INT signaling.
Product Description
Maxim Integrated MAX7311AAG+ is a 16-Channel I/O Expander designed for applications requiring serial interface expansion via the Serial-I2C protocol with a clock frequency of 400kHz. Housed in a compact 24-pin SSOP package with surface mount capability, it supports a wide supply voltage range from 2V to 5.5V and is tolerant to overvoltage conditions up to 5V on its I/O pins.
This device features 16 independent I/O pins which default to inputs on power-up and incorporate 100kΩ pull-up resistors. It includes an open-drain interrupt output that is active-low, allowing prompt signaling of events. The expander supports noise filtering on SCL/SDA inputs and incorporates bus timeout for lock-up-free operation, enhancing overall system robustness.
The MAX7311 operates reliably in harsh environments with a wide operating temperature range of -40°C to +125°C, making it suitable for industrial control, instrumentation and test measurement, medical equipment, programmable logic controllers (PLCs), RAID systems, and servers.
Additional features include polarity inversion capability and support for 64 slave ID addresses, enabling flexible network configurations. Its low standby current consumption (typically 2.9µA) makes it ideal for power-sensitive applications.
Supports 16 independent I/O channels for expanded connectivity. Operates with supply voltages from 2V to 5.5V, tolerant to 5V overvoltage. Utilizes a 400kHz compatible Serial-I2C interface for efficient data communication.
Features a 24-pin SSOP package suitable for surface mounting. Designed to operate in extreme temperatures ranging from -40°C to 125°C. Includes low standby current consumption of typically 2.9µA for energy efficiency. Provides bus timeout and hot insertion support for enhanced reliability.
Features open-drain interrupt output with active-low INT signaling. Equipped with 100kΩ pull-up resistors on each I/O for default input state.
This product is well-suited for industrial, laboratory, medical, and commercial applications requiring reliable I/O expansion and efficient communication over I2C buses. Choosing MAX7311AAG+ ensures high performance and durability for demanding electronic system designs.
Explore more semiconductor components and I/O Expander ICs in the Electronics & Electricals category at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with supply voltages ranging from 2V to 5.5V and is tolerant to overvoltage conditions up to 5V on its I/O pins.
It supports 16 independent I/O channels, which default to inputs on power-up and include 100kΩ pull-up resistors.
The device utilizes a Serial-I2C interface with a clock frequency of 400kHz for efficient data communication.
The model has a height of 1.99mm and a length of 8.33mm, housed in a 24-pin SSOP package suitable for surface mounting.
It is designed to operate in extreme temperatures ranging from -40°C to 125°C, making it suitable for harsh environments.
It features an open-drain interrupt output with active-low INT signaling, allowing for prompt event signaling.
Yes, it includes bus timeout support to prevent lock-up conditions, enhancing overall system reliability.
The low standby current consumption is typically 2.9µA, making it suitable for power-sensitive applications.
This unit is designed for surface mounting, which is suitable for various electronic applications.
It incorporates noise filtering on the SCL/SDA inputs to improve signal integrity during communication.
This I/O expander is well-suited for industrial control, instrumentation, medical equipment, and programmable logic controllers (PLCs).
It supports up to 64 slave ID addresses, allowing for flexible network configurations in various applications.
