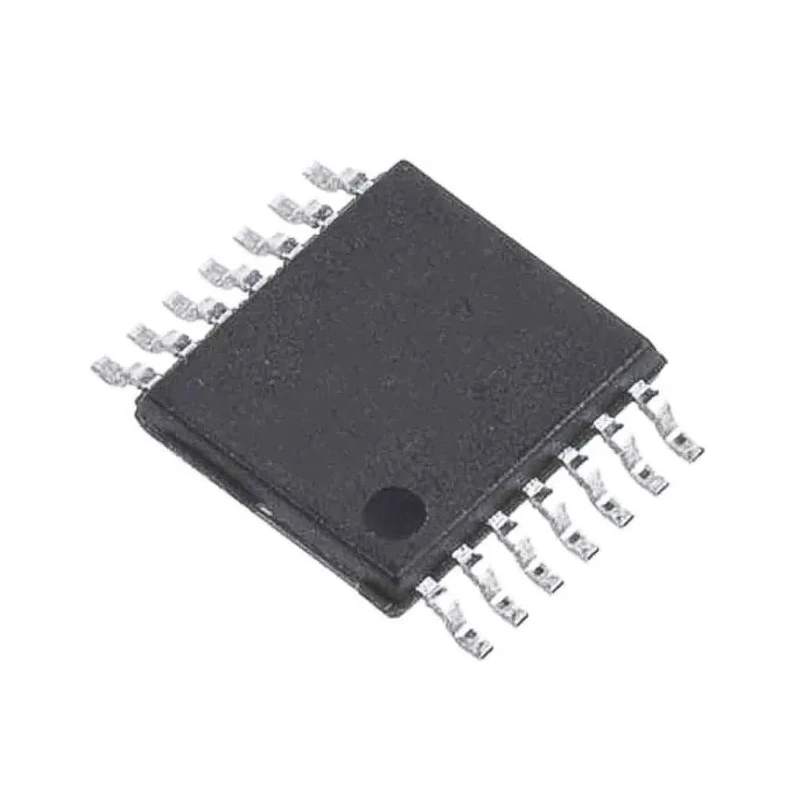

STMicroelectronics Operational Amplifier 8 MHz 14-Pin 5.5V TSSOP TSV914IPT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.05mm |
| Length | 5.1mm |
| Model | TSV914IPT |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | TSV914 |
| Output Current | 35mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| GBP - Gain Bandwidth Product | 8MHz |
| Input Bias Current | 100 pA |
| Vos - Input Offset Voltage | 7.5 mV |
| Slew Rate | 4.5V/μs |
| Low input offset voltage | 1.5 mV max (A grade) |
Key Features
- Operates at supply voltage range of 2.5 V to 5.5 V for flexible low voltage use.
- Features four independent channels in a single package.
- Provides low input bias current of typically 100 pA for precision applications.
- Capable of delivering a high output current up to 35 mA.
- Wide operating temperature range from -40°C to 125°C suits automotive and industrial environments.
- Achieves a slew rate of 4.5 V/μs enabling high speed signal processing.
- RoHS compliant with automotive standard AEC-Q100 qualification.
- Compact dimensions of 5.1 mm length, 4.5 mm width, and 1.05 mm height ensure small PCB footprint.
Product Description
The STMicroelectronics TSV914IPT is a high-performance operational amplifier designed for a wide range of industrial, automotive, and portable electronic applications. Featuring a 14-pin TSSOP surface-mount package, this quad-channel device supports a gain-bandwidth product of 8 MHz, enabling fast and accurate signal amplification with low power consumption. The amplifier operates efficiently between 2.5 V and 5.5 V supply voltages, making it suitable for modern low-voltage systems.
Its rail-to-rail input and output stages provide maximum signal swing, while the ultra-low input bias current of 100 pA and low input offset voltage contribute to high precision and minimal signal distortion. With a high output current capability of 35 mA, the TSV914IPT can drive demanding loads with stability and reliability.
The robust design includes internal ESD protection of 5 kV and meets the automotive-grade AEC-Q100 standard, making it ideal for harsh environments with temperature ranges from -40°C to 125°C. Dimensions of 5.1 mm length, 4.5 mm width, and 1.05 mm height allow for compact PCB layouts, supporting miniaturization trends in electronic manufacturing.
Operates with 4 independent operational amplifier channels in one package. Gain bandwidth product of 8 MHz suitable for high-speed signal processing. Low supply current of approximately 1.1 mA at 5 V preserves battery life in portable designs.
Input and output rail-to-rail operation maximize dynamic range. Low input offset voltage ensures signal accuracy, with a maximum of 1.5 mV for A grade devices. Slew rate of 4.5 V/μs supports fast signal transitions. Compliant with RoHS environmental standards.
AEC-Q100 qualification for use in automotive applications.
This operational amplifier series is ideal for sensor interface circuits, battery-powered and portable devices, and active filtering applications in industrial and automotive sectors. Its balance of speed, power efficiency, and precision makes it a versatile component for various analog signal conditioning needs.
Explore a comprehensive selection of Operational Amplifiers and semiconductor components at EnvMart to optimize your design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain-bandwidth product of this operational amplifier is 8 MHz, allowing for fast and accurate signal amplification.
It is capable of delivering a high output current of up to 35 mA, suitable for driving demanding loads.
This operational amplifier operates within a supply voltage range of 2.5 V to 5.5 V, making it flexible for low voltage applications.
The operating temperature range is from -40°C to 125°C, which is suitable for both automotive and industrial environments.
This model features four independent operational amplifier channels in a single package.
The dimensions are 5.1 mm in length, 4.5 mm in width, and 1.05 mm in height, allowing for a compact PCB footprint.
The input bias current is typically 100 pA, which is beneficial for precision applications.
The slew rate is 4.5 V/μs, enabling high-speed signal processing.
Yes, it is RoHS compliant and meets the automotive standard AEC-Q100 qualification.
The maximum input offset voltage for A grade devices is 1.5 mV, ensuring signal accuracy.
It comes in a 14-pin TSSOP surface-mount package, suitable for compact designs.
This operational amplifier is ideal for sensor interface circuits, battery-powered devices, and active filtering applications in industrial and automotive sectors.
