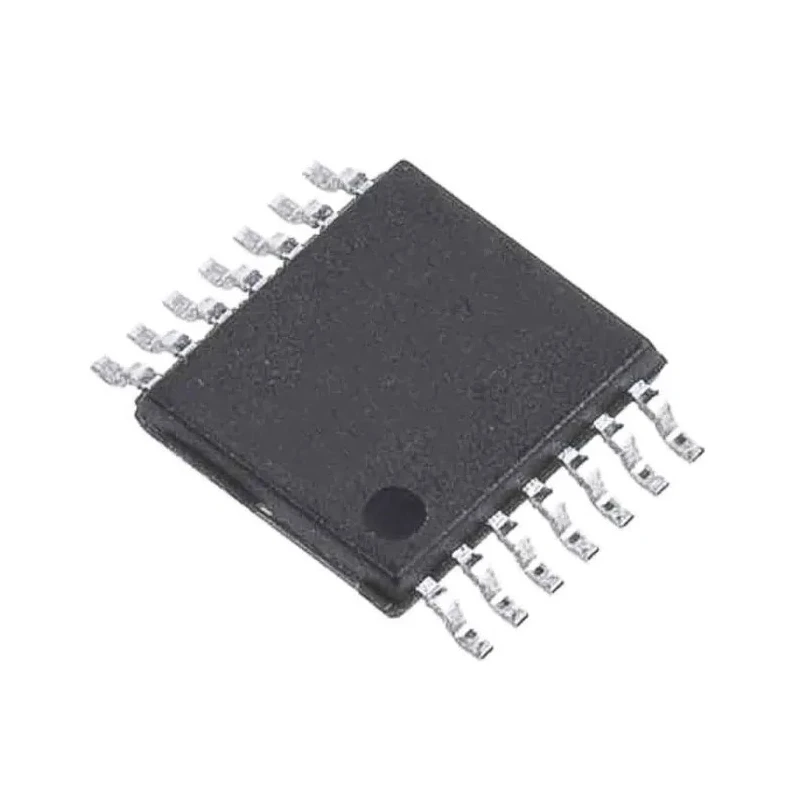

STMicroelectronics Operational Amplifier, 4 MHz Gain Bandwidth, 14-Pin TSSOP, 12V, Quad Channel TS924IPT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.05mm |
| Length | 5.1mm |
| Model | TS924IPT |
| Width | 4.5mm |
| Mount Type | Surface |
| Low Noise | 9 nV/√ Hz |
| Series | TS924 |
| Output Current | 80mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 4MHz |
| Input Bias Current | 100 nA |
| Vos - Input Offset Voltage | 3 mV |
| Slew Rate | 1.3V/μs |
| High output current | 80 mA (able to drive 32 Ω loads) |
| Input Offset Current | 30 nA |
| ESD internal protection | 3 kV |
Key Features
- Features rail-to-rail input and output for full range signal processing.
- Low noise level of 9 nV/√Hz ensures precise audio and signal applications.
- High output current of 80 mA enables driving low impedance loads up to 32 ohms.
- Operates efficiently within 2.7 V to 12 V power supply range.
- Specifications include low input offset voltage and excellent slew rate of 1.3 V/μs.
- Surface mount type suitable for compact PCB designs.
- Wide temperature operation from -40°C to 125°C for industrial environments.
- Complies with RoHS standards ensuring environmental safety.
Product Description
STMicroelectronics TS924IPT is a high-performance quad operational amplifier designed for low voltage and battery-operated applications. Featuring a 4 MHz gain bandwidth and rail-to-rail input/output capability, this device supports precise signal amplification in compact 14-pin TSSOP surface-mount packaging.
The amplifier supports supply voltages ranging from 2.7 V to 12 V and delivers a high output current of up to 80 mA, enabling it to drive loads as low as 32 ohms. Its low noise figure of 9 nV/√Hz and low distortion characteristics make it ideal for high-quality audio and industrial signal processing environments.
Equipped with low input offset voltage (900 μV max for TS924A), the device ensures minimal signal drift and high accuracy. The slew rate of 1.3 V/μs supports fast signal transitions. TS924IPT is protected against ESD up to 3 kV and offers latch-up immunity, enhancing system robustness.
Designed to operate across a broad temperature range from -40°C to 125°C, this amplifier is suitable for demanding industrial and automotive applications, holding the AEC-Q100 qualification. It complies with RoHS directives, ensuring compliance with environmental regulations.
The device’s compact 14-pin TSSOP package (5.1 mm length, 4.5 mm width, 1.05 mm height) facilitates efficient PCB mounting and space-saving design. This operational amplifier is widely used in industrial automation, audio equipment, battery-powered devices, and automotive electronics.
Features rail-to-rail input and output for full range signal processing. Low noise level of 9 nV/√Hz ensures precise audio and signal applications. High output current of 80 mA enables driving low impedance loads up to 32 ohms.
Operates efficiently within 2.7 V to 12 V power supply range. Specifications include low input offset voltage and excellent slew rate of 1.3 V/μs. Surface mount type suitable for compact PCB designs. Wide temperature operation from -40°C to 125°C for industrial environments.
Complies with RoHS standards ensuring environmental safety. Includes ESD internal protection up to 3 kV for enhanced device reliability. Automotive qualified with AEC-Q100 standard for high-reliability automotive systems.
Explore the Operational Amplifier category for additional STMicroelectronics high-quality semiconductor devices suitable for your electronics design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TS924IPT has a gain bandwidth product of 4 MHz, which supports its performance in signal amplification applications.
It can deliver a maximum output current of 80 mA, allowing it to drive low impedance loads down to 32 ohms.
This operational amplifier operates efficiently within a supply voltage range of 2.7 V to 12 V.
The dimensions of this model are 5.1 mm in length, 4.5 mm in width, and 1.05 mm in height.
It operates across a wide temperature range from -40°C to 125°C, making it suitable for industrial environments.
This model is packaged in a compact 14-pin TSSOP surface mount type, ideal for space-saving PCB designs.
The TS924IPT has a maximum input offset voltage of 3 mV, ensuring minimal signal drift.
Yes, it complies with RoHS standards, ensuring it meets environmental safety regulations.
This operational amplifier is qualified under the AEC-Q100 standard, which is designed for high-reliability automotive systems.
The slew rate of this model is 1.3 V/μs, supporting fast signal transitions.
The TS924IPT features internal ESD protection up to 3 kV, enhancing its reliability in various applications.
The input bias current for the TS924IPT is 100 nA, which contributes to its overall performance in precision applications.
