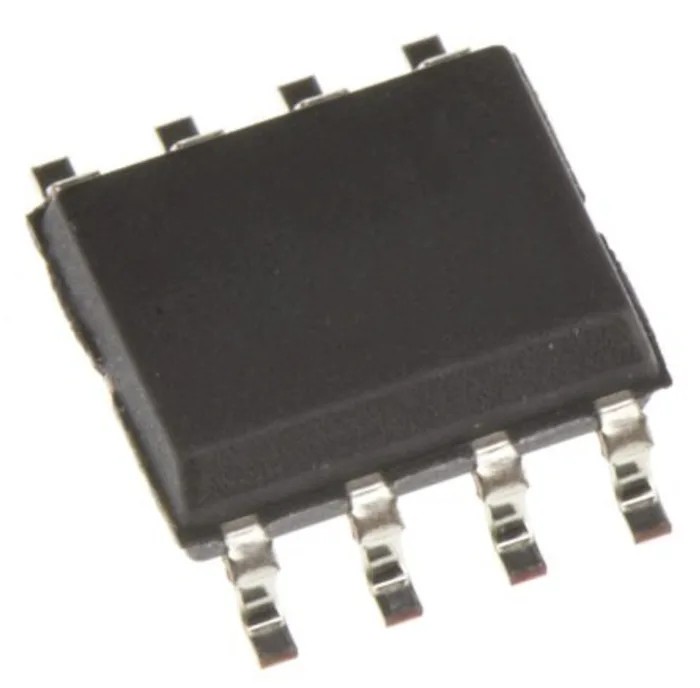

STMicroelectronics Operational Amplifier 4 MHz 8-Pin SO Surface Mount TL082BIYDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.5mm |
| Length | 5mm |
| Model | TL082BIYDT |
| Width | 4mm |
| Mount Type | Surface |
| Series | TL082 |
| Output Current | 60mA |
| Maximum Operating Temperature | 105°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 6V |
| GBP - Gain Bandwidth Product | 4MHz |
| Input Bias Current | 20 nA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 16V/μs |
| Input Offset Current | 4 nA |
| High Slew Rate | 16 V/μs (typical) |
Key Features
- Features dual JFET input stage for high input impedance.
- Wide supply voltage range from 6 V to 36 V.
- High slew rate of 16 V/μs for fast signal response.
- Low input bias current of 20 nA and offset voltage of 5 mV.
- Includes output short-circuit protection ensuring device safety.
- Operating temperature range from -40°C to 105°C for industrial applications.
- Compact package dimensions of 5 mm length, 4 mm width, and 1.5 mm height.
- Complies with RoHS and automotive standard AEC-Q100.
Product Description
STMicroelectronics TL082BIYDT is a dual operational amplifier with high-speed JFET input, tailored for various industrial and commercial electronics applications. It supports a wide supply voltage of 6 V to 36 V and delivers a gain bandwidth product of 4 MHz, making it suitable for precision amplification tasks.
The device features an 8-pin small outline (SO) package optimized for surface mounting, with compact dimensions of 5 mm length, 4 mm width, and 1.5 mm height. It exhibits a high slew rate of 16 V/μs, allowing rapid signal changes, low input bias current of 20 nA, and low offset voltage of 5 mV, ensuring minimal signal distortion.
The TL082BIYDT includes output short-circuit protection and operates reliably within a temperature range of -40°C to 105°C, meeting the automotive grade standard AEC-Q100 and RoHS compliance. Its internal frequency compensation supports stable and latch-up free operation, making it well-suited for applications in analog signal conditioning, filtering, and data acquisition in industrial, laboratory, and automotive environments.
Dual JFET input configuration for high input impedance and low noise. Wide common-mode voltage range and differential voltage range. Output short-circuit protection enhances reliability in harsh conditions. Low offset voltage temperature coefficient for stable operation.
Compatible with various electronic component assemblies requiring surface-mounted op amps. RoHS compliant and automotive standard qualified. Sleek 8-pin SO package for easy PCB integration.
Explore the full range of STMicroelectronics Operational Amplifiers and enhance your electronics design projects with reliable and efficient analog components available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 4 MHz, making it suitable for precision amplification tasks.
It supports a wide supply voltage range from 6 V to 36 V.
This model operates reliably within a temperature range of -40°C to 105°C, suitable for industrial applications.
It is packaged in an 8-pin small outline (SO) surface mount configuration with dimensions of 5 mm length, 4 mm width, and 1.5 mm height.
The TL082BIYDT features a high slew rate of 16 V/μs, allowing for rapid signal changes.
It has a low input bias current of 20 nA, which helps minimize signal distortion.
Yes, it includes output short-circuit protection, enhancing reliability in harsh conditions.
This operational amplifier complies with the automotive standard AEC-Q100.
It is a dual operational amplifier, featuring two channels.
The input offset voltage for the TL082BIYDT is 5 mV, contributing to its precision in signal processing.
The TL082BIYDT is manufactured in India.
It can deliver a maximum output current of 60 mA.
