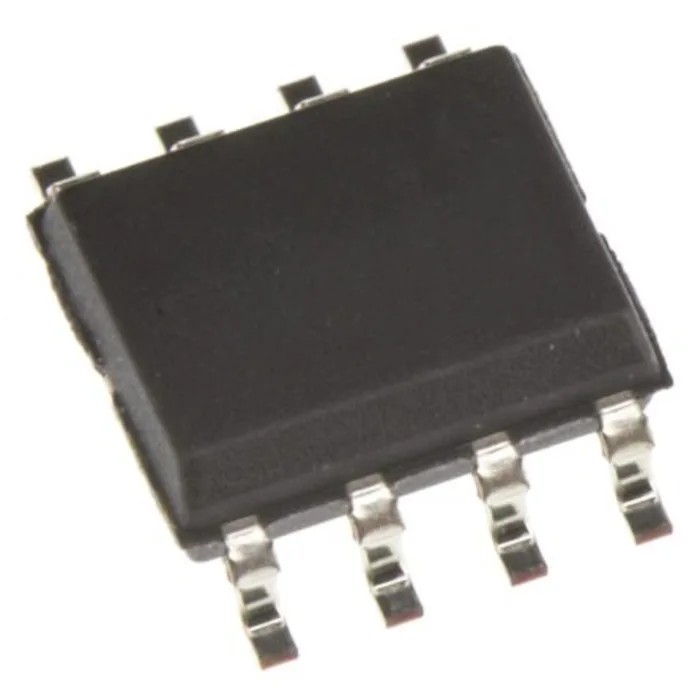

STMicroelectronics Operational Amplifier 1 MHz Gain Bandwidth, 8-Pin SO Surface Mount TL061CDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.5mm |
| Length | 5mm |
| Model | TL061CDT |
| Width | 4mm |
| Mount Type | Surface |
| Series | TL061 |
| Maximum Operating Temperature | 70°C |
| Package Type | SO |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 6V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 10 nA |
| Vos - Input Offset Voltage | 20 mV |
| Slew Rate | 3.5V/μs |
| Input Offset Current | 5 nA |
Key Features
- Offers a gain bandwidth product of 1 MHz for precise signal amplification.
- Comes in an 8-pin small-outline (SO) surface mount package.
- Supports supply voltages ranging from 6 V to 36 V.
- Has low input offset voltage of 20 mV and low bias current of 10 nA.
- Operates efficiently in temperature ranges from 0°C to 70°C.
- Features a high slew rate of 3.5 V/μs for rapid signal response.
- Includes output short-circuit protection for device safety.
- Utilizes a high input impedance JFET input stage for reduced loading effect.
Product Description
STMicroelectronics TL061CDT operational amplifier is designed for reliable performance in electronic circuits requiring low power consumption and high precision signal amplification. Featuring a 1 MHz gain bandwidth product, this device ensures accurate amplification of input signals within various industrial and commercial applications.
Packaged in an 8-pin small outline (SO) surface mount package, it supports supply voltages from 6 V up to 36 V, making it adaptable across a wide voltage range. The device is optimized for low input offset voltage of 20 mV and low input bias current of 10 nA, contributing to minimal signal distortion and enhanced accuracy.
The TL061CDT incorporates a high slew rate of 3.5 V/μs, which enables rapid response to signal changes, critical for dynamic electronic systems. Its high input impedance JFET input stage minimizes the loading effect on input signals, preserving signal integrity during processing.
Designed to operate efficiently between 0°C and 70°C, this operational amplifier is suitable for typical environmental conditions found in industrial and commercial electronics. The device includes output short-circuit protection, ensuring durability and safety in diverse circuit designs.
This operational amplifier finds applications in instrumentation, signal conditioning, active filters, and other analog signal processing tasks within electronics manufacturing, automation systems, and research laboratories.
Gain bandwidth product of 1 MHz for accurate amplification. Compact 8-pin SO surface mount package. Wide supply voltage range: 6 V to 36 V. Low input offset voltage and bias current enhance precision. High slew rate of 3.5 V/μs for fast signal response.
High input impedance JFET input stage reduces loading. Output short-circuit protection for device safety. Operating temperature from 0°C to 70°C. Ideal for industrial, laboratory, and electronic design applications. Explore the range of STMicroelectronics Operational Amplifiers and semiconductor devices on EnvMart to meet your advanced electronics and circuit design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TL061CDT operational amplifier has a gain bandwidth product of 1 MHz, which is suitable for precise signal amplification.
This operational amplifier supports a supply voltage range from 6 V to 36 V, making it adaptable for various applications.
The input offset voltage for the TL061CDT is 20 mV, contributing to its precision in signal amplification.
It operates efficiently within a temperature range of 0°C to 70°C, suitable for typical industrial and commercial environments.
The TL061CDT has a high slew rate of 3.5 V/μs, enabling rapid response to signal changes.
This model features a single channel, making it suitable for various signal processing tasks.
The dimensions of the TL061CDT are 5 mm in length, 4 mm in width, and 1.5 mm in height.
It is packaged in an 8-pin small-outline (SO) surface mount package, facilitating easy integration into circuits.
The input bias current for the TL061CDT is 10 nA, which helps minimize signal distortion.
Yes, it includes output short-circuit protection to ensure device safety during operation.
This operational amplifier is suitable for applications in instrumentation, signal conditioning, and active filters, among others.
It utilizes a high input impedance JFET input stage, which reduces the loading effect on input signals.
