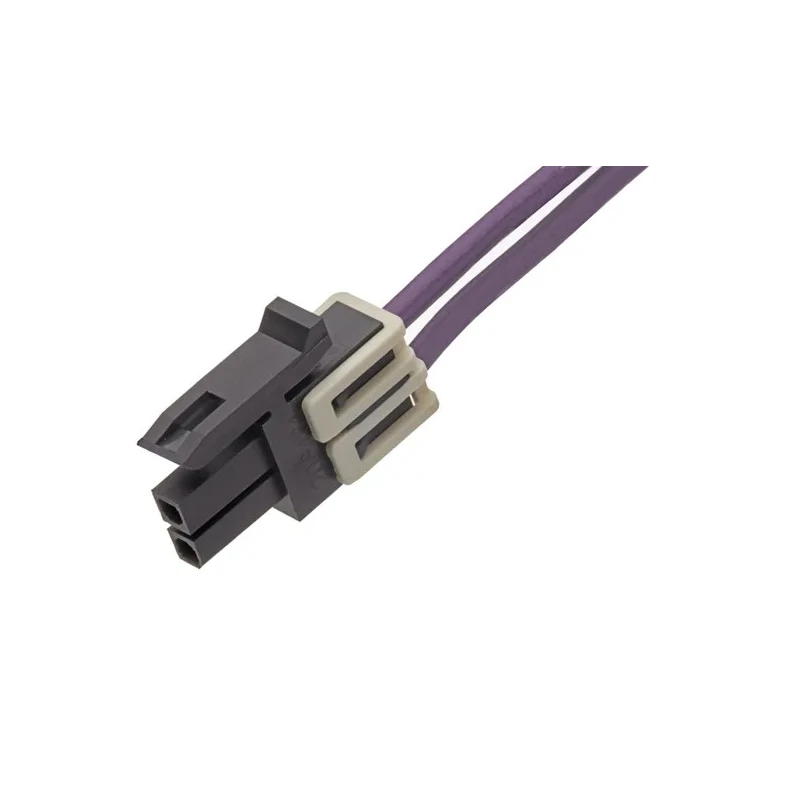

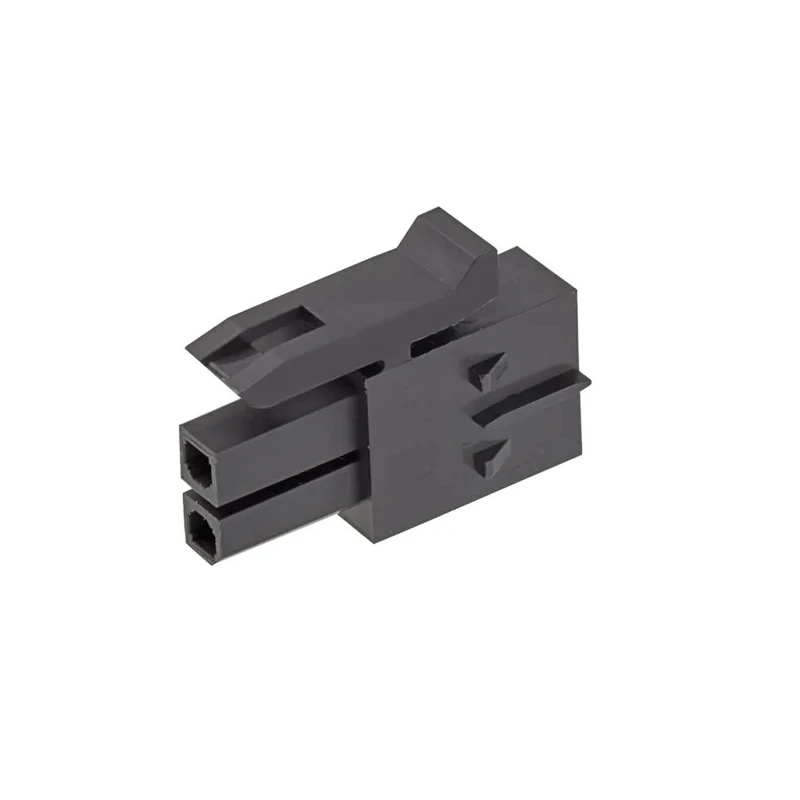

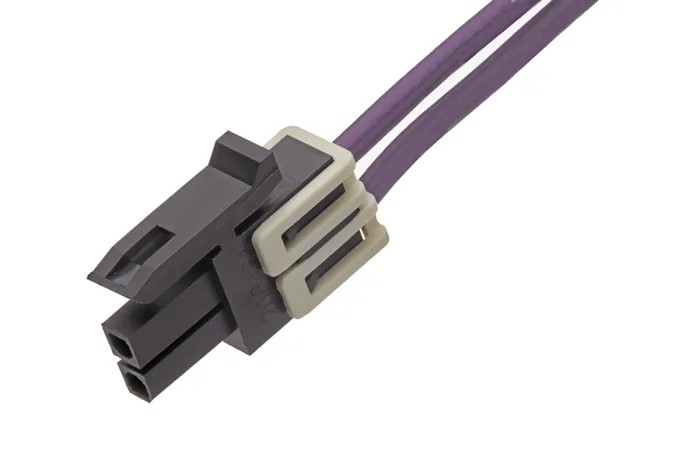

Molex Micro-Fit+ Female PCB Connector Housing 3 mm Pitch 2 Way 2 Row Straight 206461-0200
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 3.85mm |
| Width | 16mm |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Series | Micro-Fit+ |
| Number of Rows | 2 |
| Pitch | 3mm |
| For Use With | 206460 Micro-Fit+ Female Terminal |
| Number of Contacts | 2 |
| Connector Gender | Female |
Key Features
- Fully isolated contacts prevent electrical arcing.
- 40% reduced mating force for easier assembly.
- Unique polarized housing ensures proper mating orientation.
- Compact size offers a smaller PCB footprint for design flexibility.
- Durable polyamide housing material enhances reliability.
- Compatible with 206460 Micro-Fit+ female terminals.
- Enhanced terminal position assurance for stability and operator ease.
- V-0/Glow Wire combination resin improves safety and reduces material costs.
Product Description
Molex 206461-0200 female PCB connector housing is engineered with a 3 mm pitch and designed for 2 way, 2 row, straight cable mount configuration. The Micro-Fit+ series housing features fully isolated contacts to prevent potential electrical arcing, enhancing circuit safety and longevity.
This connector housing incorporates a unique design that reduces the mating force by 40%, significantly decreasing operator fatigue during assembly compared to standard Micro-Fit 3.0 connectors. Its fully polarized structure ensures proper mating orientation, preventing misalignment or damage and maintaining compatibility with existing headers and plugs.
The housing is made from robust polyamide material rated V-0/Glow Wire, offering high flame retardance while reducing material and labor costs. Its compact design reduces PCB footprint, providing valuable flexibility for modern electronic designs.

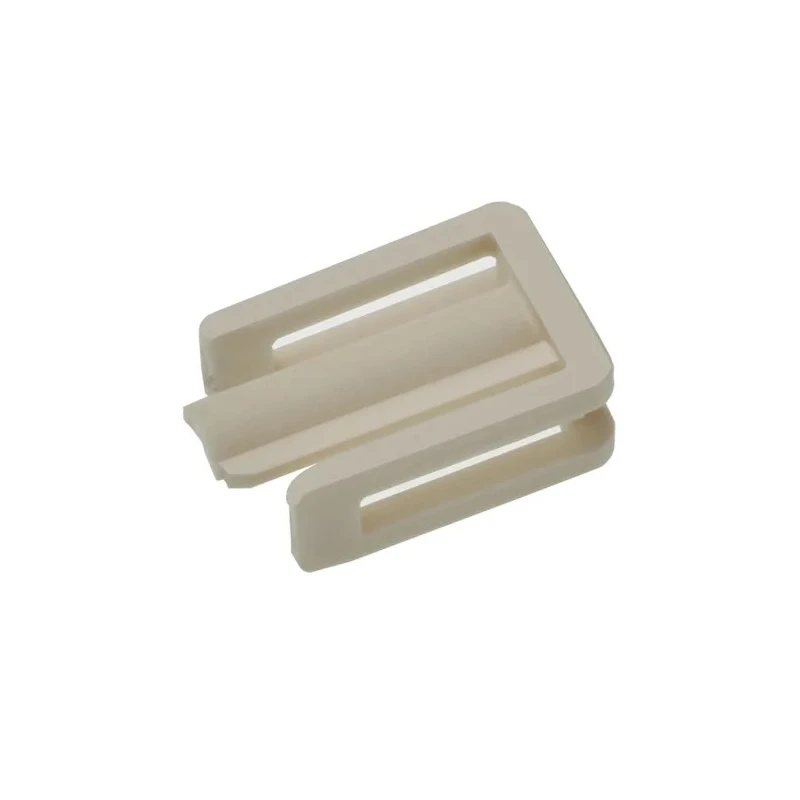

Enhanced Terminal Position Assurance (TPA) design secures terminals within the connector body, promoting stability and ease of assembly. The unique keying design further prevents mis-mating, distinguishing it from standard Micro-Fit 3.0 connectors.
This connector housing is suitable for a wide range of industrial and commercial applications including consumer electronics such as washers, dryers, printers, and security systems; telecommunications equipment like routers and servers; medical diagnostic and monitoring devices; sustainable energy systems like solar power installations; and automotive harness manufacturing for non-sealed device applications.
Fully isolated contacts prevent electrical arcing. Reduced mating force improves assembly ease. Fully polarized housing assures correct orientation. Compact PCB footprint supports flexible design. Durable polyamide V-0/Glow Wire rated housing material.
Compatible with 206460 Micro-Fit+ female terminal. Enhanced TPA design stabilizes terminals. Unique keying deters mis-mating errors. Applicable in consumer, telecom, medical, solar, and automotive sectors. Explore our Electronics & Electricals Connectors category for more PCB Connector Housing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this connector housing is 3 mm.
This model features 2 rows.
The length of this connector housing is 3.85 mm, and the width is 16 mm.
The housing is made from polyamide material, which is rated V-0/Glow Wire for flame retardance.
This connector housing supports cable mount type configuration.
Yes, it is compatible with the 206460 Micro-Fit+ female terminal.
This model has a reduced mating force by 40%, which improves assembly ease, and features a fully polarized design to ensure proper mating orientation.
It is suitable for a wide range of applications including consumer electronics, telecommunications equipment, medical devices, sustainable energy systems, and automotive harness manufacturing.
The Enhanced Terminal Position Assurance design secures the terminals within the connector body, promoting stability and ease of assembly.
The connector gender of this housing is female.
The country of origin for this connector housing is China.
The unique keying design prevents mis-mating, distinguishing it from standard Micro-Fit 3.0 connectors.
