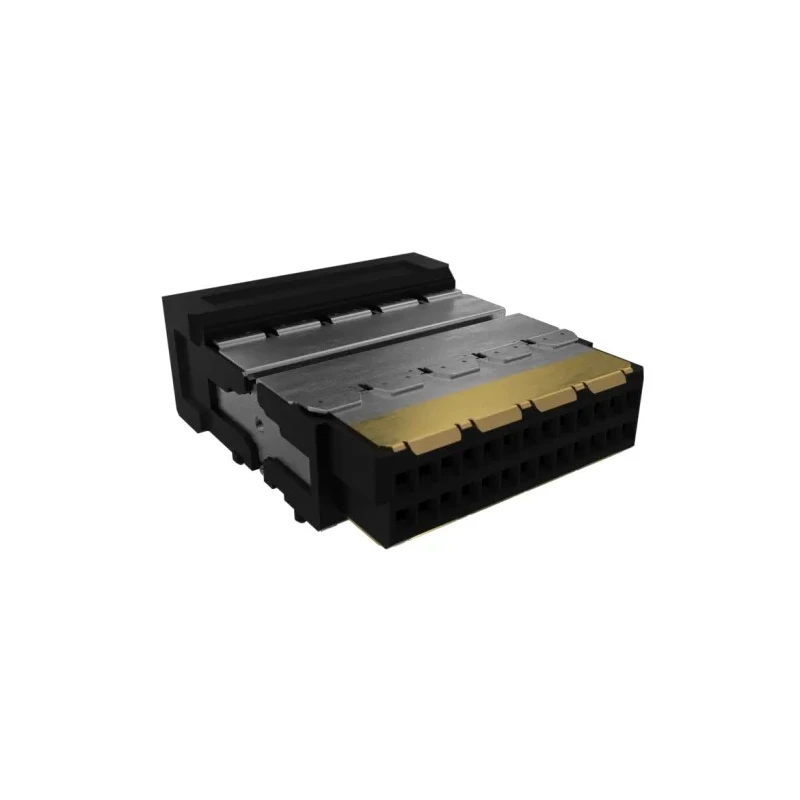

Amphenol Communications Solutions Minitek Microspeed Series Free Hanging PCB Connector Housing, 26-Contact 10147075-2600RLF
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | Amphenol Communications Solutions |
| Current | 1A |
| Model | 10147075-2600RLF |
| Mount Type | Free Hanging |
| Housing Material | LCP |
| Series | Minitek Microspeed |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board Connector |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Number of Contacts | 26 |
Key Features
- Supports current rating of 1 ampere for reliable electrical connection.
- Constructed from LCP housing material for durability and heat resistance.
- Designed for board-to-board applications with high-speed data transfer capability up to 25 Gb/s.
- Operates over a wide temperature range from -55°C to 125°C suitable for harsh environments.
- Offers a shielded design to enhance electromagnetic compatibility and reduce coupling inductance.
- Includes poka yoke polarization to prevent visual mismating and ensure correct installation.
- Ideal for industrial and electronic equipment requiring secure and compact PCB connections.
Product Description
Amphenol Communications Solutions 10147075-2600RLF is a Minitek Microspeed Series PCB Connector Housing designed for free hanging mounting with 26 contacts in a 2 row configuration and 1 mm pitch.
This board-to-board connector housing supports high-speed data transfer with performance up to 25 Gb/s, making it suitable for advanced electronic and industrial applications. Constructed with durable Liquid Crystal Polymer (LCP) housing, it offers excellent thermal and mechanical stability across a wide operating temperature range from -55°C to 125°C.
The connector features a shielded design to reduce electromagnetic interference, providing superior EMC performance for sensitive electronic systems. It supports a rated current of 1 ampere and voltage up to 500 volts, ensuring reliable electrical connections in demanding environments.
The design incorporates a poka yoke polarization feature to prevent visual mismating, simplifying assembly and enhancing reliability.
Ideal for use in industrial, electronic, communications, and computing equipment, this connector housing enables multiple PCB orientation applications and blind mating installation.
Supports current rating of 1 ampere for reliable electrical connectivity. Housing is made of LCP material for high durability and thermal resistance. Shielded design reduces electromagnetic interference and improves EMC performance.
Poka yoke polarization prevents visual mismatching during assembly. Wide operating temperature range from -55°C to 125°C supports harsh conditions. Voltage rating of 500 V suitable for diverse industrial applications. Designed for high-speed data applications up to 25 Gb/s.
Free hanging mount type allows ease of installation and flexible PCB orientation. This product is manufactured in China and is supplied new for immediate industrial deployment. Explore the wide range of PCB connectors and electronic components at EnvMart for your industrial and technological needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports high-speed data transfer capability of up to 25 Gb/s, making it suitable for advanced electronic and industrial applications.
This model has a current rating of 1 ampere, ensuring reliable electrical connections.
The voltage rating for this connector housing is 500 volts, suitable for diverse industrial applications.
It features a free hanging mount type, allowing ease of installation and flexible PCB orientation.
The housing is constructed from Liquid Crystal Polymer (LCP), providing durability and heat resistance.
It operates over a wide temperature range from -55°C to 125°C, making it suitable for harsh environments.
This connector housing features 26 contacts arranged in a 2 row configuration with a 1 mm pitch.
Yes, it includes a poka yoke polarization feature designed to prevent visual mismating, simplifying assembly and enhancing reliability.
The shielded design enhances electromagnetic compatibility and reduces coupling inductance, providing superior EMC performance for sensitive electronic systems.
It is ideal for use in industrial, electronic, communications, and computing equipment, enabling multiple PCB orientation applications.
This product is manufactured in China and is supplied new for immediate industrial deployment.
It belongs to the Minitek Microspeed Series, designed for board-to-board applications.
