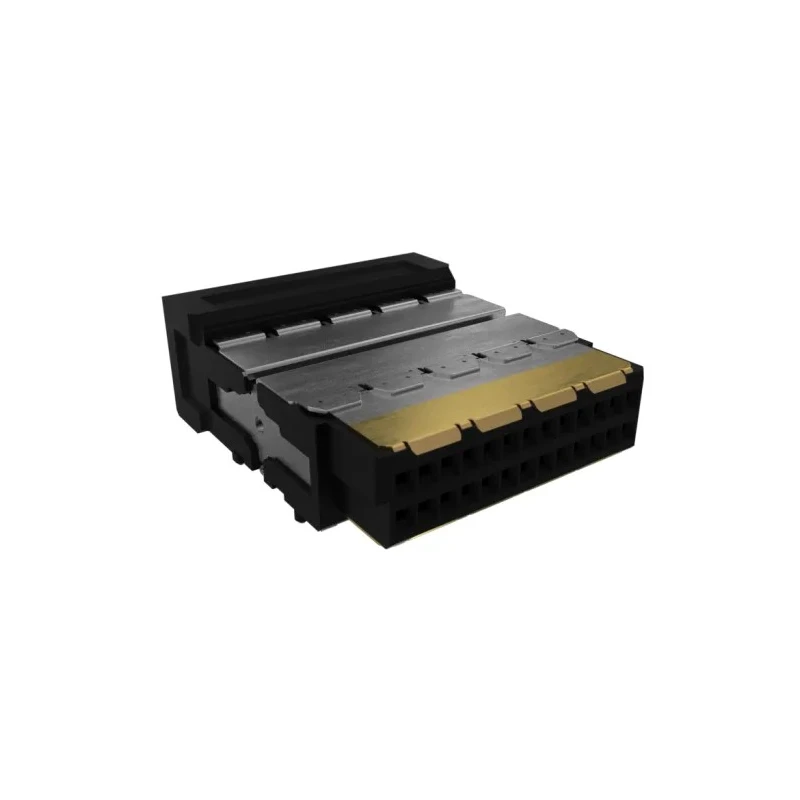

Amphenol Communications Solutions Minitek Microspeed Series Free Hanging PCB Connector Housing, 26-Contact 10147075-2600RLF
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | Amphenol Communications Solutions |
| Current | 1A |
| Model | 10147075-2600RLF |
| Mount Type | Free Hanging |
| Housing Material | LCP |
| Series | Minitek Microspeed |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board Connector |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Number of Contacts | 26 |
Key Features
- Supports high-speed performance up to 25 Gb/s for robust signal transmission.
- Shielded design provides excellent electromagnetic compatibility (EMC).
- Durable LCP housing material suited for industrial environments.
- Free hanging mount type designed for flexible PCB orientation.
- Operating temperature range from -55°C to 125°C for harsh conditions.
- Combo dual-beam contact ensures robust mating and signal integrity.
- Features poka-yoke polarization to prevent visual mismating.
- Supports blind-mating for ease of assembly in complex systems.
Product Description
Amphenol Communications Solutions 10147075-2600RLF Minitek Microspeed Series free hanging PCB connector housing provides 26 contacts arranged in 2 rows with a 1.00 mm pitch, offering a compact and reliable board-to-board connector solution. This connector supports high-speed data transmission of up to 25 Gb/s, making it ideal for demanding industrial and electronic applications.
The connector features a shielded design that significantly enhances electromagnetic compatibility (EMC) by reducing coupling inductance. Its durable housing is made from liquid crystal polymer (LCP), ensuring robust mechanical and thermal stability within an operating temperature range from -55°C to 125°C. The free hanging mount type allows for versatile PCB orientations and applications.
This series also integrates a dual-beam contact design that provides a robust connection and improved signal quality. A poka-yoke polarization mechanism helps prevent misalignment during assembly. Additionally, the connector supports blind-mating, facilitating easier installation in complex electronic systems.
These features make the 10147075-2600RLF highly suitable for industrial automation, telecommunications, computing, and other commercial electronic equipment requiring compact, high-speed PCB connections with excellent EMC performance.
High-speed data support up to 25 Gb/s ensures fast and reliable communication. Shielded design improves electromagnetic compatibility for noise reduction. LCP housing material offers durability and thermal resistance. Free hanging mount allows flexible integration into PCB layouts.
500 V voltage rating supports robust electrical performance. Wide operating temperature range of -55°C to 125°C for varied environments. Dual-beam contact system enhances connection reliability. Poka-yoke polarization prevents connector mismatches.
Blind-mating capability simplifies assembly in tight spaces.
Choose this connector housing for your next project requiring a compact, reliable interface in industrial, commercial, or telecom electronics. Explore more PCB Connector Housing and related components on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector housing supports high-speed data transmission of up to 25 Gb/s, making it suitable for demanding applications.
The operating temperature range for this model is from -55°C to 125°C, allowing it to function in harsh environments.
The housing is made from liquid crystal polymer (LCP), which provides mechanical and thermal stability.
This connector housing features 26 contacts arranged in 2 rows with a 1.00 mm pitch.
It utilizes a free hanging mount type, allowing for flexible PCB orientation.
The voltage rating for this connector is 500V, supporting robust electrical performance.
Yes, this model supports blind-mating, which simplifies assembly in complex electronic systems.
The current rating for this connector housing is 1A, which is suitable for various applications.
The poka-yoke polarization feature helps prevent misalignment during assembly, ensuring correct connections.
This connector housing is suitable for industrial automation, telecommunications, computing, and other commercial electronic equipment requiring compact, high-speed connections.
The shielded design of this connector significantly enhances electromagnetic compatibility (EMC) by reducing coupling inductance.
This model is classified as a board-to-board connector, designed for reliable connections between PCBs.
