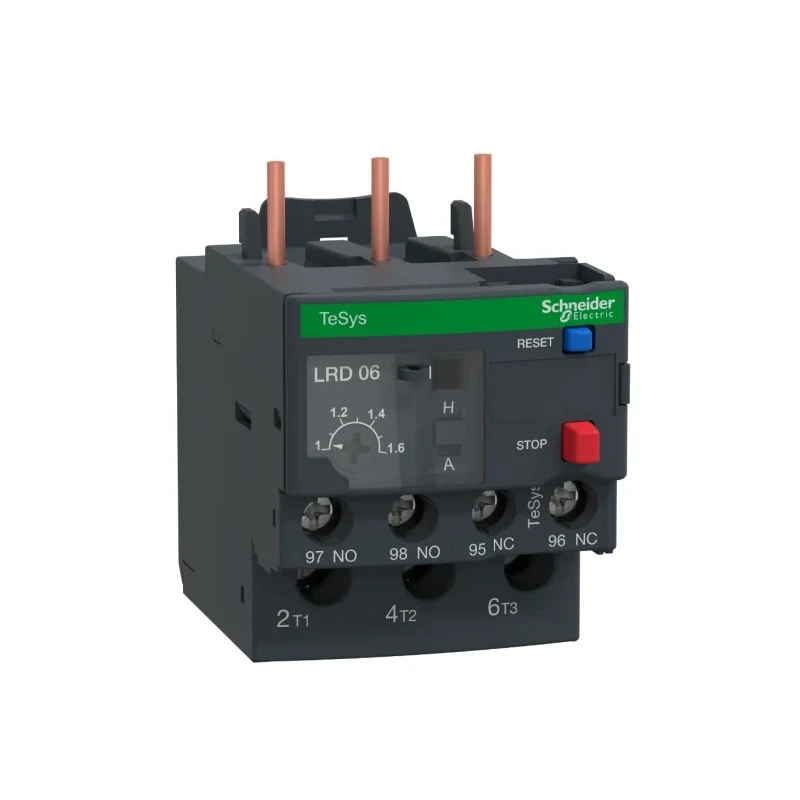

Schneider Electric Thermal Overload Relay 1 NO/1 NC, 1A, 1.6 A F.L.C, 1.6A Contact Rating, 550 W, DIN Rail Mount LR3D06

Schneider Electric LR3D06 Thermal Overload Relay is designed for industrial and commercial applications where motor protection from overload conditions is critical. Featuring a compact DIN Rail mount design, this relay offers versatile installation and reliable performance for controlling motor circuits with ratings from 1 to 1.6 amperes.

The thermal overload relay includes a 1 normally open (NO) and 1 normally closed (NC) contact configuration with a contact current rating of 1.6 A and a power rating of 550 watts, ensuring precise motor load monitoring and protection. The push button reset method enables quick and easy manual reset after tripping, reducing downtime.

Built to withstand a wide operating temperature range from -20°C to 60°C, and with an IP20 rating, the relay safeguards against solid particles while maintaining operational reliability in varying environments. The screw-type terminals provide secure electrical connections, helping maintain system integrity.

The device measures 66 mm in length, 45 mm in width, and 70 mm in depth, making it compact enough for confined control panels. Additionally, it offers two auxiliary contacts for enhanced control and monitoring options.

This Schneider Electric thermal overload relay complies with numerous stringent international standards and approvals including IEC, EN/IEC 60947, ATEX, RINA, EN 50495, EAC, DNV GL, CSA, BV, and CCC, ensuring high quality and safety in diverse industrial environments.

Ideal for automation, electrical control gear, manufacturing, and industrial motor protection applications, this thermal overload relay is a dependable solution to improve equipment safety and operational efficiency.

Compact DIN Rail mount design suitable for control panels. Power rating of 550 W for reliable motor overload protection. Screw terminal type ensures secure electrical connections. Push button reset allows easy manual operation after trip.

Wide operating temperature range from -20°C to 60°C. Supports contact voltage up to 690 V AC. IP20 protection rating guards against solid foreign objects. Includes 2 auxiliary contacts to enhance control functionality. Measured dimensions: 66 mm length, 45 mm width, and 70 mm depth.

Complies with international standards including IEC, EN/IEC 60947, ATEX, and others. Explore more Schneider Electric products and Thermal Overload Relays in EnvMart's Electronics & Electricals category for advanced control and automation solutions.
