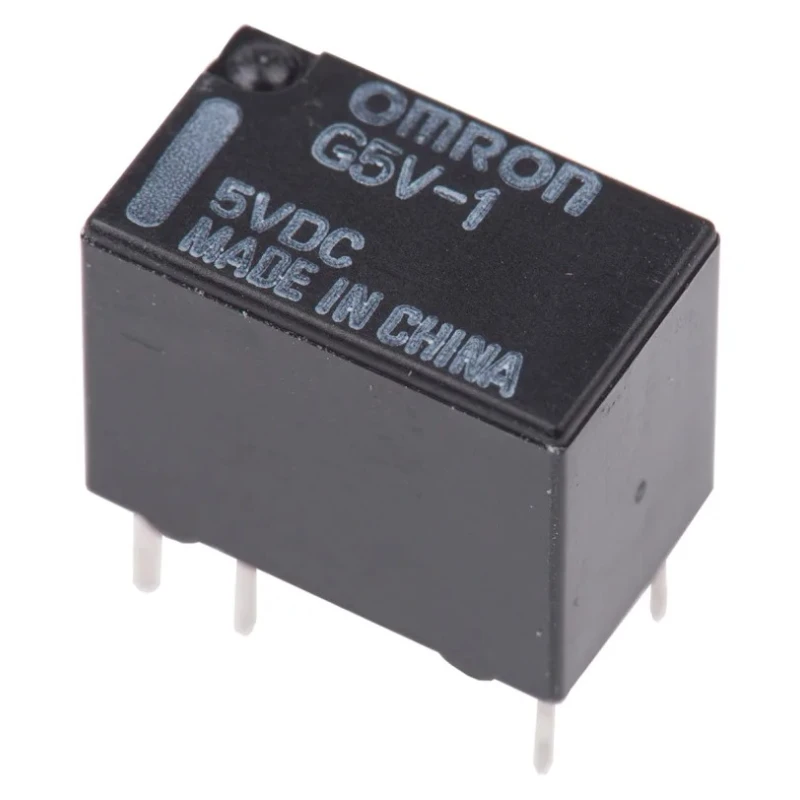

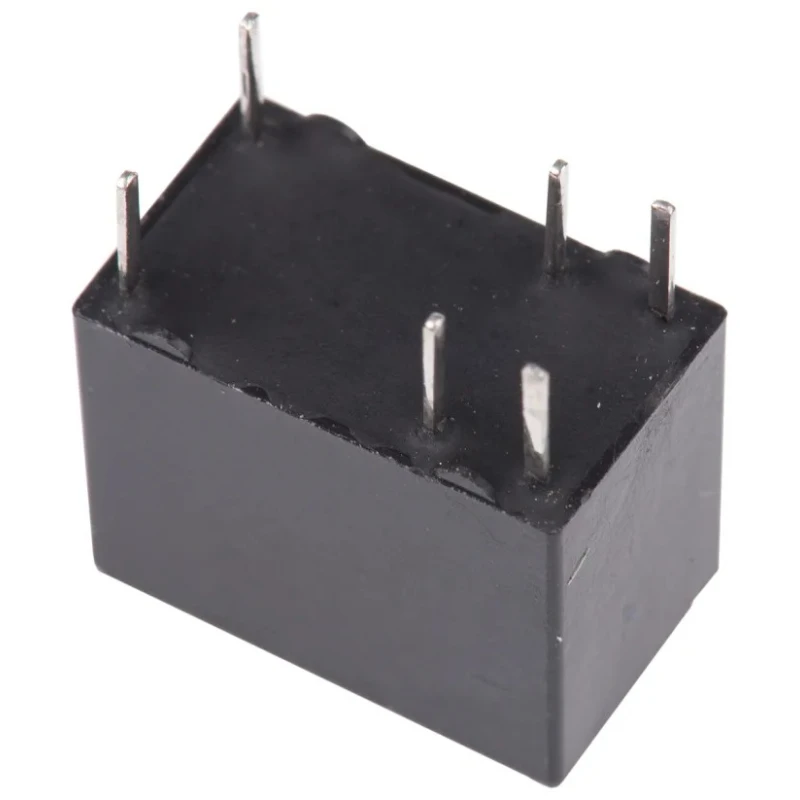

Omron PCB Signal Relay, 5V DC Coil, 2A Switching Current, SPDT Contact Configuration G5V-1-DC5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 10mm |
| Length | 10mm |
| Model | G5V-1-DC5 |
| Width | 7.5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IME |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Coil Resistance | 166Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 150mW |
| RS PRO PCB Signal Relay, 5V Coil, 2A, SPDTRS Stock No. | 476-757Brand: RS PRO |
| Aratas PCB Signal Relay, 5V dc Coil, 2A, SPDTBrand | Omron |
Key Features
- High sensitivity relay with low power consumption of 150 mW.
- Features gold-plated contacts ensuring reliable performance.
- Compact mouth dimensions of approximately 12.5 x 10 x 7.5 mm.
- Fully sealed construction for enhanced durability and reliability.
- Suitable for telecommunications, security equipment, and computer peripherals.
- Supports switching at 125V AC and 60V DC voltages.
- PCB mount type with through-hole terminal configuration.
- Operates effectively in temperatures ranging from -40°C to +70°C.
Product Description
Omron G5V-1-DC5 PCB Signal Relay is designed for high sensitivity and low power consumption with a coil voltage of 5V DC and a switching current of 2A. This signal relay features a single pole double throw (SPDT) contact configuration, making it ideal for precise signal switching applications.
The relay has a compact size of approximately 12.5 x 10 x 7.5 mm, allowing easy integration into PCB designs. Gold-plated contacts and single crossbar construction guarantee reliable electrical connection and longevity. Its fully sealed construction enhances durability against environmental influences.
This relay operates within a temperature range of -40°C to 70°C, suitable for various industrial and commercial applications. It supports switching voltages of up to 125V AC and 60V DC, giving flexibility across different signal circuits.
Designed primarily for telecommunications, security systems, and computer peripherals, this Omron relay meets FCC and RoHS compliance, aligning with industry standards. High sensitivity and low power consumption at 150 mW.
Gold-plated contacts promote superior conductivity and prevent corrosion. Compact PCB through-hole mount design for easy integration. Operating temperature range from -40°C to +70°C for versatile environments. Switching capability suitable for AC and DC circuits.
Fully sealed construction for protection against contaminants. Complies with RoHS environmental standards.
This relay is ideal for industrial, telecommunications, security, and computing applications that demand reliable and compact signal switching components. The model G5V-1-DC5 by Omron integrates seamlessly into advanced electronic systems requiring efficient and durable relay solutions.
Explore more Signal Relays from leading brands in the Electronics & Electricals category on EnvMart for tailored applications and enhanced circuit performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 5V DC.
This model has a maximum switching current of 2A.
The dimensions of this relay are approximately 12.5 mm in length, 10 mm in height, and 7.5 mm in width.
The relay features a single pole double throw (SPDT) contact configuration.
This relay operates effectively in temperatures ranging from -40°C to 70°C.
It utilizes a PCB mount type with a through-hole terminal configuration.
It supports switching voltages of up to 125V AC and 60V DC.
The contacts are made from gold-plated material, ensuring reliable electrical connections.
Yes, this relay complies with RoHS environmental standards.
The coil power consumption is 150 mW.
This relay is suitable for telecommunications, security equipment, and computer peripherals.
The country of origin for this relay is China.
