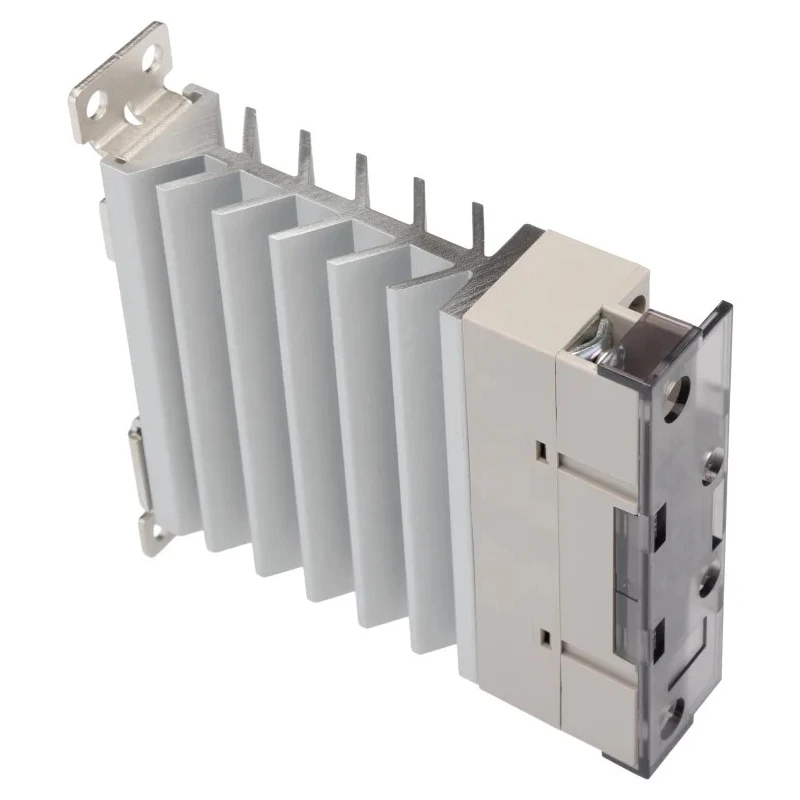

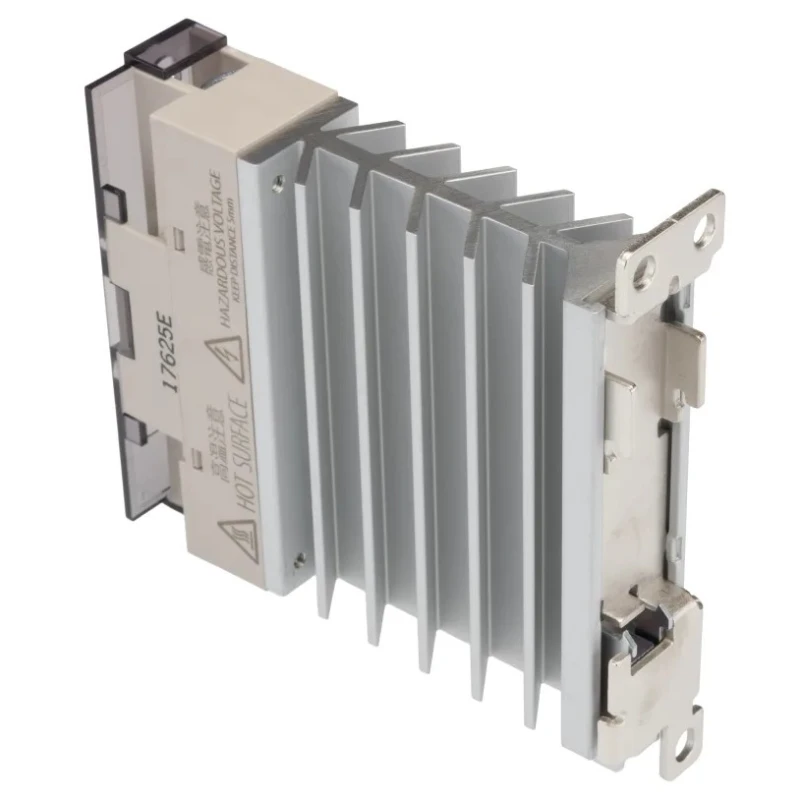

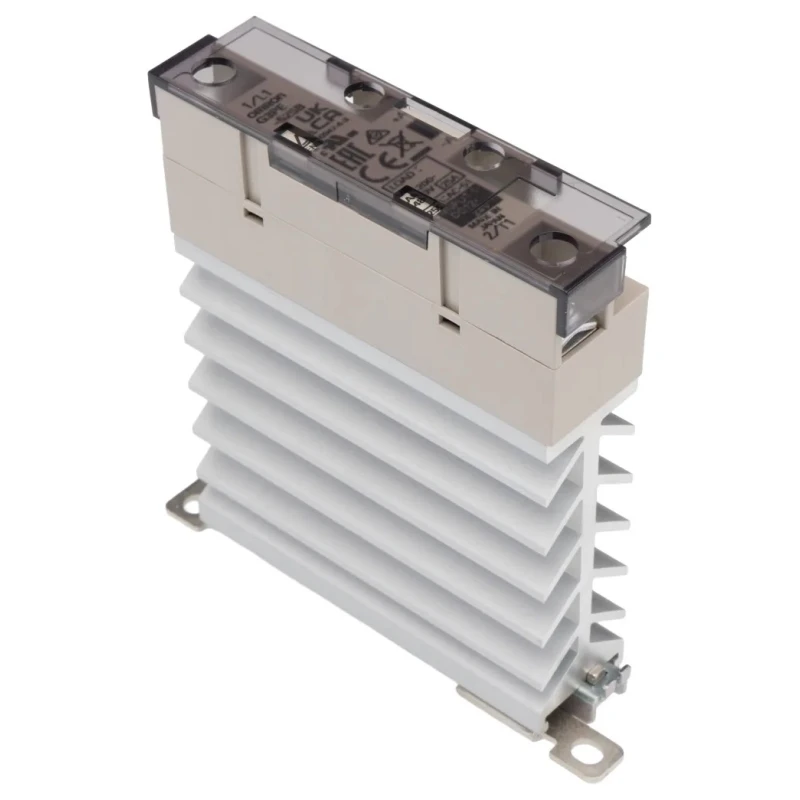

Omron Solid State Relay 25A Load 528V AC, DIN Rail Mount, 24V DC Control G3PE
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 100mm |
| Length | 22.5mm |
| Model | G3PE |
| Width | 80mm |
| Mount Type | DIN Rail |
| Output type | Phototriac |
| Series | G3PE |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 25A |
| Standards/Approvals | EN, RoHS, UL |
| Maximum Load Voltage | 528V ac |
| Minimum Load Voltage | 180V ac |
| Minimum Control Voltage | 12V dc |
| Maximum Control Voltage | 24V dc |
| Off State Leakage Current | 20mA |
Key Features
- High load capacity with 25A maximum current.
- Wide load voltage range from 180V to 528V AC.
- Control voltage range between 12V to 24V DC.
- SPST contact configuration for simple switching.
- Compact DIN rail mount design measuring 22.5x100x80mm.
- Zero cross switching function for safe operation.
- Operating temperature range from -30°C to +80°C.
- Off state leakage current of 20mA ensures efficiency.
Product Description
Omron G3PE-525B DC12-24 Solid State Relay is designed for reliable switching in industrial automation and control systems. It features a maximum load current of 25A and can handle AC load voltages up to 528V, making it ideal for various heavy-duty applications.
This relay supports a control voltage range of 12V to 24V DC, enabling easy integration with standard DC control systems. The SPST contact configuration provides single-pole switching suitable for many control circuit designs.
It is designed to mount on DIN rails with compact physical dimensions of 22.5mm width, 100mm height, and 80mm depth, optimizing space utilization in control panels.
Equipped with zero cross switching, the relay minimizes electrical noise and stress on the load during switching operations. It operates efficiently across a wide temperature range from -30°C to +80°C, suitable for harsh industrial environments.
With an off state leakage current of just 20mA and a phototriac output type, it delivers clean and efficient control outputs. The product complies with industry standards, including EN, RoHS, and UL certifications, ensuring safety and quality.
High load capacity with 25A maximum current. Wide load voltage range from 180V to 528V AC. Control voltage range between 12V to 24V DC. SPST contact configuration for simple switching. Compact DIN rail mount design measuring 22.5x100x80mm.
Zero cross switching function for safe operation. Operating temperature range from -30°C to +80°C. Off state leakage current of 20mA ensures efficiency. Phototriac output type for improved switching performance. Complies with EN, RoHS, UL standards.
This solid state relay is ideal for use in industrial automation, electric motor controls, HVAC systems, and machinery requiring efficient switching of high voltage loads. Its robust design and compliance with recognized standards make it reliable for demanding environments.
Explore more Solid State Relays and related automation products on EnvMart to find solutions tailored to your industrial control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 25A.
It supports a load voltage range from 180V to 528V AC.
The control voltage range for this relay is between 12V to 24V DC.
This relay features an SPST contact configuration for simple switching.
The relay has dimensions of 22.5mm in width, 100mm in height, and 80mm in depth.
It operates efficiently across a temperature range from -30°C to +80°C.
This model uses a phototriac output type for improved switching performance.
The zero cross switching function minimizes electrical noise and stress on the load during switching operations, enhancing efficiency.
The off state leakage current is 20mA, ensuring efficient operation.
It complies with EN, RoHS, and UL standards, ensuring safety and quality.
This relay is designed for DIN rail mounting, optimizing space in control panels.
It is suitable for industrial automation, electric motor controls, HVAC systems, and machinery requiring efficient switching of high voltage loads.
