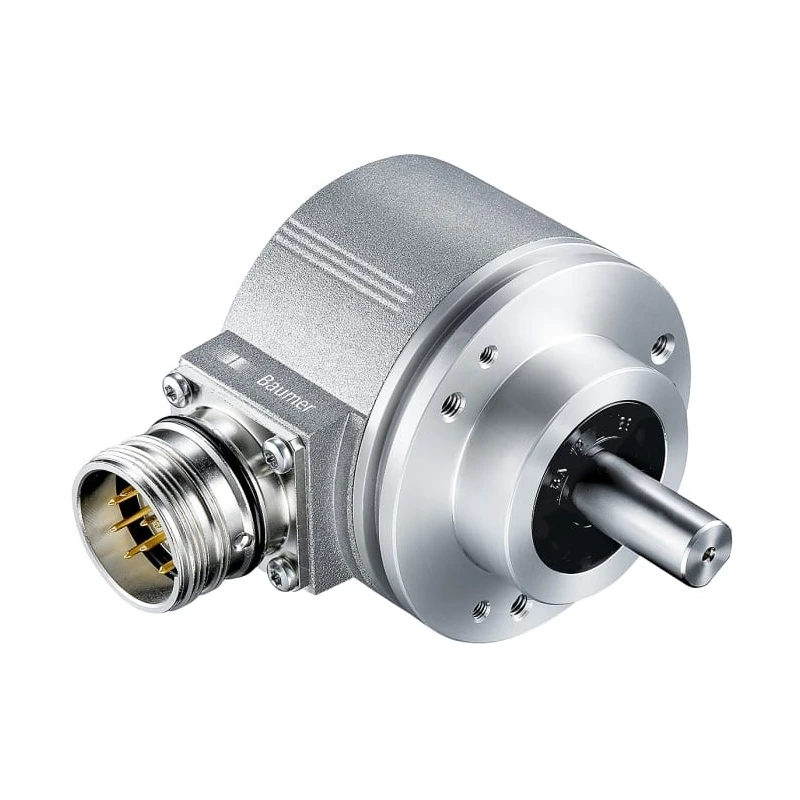

Baumer Optical Incremental Encoder EIL580-SC10.5FN.01024.A 30V 1024 ppr Push Pull HTL Signal Solid Shaft 10 mm

Baumer EIL580-SC10.5FN.01024.A Optical Incremental Encoder is a precision device engineered for motion control applications, operating at a maximum supply voltage of 30V and providing a high resolution of 1024 pulses per revolution. It features an optical encoder technology for accurate position feedback essential in industrial automation and robotics.

This encoder is equipped with a solid stainless steel 10 mm diameter shaft and housed in a robust die-cast aluminium body with an IP65 ingress protection rating, making it suitable for harsh and challenging industrial environments. The compact dimensions include an overall width of 58 mm, height of 63 mm, and depth of 48 mm, supporting integration into varied equipment layouts.

The output signal types include Push Pull and HTL, which are compatible with most modern control systems. Electrical connection is facilitated via an M23 flange connector, ensuring reliable and secure interfacing. Designed for demanding applications, it withstands temperatures from -40°C to 85°C and can handle a maximum rotational speed of 12000 rpm with a switching frequency up to 300 kHz.

Mounting is performed using a clamp system for stable and easy installation. The encoder complies with UL standards, enhancing safety and quality assurance for industrial use. Manufactured in Germany, this encoder guarantees premium build quality and long operational life.

This product is ideal for industrial automation, manufacturing equipment, robotics, and motion control sensor applications, delivering precise position and speed feedback necessary for efficient process control systems.

The set contains a single Baumer EIL580-SC10.5FN.01024.A Optical Incremental Encoder unit. Optical encoder technology ensures high accuracy and reliability. Provides 1024 pulses per revolution for fine resolution. Solid 10 mm stainless steel shaft for robust mechanical connection.

Push Pull and HTL output signals compatible with various control systems. Die-cast aluminium housing offers durable protection and IP65 rating. Clamp mounting provides secure and stable installation. Operates in temperatures ranging from -40°C to 85°C for versatile environments.

Supports maximum rotational speed of 12,000 rpm and switching frequency up to 300 kHz. M23 flange connector enables easy and secure electrical interfacing. Designed and manufactured in Germany ensuring top quality and compliance.
