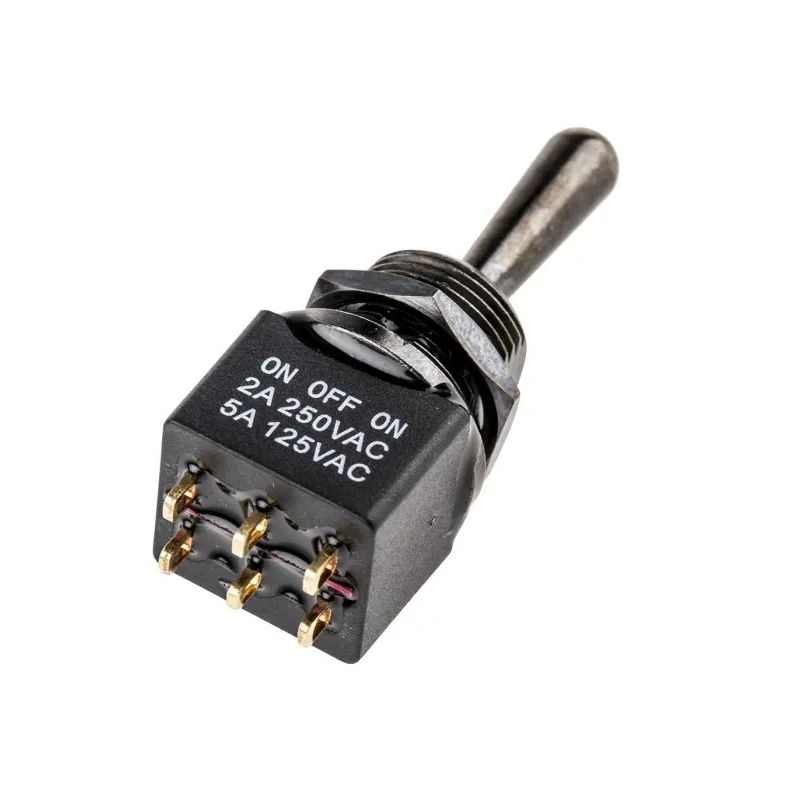

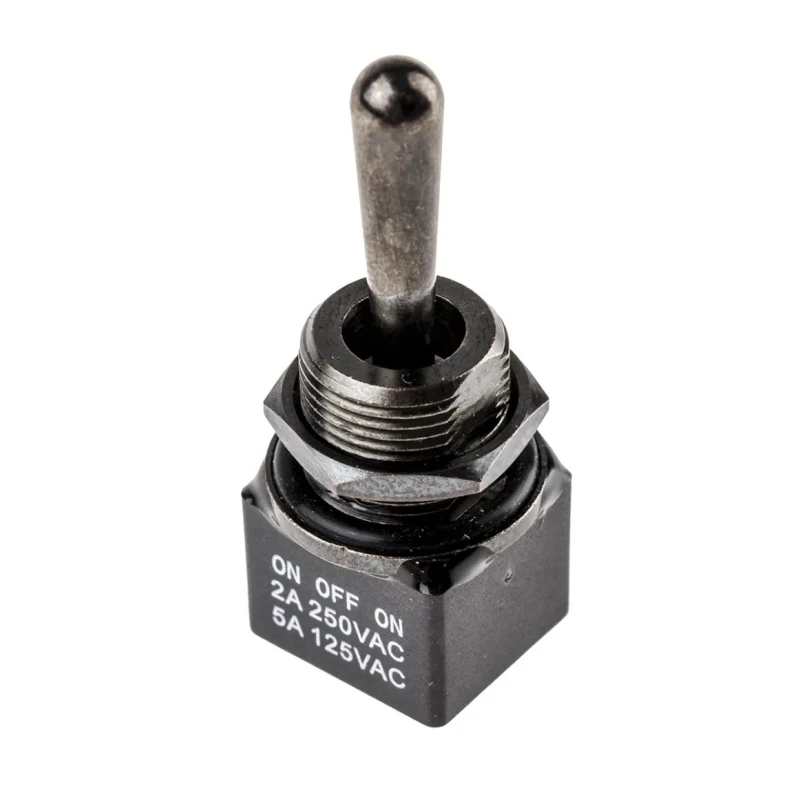

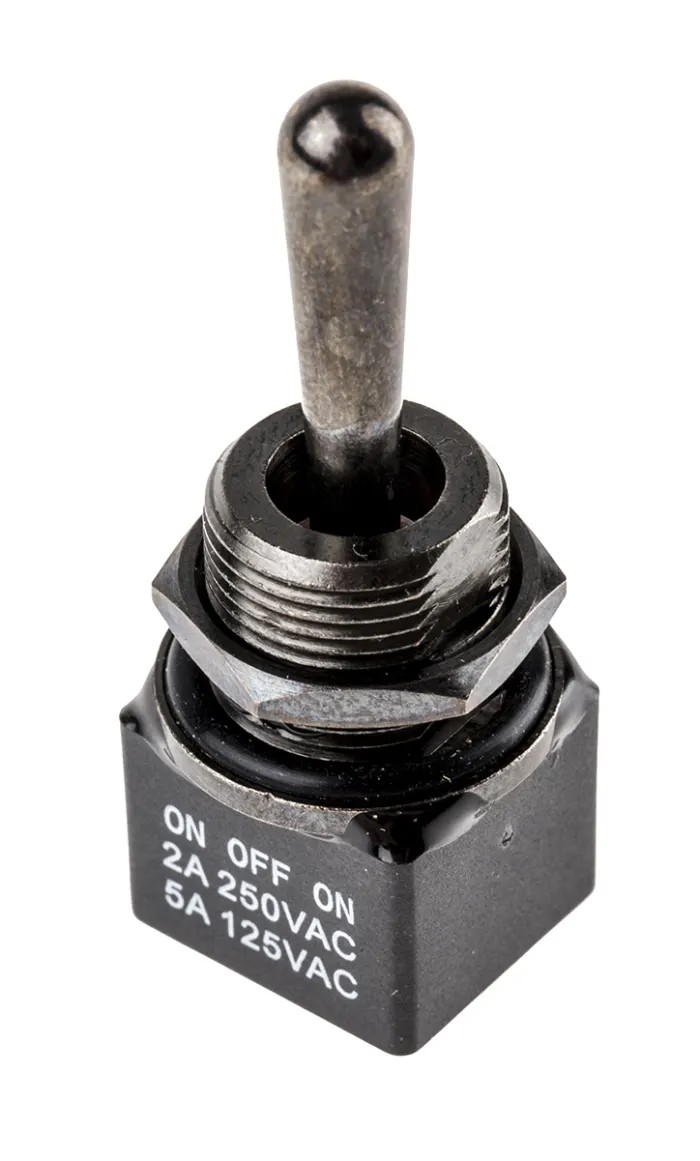

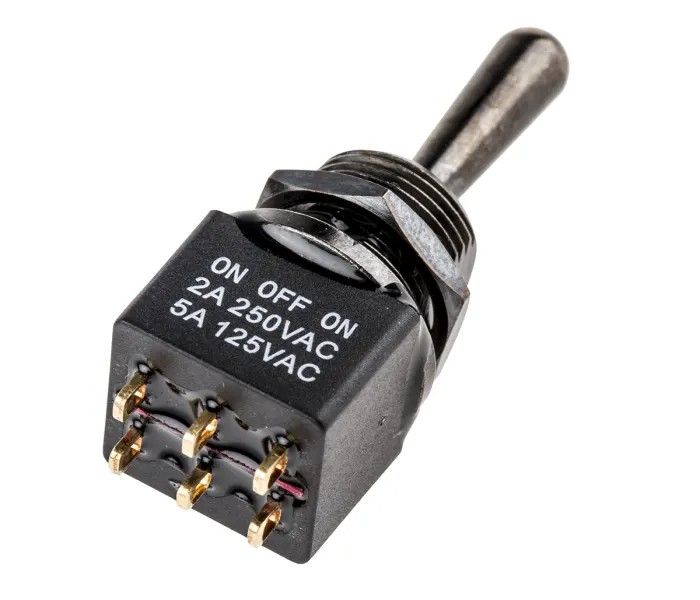

RS PRO Toggle Switch PCB Mount On-Off-On DPDT 28 V dc 250 V ac Brass Actuator 820-0517
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Height | 40.2mm |
| Length | 16mm |
| Model | 820-0517 |
| IP Rating | IP67 |
| Width | 14.48mm |
| Mount Type | PCB |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | DPDT |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Standards/Approvals | MIL-STD-202F |
| Switch Operation | On-Off-On |
| Actuator Length | 18mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 50000Cycles |
| Contact AC Voltage | 250V ac |
| Actuator Material | Brass |
Key Features
- The switch supports dual pole double throw (DPDT) configuration for versatile circuit control.
- It operates at 28 V dc and 250 V ac contact voltages with a current rating of 5 A.
- Featuring an IP67 rating, it ensures protection against dust and water ingress.
- Brass actuator material and compact dimensions enhance durability and ease of installation.
- Designed for PCB mount with solder terminals for secure electrical connections.
- Operates reliably in temperatures from -30°C to 85°C.
- Measured dimensions are 40.2mm height, 16mm length, and 14.48mm width.
- High mechanical life of 50,000 cycles ensures long-term operation.
Product Description
RS PRO 820-0517 is a high-quality Toggle Switch designed for PCB mounting applications, featuring On-Off-On switch operation with DPDT (Double Pole Double Throw) contact configuration. Rated for contact voltages of 28 V dc and 250 V ac and currents up to 5 A, it meets demanding electrical and mechanical standards.
This toggle switch has a robust brass actuator measuring 18mm in length, providing reliable tactile feedback. The full sealing with IP67 protection ensures resistance against dust ingress and water immersion, making it suitable for harsh industrial and commercial environments.
The switch maintains operational integrity in a wide temperature range from -30°C to 85°C and complies with MIL-STD-202F standards for durability and reliability. Its compact dimensions (40.2mm height, 16mm length, 14.48mm width) allow easy integration into various PCB layouts.
With a mechanical life expectancy of 50,000 cycles, this switch offers prolonged operational lifespan, ideal for automation, control panels, instrumentation, and electrical manufacturing applications.
The switch supports dual pole double throw (DPDT) configuration for versatile circuit control. It operates at 28 V dc and 250 V ac contact voltages with a current rating of 5 A. Featuring an IP67 rating, it ensures protection against dust and water ingress.
Brass actuator material and compact dimensions enhance durability and ease of installation. Designed for PCB mount with solder terminals for secure electrical connections. Operates reliably in temperatures from -30°C to 85°C.
Measured dimensions are 40.2mm height, 16mm length, and 14.48mm width. High mechanical life of 50,000 cycles ensures long-term operation.
This RS PRO Toggle Switch is suitable for demanding industrial, automation, laboratory, HVAC, and electronics manufacturing sectors requiring durable, precision electrical switches. Browse the Electronics & Electricals category for more high-quality switches and components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a dual pole double throw (DPDT) contact configuration, allowing for versatile circuit control.
It operates at contact voltages of 28 V DC and 250 V AC, with a current rating of 5 A.
The switch has an IP67 rating, providing protection against dust ingress and water immersion.
The measured dimensions are 40.2 mm in height, 16 mm in length, and 14.48 mm in width.
It operates reliably in temperatures ranging from -30°C to 85°C.
This toggle switch has a mechanical life expectancy of 50,000 cycles, ensuring prolonged operational lifespan.
It is designed with solder terminals for secure electrical connections.
The actuator is made from brass, providing durability and reliable tactile feedback.
Yes, it is specifically designed for PCB mounting applications.
It complies with MIL-STD-202F standards for durability and reliability.
It is suitable for industrial, automation, laboratory, HVAC, and electronics manufacturing sectors.
The actuator length is 18 mm, contributing to its compact design and ease of use.
