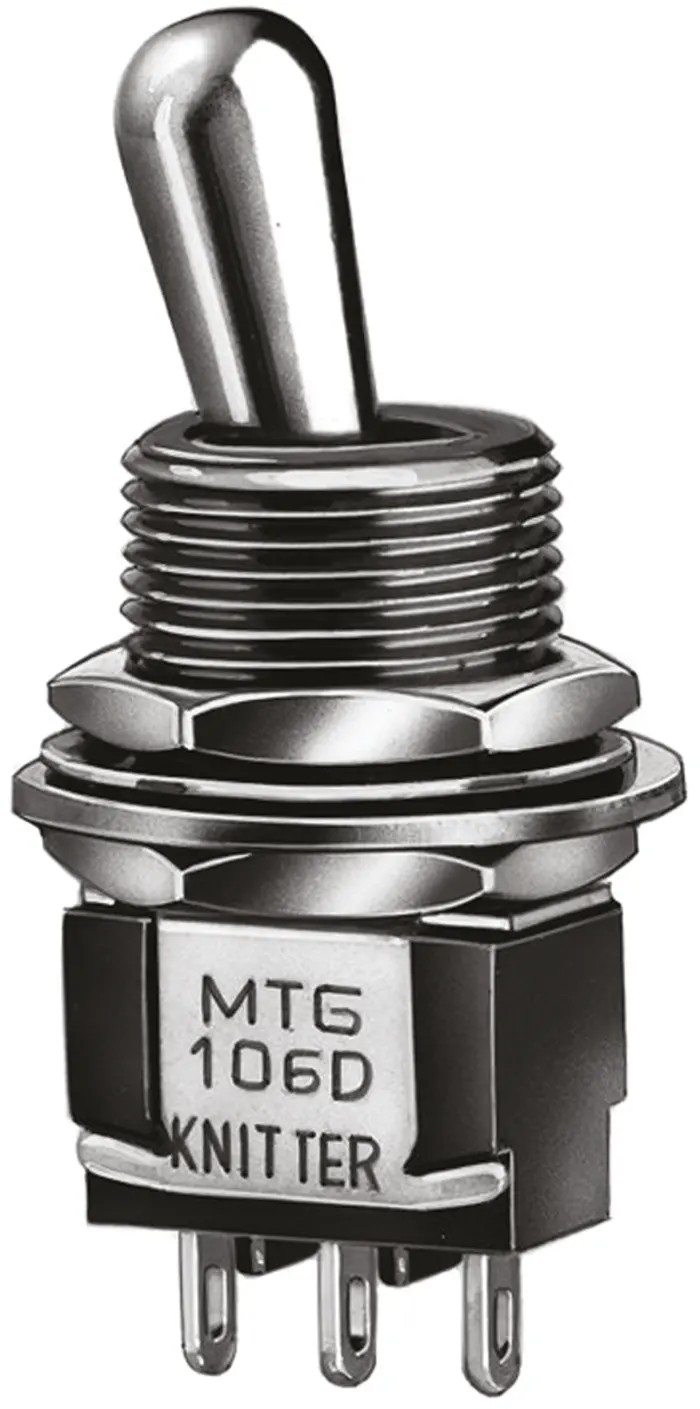

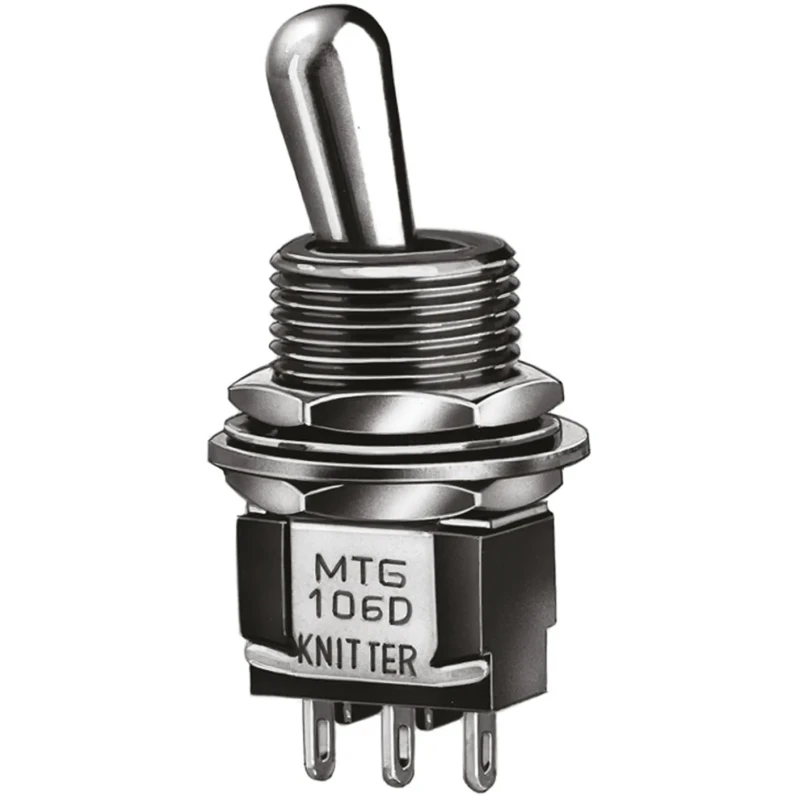

KNITTER-SWITCH Toggle Switch Panel Mount On-Off-On SPDT Solder Terminal 250 V ac MTG 106 E
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Height | 36.4mm |
| Length | 13mm |
| Model | MTG 106 E |
| Width | 8mm |
| Mount Type | Panel |
| Series | MTG |
| Maximum Operating Temperature | 140°C |
| Contact Configuration | SPDT |
| Switch Configuration | 3PDT, DPDT, SPDT, 4PDT |
| Minimum Operating Temperature | -45°C |
| Panel Cutout Size | 12.5 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 11.5mm |
| Switch Contact Current | 4A |
| Mechanical Life | 200000Operations |
| Contact AC Voltage | 250V ac |
| Actuator Material | Chrome Plated Brass |
Key Features
- This toggle switch supports a 4A switching current for reliable electrical switching.
- Constructed with a chrome plated brass actuator offering durability and robust operation.
- The panel cutout size is 12.5 mm ensuring precise fit and easy installation.
- It operates reliably within a temperature range of -45°C to 140°C, suitable for varied environments.
- Mechanical life rated at 200,000 operations guarantees extended service life.
- The compact size of 36.4mm height, 13mm length, and 8mm width suits space-constrained applications.
- Compliance with RoHS ensures environmentally safe manufacturing standards.
- Easy to mount with a 15/32-32 threaded bushing and locking plate (M12 x 0.75) for secure panel fitting.
Product Description
The KNITTER-SWITCH MTG 106 E is a premium toggle switch designed for panel mounting applications in electrical and automation systems. Featuring a Single Pole Double Throw (SPDT) contact configuration with On-Off-On switch operation, this toggle switch is well-suited for precise control tasks requiring reliable switching of 250 V AC circuits.
Its chrome plated brass actuator provides a robust and corrosion-resistant interface, while the Diallyl Phthalate case rated at UL 94 V-0 ensures flame retardant properties. The panel cutout dimension of 12.5 mm and actuator length of 11.5 mm allow for compact and ergonomic installation in control panels and instrumentation.
Operating efficiently between temperatures of -45°C and 140°C, the switch maintains mechanical integrity over a wide environmental range. With a switching current rating of 4A and a mechanical life expectancy of approximately 200,000 actuations, it guarantees dependable performance in industrial, laboratory, HVAC, manufacturing, and commercial automation contexts.
The MTG series from KNITTER-SWITCH offers both biased and non-biased options, silver contacts for enhanced electrical conductivity, and a threaded bushing with locking plate to firmly secure the switch in place. This model is compliant with RoHS directives, ensuring safe and environmentally responsible usage.
This miniature toggle switch accommodates precise panel mounting with secure solder terminals. Its compact dimensions and high mechanical life make it ideal for industrial and automation control panels. Designed for convenient installation with a 15/32-32 threaded bushing and chrome plated brass actuator.
Supports up to 4A switching current at 250 V AC for reliable circuit operation. Wide operating temperature range from -45°C to 140°C for versatile application environments. Constructed with UL 94 V-0 rated Diallyl Phthalate case ensuring flame retardance.
Explore the full range of KNITTER-SWITCH Toggle Switches and similar products for advanced electrical control solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch supports a switching current rating of 4A at 250 V AC, ensuring reliable circuit operation.
The required panel cutout size for this model is 12.5 mm, allowing for precise fit during installation.
This toggle switch has a mechanical life rating of approximately 200,000 operations, providing extended service life.
The dimensions of this model are 36.4 mm in height, 13 mm in length, and 8 mm in width, making it compact for various applications.
It operates efficiently within a temperature range of -45°C to 140°C, suitable for diverse environmental conditions.
This model features solder terminals for secure electrical connections during installation.
The actuator is made of chrome plated brass, providing a robust and corrosion-resistant interface.
Yes, it is compliant with RoHS directives, ensuring environmentally safe manufacturing standards.
The switch features a Single Pole Double Throw (SPDT) contact configuration for versatile operation.
It is designed for panel mounting with a 15/32-32 threaded bushing and a locking plate for secure fitting.
This model is part of the MTG series from KNITTER-SWITCH, which offers various configurations.
The actuator length of this toggle switch is 11.5 mm, facilitating ergonomic installation.
