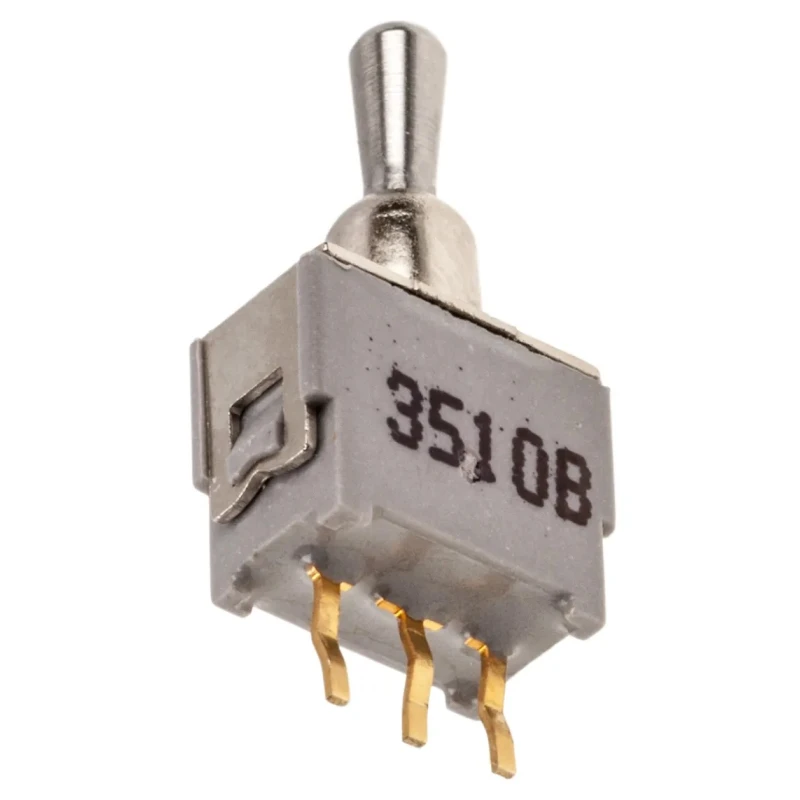

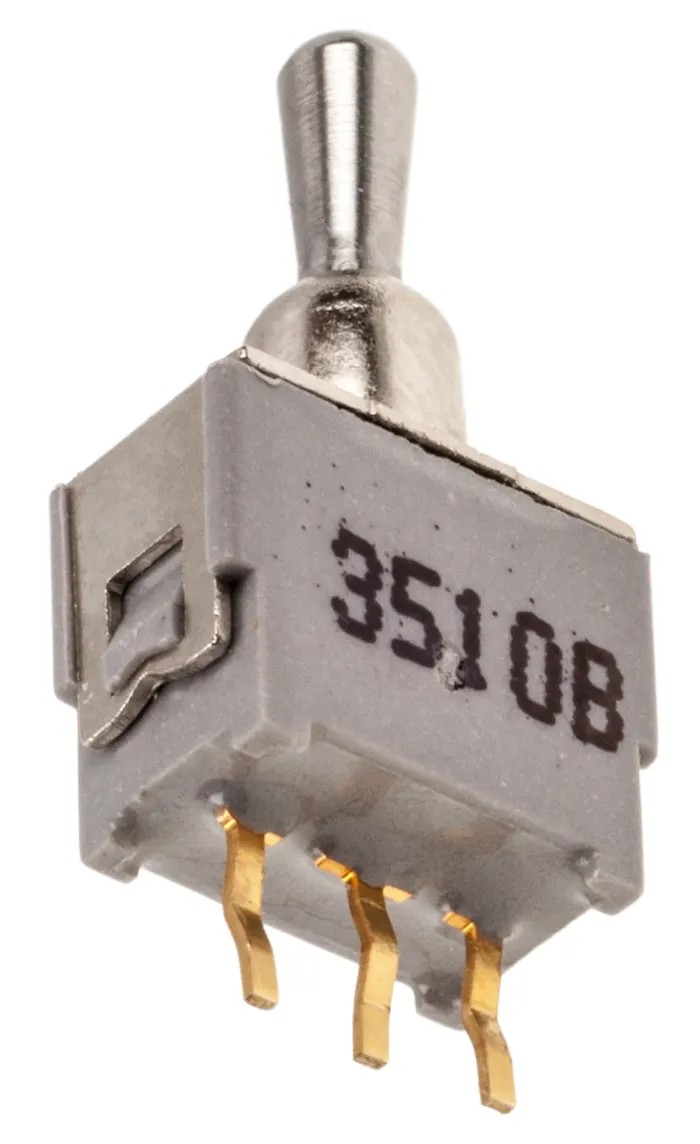

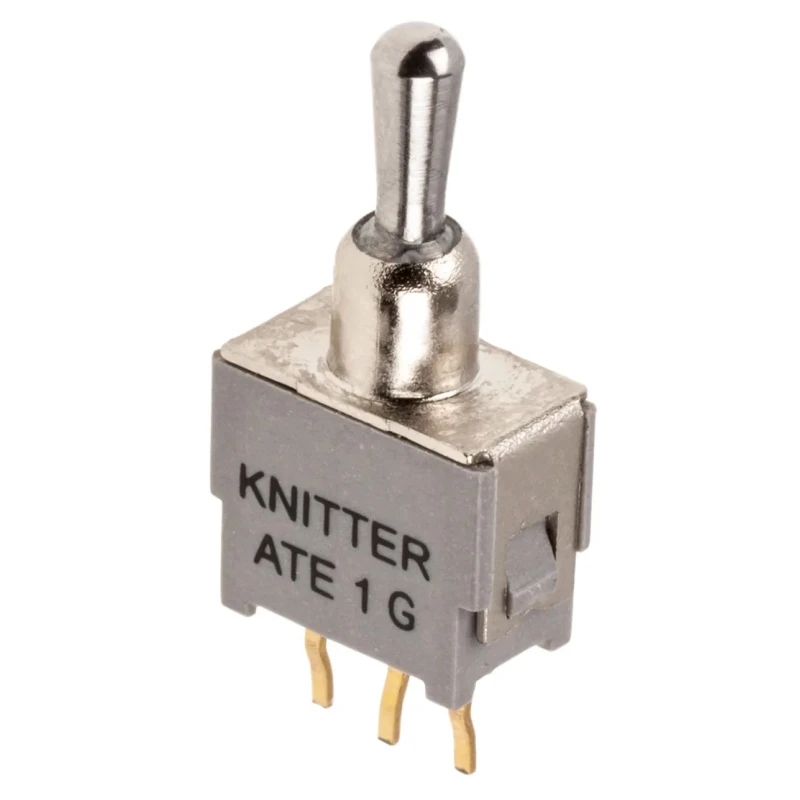

KNITTER-SWITCH Toggle Switch, PCB Mount, On-Off-On, SPDT, Through Hole Terminal, 48 V dc, 48 V ac ATE 1 G
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Height | 18mm |
| Length | 9mm |
| Model | ATE 1 G |
| Width | 9mm |
| Mount Type | PCB |
| Series | ATE |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPDT |
| Switch Configuration | DPDT, SPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 6mm |
| Contact DC Voltage | 48V dc |
| Switch Contact Current | 50mA |
| Mechanical Life | 60000Operations |
| Contact AC Voltage | 48V ac |
| Actuator Material | Nickel Plated Brass |
Key Features
- Supports a switch contact current up to 50 mA for low power applications.
- Actuator length of 6 mm and made from nickel-plated brass for durability.
- Operates reliably between minimum -20°C and maximum 80°C ambient temperatures.
- Mechanical life expectancy of 60,000 operations ensures long-term use.
- Complies with RoHS standards for environmental safety.
- Suitable for PCB mounting with through hole terminal type ensuring secure soldering.
- Contact configuration includes SPDT and DPDT options in the series.
Product Description
KNITTER-SWITCH ATE 1 G Toggle Switch is a highly reliable PCB mount switch supporting On-Off-On operation and SPDT contact configuration designed for industrial and electronic applications with a voltage rating of 48 V dc and 48 V ac.
This toggle switch series features a nickel-plated brass actuator providing durability and corrosion resistance. It has compact physical dimensions of 9 mm length, 9 mm width, and 18 mm height making it ideal for use in constrained PCB layouts.
The switch supports up to 50 mA contact current, suitable for low current switching in automation, control panels, instrumentation, and other electronic equipment. It operates efficiently within a temperature range of -20°C to 80°C, assuring performance stability in various environmental conditions.
The mechanical life of the toggle switch is rated for 60,000 operations, delivering extended operational longevity for industrial use. It complies with RoHS standards to meet environmental and safety regulations.
The product is manufactured in China with strict quality controls. The series includes both SPDT and DPDT configurations. Supports switch contact current up to 50 mA. Nickel-plated brass actuator for enhanced durability.
Compact form factor with precise dimensions for PCB integration. Wide operating temperature range from -20°C to 80°C. Robust mechanical life of 60,000 full switch cycles. RoHS compliant ensuring environmental safety standards.
Through hole terminal type for secure PCB mounting. Suitable for electronic, industrial automation, and control applications. Explore our extensive catalog of Toggle Switches and electrical components on EnvMart to suit all your industrial and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a Single Pole Double Throw (SPDT) contact configuration, with options for Double Pole Double Throw (DPDT) as well.
It operates efficiently within a maximum temperature of 80°C.
The mechanical life expectancy is rated for 60,000 operations, ensuring extended use.
The actuator is made from nickel-plated brass, providing durability and corrosion resistance.
The switch has compact dimensions of 9 mm in length, 9 mm in width, and 18 mm in height.
It supports a switch contact current of up to 50 mA, suitable for low power applications.
This model is designed for PCB mounting with a through hole terminal type, ensuring secure soldering.
The minimum operating temperature is -20°C, allowing for use in various environmental conditions.
Yes, it complies with RoHS standards for environmental safety.
It has a voltage rating of 48 V for both DC and AC applications.
This model is suitable for use in electronic, industrial automation, and control applications.
The switch operates in an On-Off-On configuration, suitable for various control needs.
