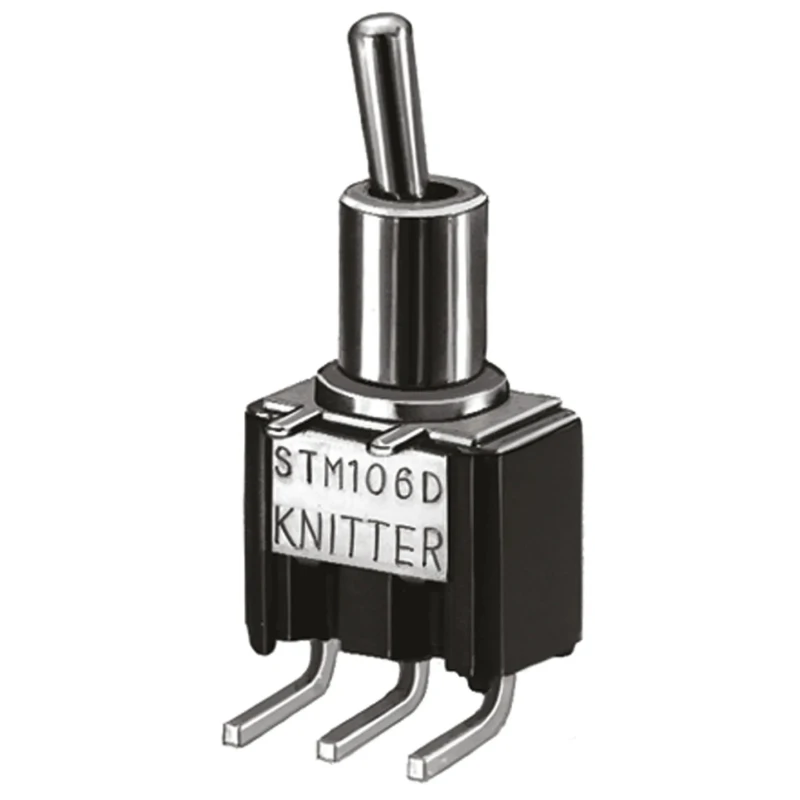

KNITTER-SWITCH Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 250 V ac STM 106 D-RA
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | KNITTER-SWITCH |
| Height | 17mm |
| Length | 13mm |
| Model | STM 106 D-RA |
| Width | 10.7mm |
| Mount Type | PCB |
| Series | STM |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPDT |
| Switch Configuration | SPDT, DPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 6.8mm |
| Switch Contact Current | 4A |
| Mechanical Life | 100000Operations |
| Contact AC Voltage | 250V ac |
Key Features
- This toggle switch features a single-pole double-throw (SPDT) contact configuration for versatile circuit control.
- The switch operates at a contact current rating of 4A, ensuring durability under moderate electrical loads.
- Designed for PCB mounting with through-hole terminal type for secure and stable connections.
- Mechanical life expectancy of 100,000 operations guarantees long-term usage reliability.
- Wide operating temperature range from -20°C to 80°C makes it suitable for various environmental conditions.
- The silver contacts ensure optimal conductivity and minimal wear during switching cycles.
- Compact dimensions of length 13mm, width 10.7mm, and height 17mm provide space-saving installation on printed circuit boards.
- Chrome plated brass actuator with Diallyl Phthalate (UL 94 V-0) case offers robustness and safety.
Product Description
KNITTER-SWITCH STM 106 D-RA is a high-quality toggle switch designed for PCB mounting applications requiring On-On SPDT switch operation. Rated for 250 V ac and 4A contact current, this miniature toggle switch is ideal for use in industrial automation, electrical circuits, and electronic devices where reliable switching performance is crucial.
This model features silver contacts that provide excellent electrical conductivity and durability. The actuator is chrome plated brass, paired with a Diallyl Phthalate case classified UL 94 V-0, ensuring safety and mechanical strength. The switch supports a mechanical life of 100,000 operations, delivering long-lasting service.
With operation temperature limits from -20°C to 80°C, the STM 106 D-RA toggle switch suits various environmental conditions. Its compact form factor with dimensions 13mm length, 10.7mm width, and 17mm height facilitates easy integration on PCB assemblies with through-hole terminal connections for firm mounting.
The product complies with RoHS standards, ensuring no hazardous substances are used in its manufacturing. Originating from Japan, this switch embodies stringent quality and performance standards, making it highly suitable for electronics manufacturing, industrial automation systems, and electrical instrumentation.
This toggle switch provides stable On-On SPDT switching functionality. 4A contact current rating ensures reliable electrical performance. Designed for secure PCB mounting with through-hole terminals. Compact size optimizes board space usage.
Durable mechanical life of 100,000 operations supports extended use. Operates safely across -20°C to 80°C temperature range. Silver contacts and chrome plated brass actuator maximize conductivity and durability. Meets RoHS environmental standards.
Manufactured in Japan for guaranteed quality.
Ideal for electronics and electrical engineering applications, this KNITTER-SWITCH Toggle Switch combines performance, durability, and compliance, ensuring dependable operation in diverse industrial, laboratory, automation, and commercial settings.
Explore more in the Electronics & Electricals category to find compatible and complementary switches and components to complete your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single-pole double-throw (SPDT) contact configuration, allowing for versatile circuit control.
The maximum operating temperature for this toggle switch is 80°C, making it suitable for a variety of environmental conditions.
It has a contact current rating of 4A, ensuring reliable electrical performance under moderate loads.
The dimensions of this unit are 13mm in length, 10.7mm in width, and 17mm in height, allowing for compact installation on printed circuit boards.
This toggle switch is designed for PCB mounting with a through-hole terminal type for secure connections.
The mechanical life expectancy of the STM 106 D-RA is 100,000 operations, providing long-term usage reliability.
The actuator is made of chrome plated brass, while the case is composed of Diallyl Phthalate (UL 94 V-0), ensuring robustness and safety.
Yes, it complies with RoHS standards, ensuring that no hazardous substances are used in its manufacturing.
The minimum operating temperature for the STM 106 D-RA is -20°C, allowing it to function in various environmental conditions.
This toggle switch is ideal for use in industrial automation, electrical circuits, and electronic devices where reliable switching performance is crucial.
This model utilizes a through-hole terminal connection for stable and secure mounting on printed circuit boards.
The contact AC voltage rating for this toggle switch is 250V ac, suitable for various electrical applications.
