Silicon Labs Microcontroller C8051F384-GQ 8 bit 8051 Core 48 MHz 64kB FLASH 48-Pin TQFP

Silicon Labs presents the C8051F384-GQ microcontroller, featuring an 8 bit 8051-compatible core running at a maximum clock frequency of 48 MHz. This microcontroller integrates 64kB of FLASH program memory with a program memory type of FLASH, suitable for embedded system designs requiring efficient code storage and execution.

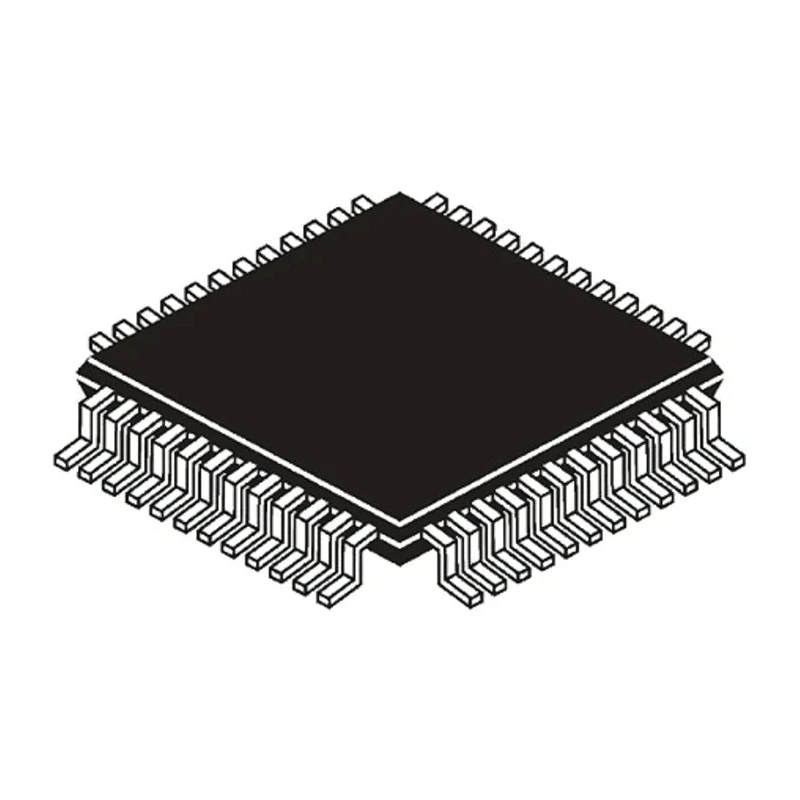

The device is housed in a 48-pin Thin Quad Flat Package (TQFP) ideal for surface mount assembly, measuring 7 mm by 7 mm with a compact height of 1.05 mm. It supports a wide supply voltage range from 1.8 V minimum to 5.5 V maximum, with a power dissipation limit of 800 mW facilitating efficient power management in industrial applications.

This microcontroller boasts 4.35 kB of RAM alongside 40 programmable input/output pins, making it versatile for a variety of interfacing requirements. It is equipped with 21 channels of 10-bit Analog-to-Digital Converters (ADCs), 2 analogue comparators, and a 5-bit Digital-to-Analog Converter (DAC), enabling analog signal processing in automotive, industrial control, and instrumentation sectors.

Additional features include 6 timers and compliance with the Automotive AEC-Q100 standard and RoHS environmental requirements, ensuring durability and regulatory adherence. The operating temperature range extends from -40°C to 85°C, suitable for harsh environmental conditions. The instruction set architecture is MCU 8051 based, widely supported and recognized for embedded development.

This microcontroller is designed for applications in embedded systems requiring reliable performance under automotive, industrial, and general-purpose uses. Its surface-mount package simplifies PCB assembly, and the range of analog and digital peripherals supports sophisticated control and signal processing tasks.

This MCU includes 4.35kB RAM for versatile data handling. It supports a maximum supply voltage of 5.5V with a minimum of 1.8V. Features 40 programmable I/O pins and 6 timers for complex timing operations. Contains 21 10-bit ADC channels and 2 analog comparators for sensor interfacing.

The core dissipates up to 800mW power and operates within a temperature range of -40°C to 85°C. Includes 1 DAC with 5-bit resolution for analog output applications. Designed with RoHS compliance and automotive AEC-Q100 standard for reliability.

Package dimensions are compact, measuring 7mm in length and width with a height of 1.05mm.
