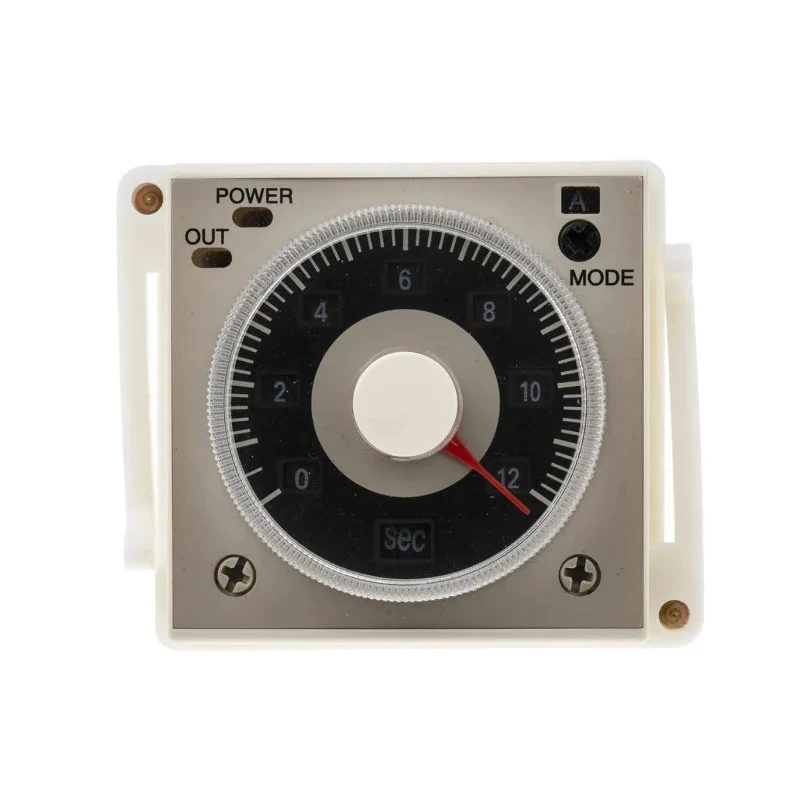

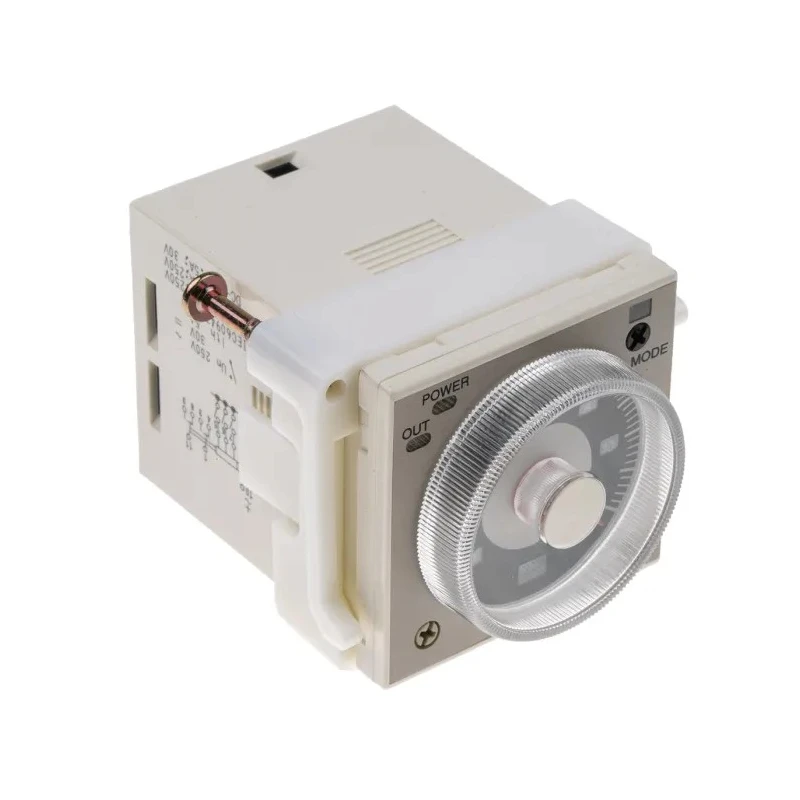

RS PRO Panel Timer Relay 2-Contact 100 to 125 V dc 24 V ac 48 V ac 0.1 s to 300 h Multifunction DPDT 179-2916

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Panel Timer Relay 2-Contact 100 to 125 V dc 24 V ac 48 V ac 0.1 s to 300 h Multifunction DPDT 179-2916

Name: RS PRO Panel Timer Relay 2-Contact 100 to 125 V dc 24 V ac 48 V ac 0.1 s to 300 h Multifunction DPDT 179-2916
Brand: RS PRO
SKU: 246674
Price: 115.22 USD
Availability: InStock



Category Timer Relay Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Height	48mm
Function	90° Offset, Offset Double Ring End
Length	52.3mm
Model	179-2916
Mode	Multifunction
Width	48mm
Mount Type	Panel
Series	RS PRO
Maximum Operating Temperature	55°C
Contact Configuration	DPDT
Minimum Operating Temperature	-10°C
Time Range	0.1 s to 300 h
Terminal type	11-Pin
Standards/Approvals	RoHS
Number of Contacts	2
Number of Timer Functions	Multifunction
Switching Voltage	250V ac
Contact Current	5A
Supply DC Voltage	100 to 125 V dc
Timing Adjustment	Dial
Supply AC Voltage	24, 48V ac

Key Features

Operates within a supply voltage range of 100 to 125 V dc and 24 V to 48 V ac.
Timing adjustable from 0.1 seconds up to 300 hours using a dial control.
Features double-pole double-throw (DPDT) contact configuration with a contact rating of 5A at 250 V ac.

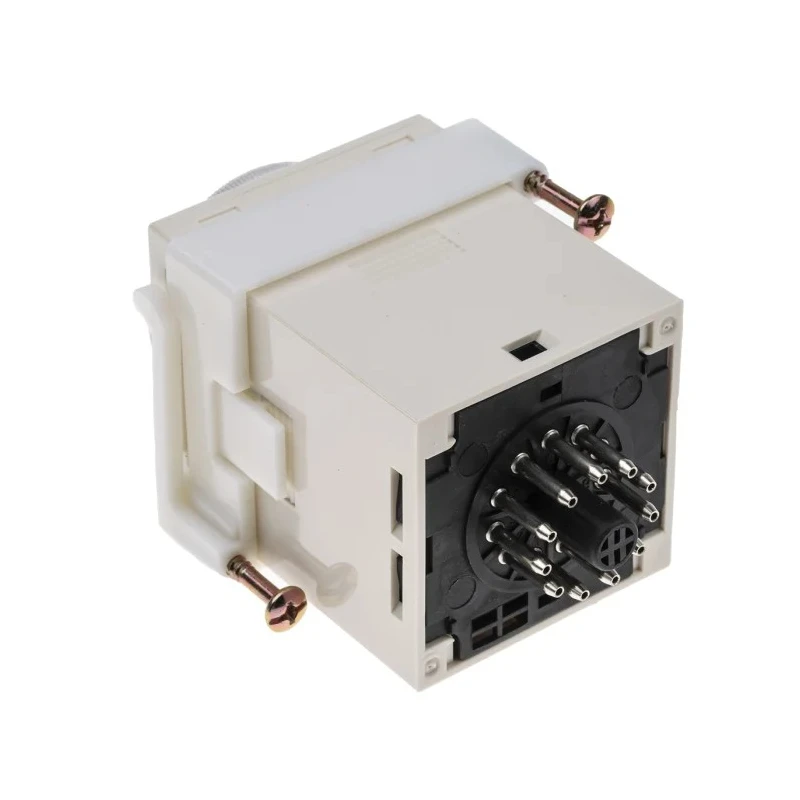

Designed for panel mounting with an 11-pin terminal type for plug-in installation.
Functions include 90° offset and offset double ring end for multifunctional timer applications.
Compact dimensions of 52.3 mm length, 48 mm width, and 48 mm height for efficient panel use.
Suitable for operating temperatures from -10°C to 55°C for reliable performance in diverse environments.
Conforms to RoHS standards and is manufactured under RS PRO series quality assurance.

Product Description

RS PRO 179-2916 Panel Timer Relay is a multifunctional timing relay designed for precise control in industrial automation and electrical engineering applications. It supports a broad supply voltage range including 100 to 125 V dc and AC voltages of 24 V and 48 V, making it adaptable to different power systems.

This relay offers a wide timing range from 0.1 seconds to 300 hours, adjusted via an analogue dial, allowing for flexible timing in various processes. The double-pole double-throw (DPDT) contact configuration with a 5A contact current at 250 V ac ensures dependable switching capabilities.

Engineered for panel mounting, the 11-pin plug-in terminal design facilitates easy installation and maintenance. With dimensions of 52.3 mm length, 48 mm width, and 48 mm height, it is optimized for compact panel setups while providing robust functionality.

It operates reliably in ambient temperatures from -10°C to 55°C, suitable for industrial and manufacturing environments. The device complies with RoHS standards, reflecting adherence to environmental and safety regulations.

Typical applications include automation control systems, timing control in HVAC, machinery operation sequencing, and other industrial timing requirements. The multifunctional modes such as 90° offset and offset double ring end provide versatile options for diverse timing control tasks.

Operates within a supply voltage range of 100 to 125 V dc and 24 V to 48 V ac. Wide timing range from 0.1 seconds to 300 hours adjustable by dial. DPDT contact configuration rated at 5A, 250 V ac contact current. 11-pin plug-in terminal type for easy panel mounting and replacement.

Compact size measuring 52.3 mm × 48 mm × 48 mm for space-efficient installation. Operating temperature range from -10°C to 55°C ensures durability in harsh environments. RoHS compliant manufactured product ensuring environmental safety.

This RS PRO panel Timer Relay is part of the RS PRO series, manufactured in China and designed to meet industrial standards with precise timing and multifunction capabilities. Its reliability and versatility make it suitable for use in electrical panels, control cabinets, and automation systems within industrial, manufacturing, and commercial sectors. Discover more relays and timer solutions in the Electronics & Electricals category at EnvMart.
