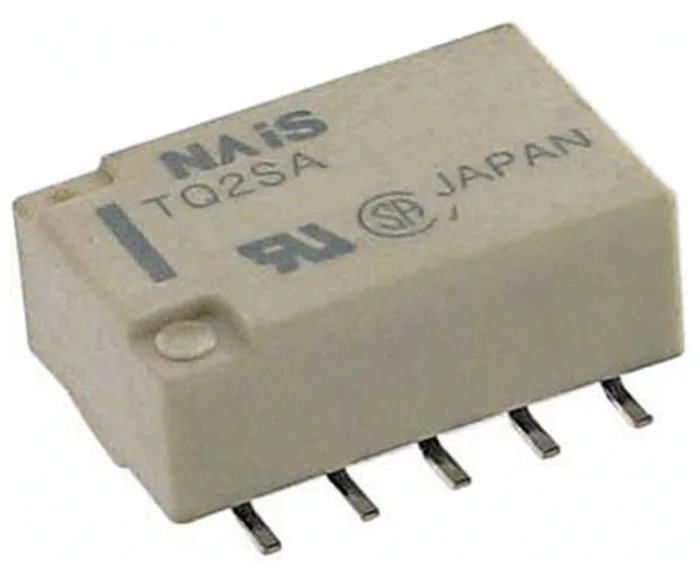

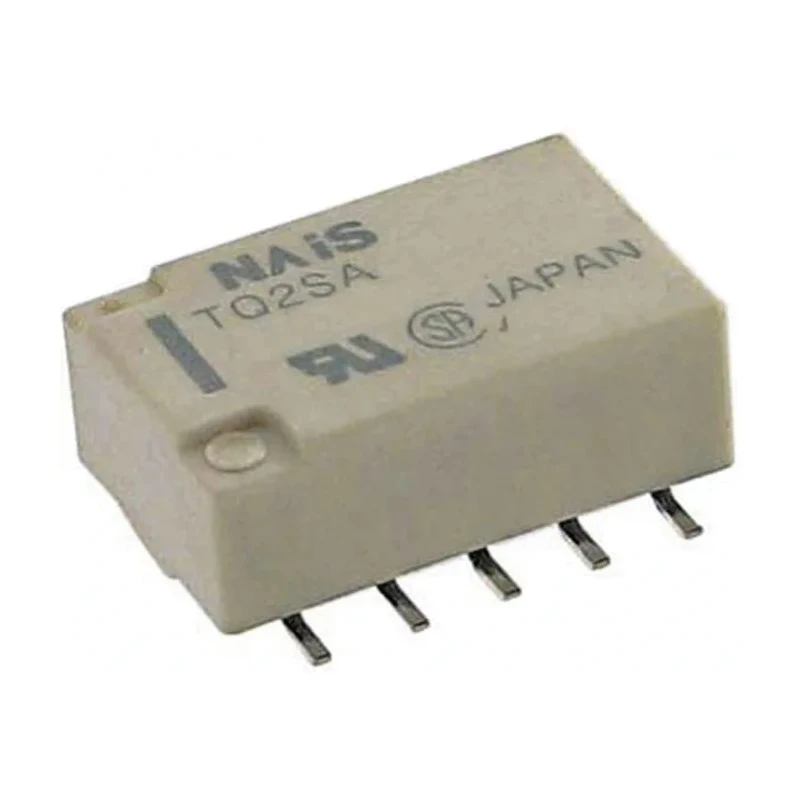

Panasonic Surface High Frequency Power Relay 5V DC Coil 28.1mA Switching Current DPDT TQ2SA-5V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 5.6mm |
| Length | 14mm |
| Model | TQ2SA-5V |
| Width | 7mm |
| Mount Type | Surface |
| Contact Material | Silver Alloy |
| Series | TQ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 28.1mA |
| Terminal type | Solder |
| Contact Resistance | 75mΩ |
| Standards/Approvals | VDE, CSA, RoHS, UL |
| Coil Resistance | 178Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| Switching Power | 60W |
Key Features
- Compact surface mount relay with low 6mm profile for space saving.
- Suitable for high frequency applications and communication equipment.
- Silver alloy contacts ensure reliability and low contact resistance of 75mΩ.
- Operates within -40°C to 85°C temperature range for durability.
- Switching power rating of 60W and switching voltages up to 250V AC and 30V DC.
- Low coil power consumption at 140mW and coil resistance of 178Ω.
- Equipped with solder terminals for surface mounting ease.
- Complies with VDE, CSA, RoHS, and UL standards for safety and quality.
Product Description
Panasonic TQ2SA-5V surface high frequency power relay features a 5V DC coil with a 28.1mA switching current and double-pole double-throw (DPDT) contact configuration. This relay offers a compact size with a low profile height of just 5.6mm, enabling efficient use in dense electronic assemblies.
The relay is designed for high frequency operation and optimized for surface mount devices (SMD) with solder-type terminals enabling automated PCB assembly. Its silver alloy contacts deliver a low contact resistance of 75mΩ, ensuring excellent electrical conductivity and contact reliability.
Operating temperature ranges from -40°C to 85°C, supporting use in varied industrial environments. Switching power ratings allow handling loads up to 60W, with maximum switching AC voltage of 250V and DC voltage of 30V.
Coil specifications include a resistance of 178Ω and a power consumption of only 140mW, contributing to energy-efficient designs. The relay's compliance with VDE, CSA, RoHS, and UL certifications affirms its suitability for stringent industrial and commercial applications.
Manufactured in Japan, the Panasonic TQ2SA-5V relay is ideal for precision communication devices, measurement instruments, quality assurance equipment, and other demanding electrical systems requiring reliable signal switching at high frequencies.
Compact low-profile surface mount relay design. High frequency characteristics for communication applications. Durable silver alloy contacts with low resistance. Wide operating temperature range from -40°C to 85°C. 60W switching power capacity with AC/DC voltage ratings.
Low coil power consumption of 140mW. Easily mounted with solder terminals for SMD assembly. Certifications include VDE, CSA, RoHS, and UL. Manufactured in Japan ensuring quality and reliability. Suited for industrial, laboratory, and communication equipment use.
Explore more Panasonic Power Relays and related components in the Electronics & Electricals category at EnvMart, trusted for industrial-grade relay solutions across various sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TQ2SA-5V relay has a switching current of 28.1mA.
This relay can handle a maximum switching AC voltage of 250V and a maximum switching DC voltage of 30V.
The relay operates with a coil voltage of 5V DC and has a low power consumption of 140mW.
The relay has a height of 5.6mm, a length of 14mm, and a width of 7mm.
It features a double-pole double-throw (DPDT) contact configuration.
The contact resistance is 75mΩ, ensuring good electrical conductivity.
The relay operates within a temperature range of -40°C to 85°C.
The contacts are made of silver alloy, which helps ensure reliability and low contact resistance.
This model is designed for surface mounting with solder-type terminals.
The relay complies with VDE, CSA, RoHS, and UL standards.
The relay has a switching power rating of 60W.
It is suitable for high frequency applications, communication equipment, and measurement instruments.
