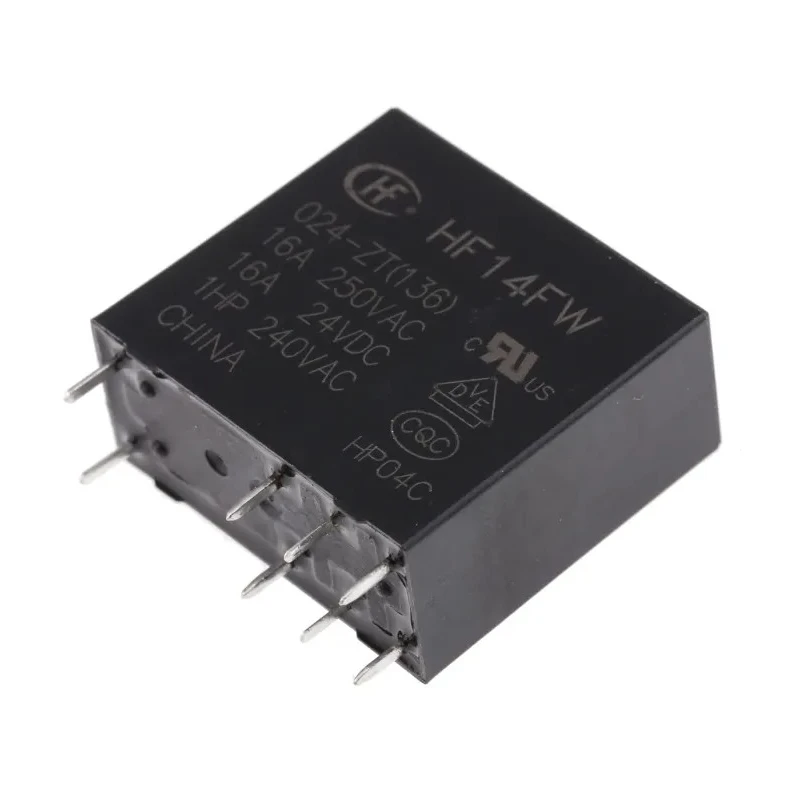

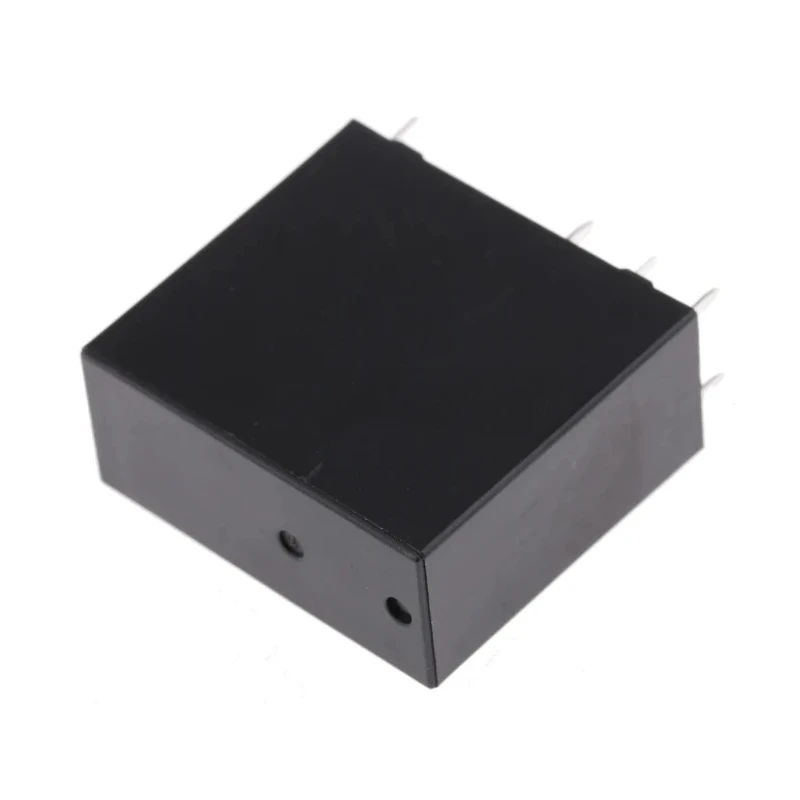

RS PRO PCB Power Relay 24V dc Coil 20A Switching Current SPDT 8004508P
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 26.5mm |
| Length | 29mm |
| Model | 8004508P |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 20A |
| Terminal type | Solder |
| Contacts | 1 Form C, SPDT |
| Standards/Approvals | UR, CQC |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 530mW |
Key Features
- The relay features a 1 Form C, SPDT contact configuration ensuring versatile electrical control.
- Designed for PCB mounting with solder terminal type for secure installation.
- Operates within -40°C to 85°C temperature range for broad environmental tolerance.
- Silver alloy contact material provides excellent conductivity and durability.

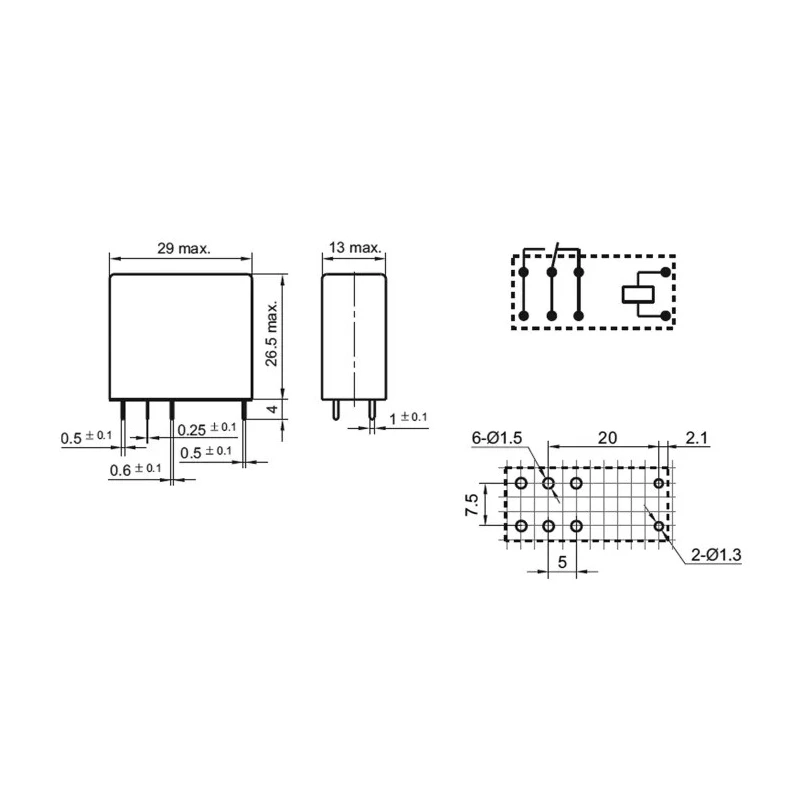

- Compact dimensions of 29mm length, 26.5mm height, and 13mm width suit dense PCB layouts.
- Coil resistance is 1.1kΩ with a coil power consumption of 530mW supporting energy efficiency.
- Supports switching power of 2.5kVA, AC voltage up to 277V and DC voltage up to 30V.
- Meets industry standards including UR, CQC approvals for quality assurance.
Product Description
RS PRO 8004508P is a high-performance PCB power relay designed with a 24V dc coil and a 20A switching current capability using SPDT (1 Form C) contact configuration. The relay offers robust and reliable switching suitable for varied industrial, automation, and electrical control applications requiring precise and durable relay solutions.
This miniature power relay is engineered for PCB mounting with solder terminals ensuring secure mechanical and electrical connections on printed circuit boards. It supports operation within a wide temperature range of -40°C to 85°C, making it suitable for demanding environments.
The contact material is a silver alloy, providing excellent electrical conductivity and extended service life. With a coil resistance of 1.1kΩ and coil power consumption of 530mW, it offers efficient coil operation while maintaining strong switching performance.
The relay supports a switching power rating of 2.5kVA, with maximum switching voltages up to 277V AC and 30V DC. This flexibility in voltage and current handling results in applicability across multiple control and signal circuits.
Its dimensions (29mm length, 26.5mm height, 13mm width) ensure compact integration into electronic assemblies. The relay is compliant with UR, CQC approvals, signifying adherence to recognized quality and safety standards.
Typical industrial use cases include automation controls, electrical protection circuits, signal conditioning, and general industrial equipment. The miniature form factor and high power handling make it suitable for dense, high-reliability PCB layouts.
This RS PRO relay is manufactured in China and carries the model identifier 8004508P, ensuring traceability and authenticity in industrial procurement. Explore EnvMart’s extensive range of Power Relays and related automation components to find precision and reliability tailored to your industrial needs.
The relay features a 1 Form C, SPDT contact configuration ensuring versatile electrical control. Designed for PCB mounting with solder terminal type for secure installation. Operates within -40°C to 85°C temperature range for broad environmental tolerance.
Silver alloy contact material provides excellent conductivity and durability. Compact dimensions of 29mm length, 26.5mm height, and 13mm width suit dense PCB layouts. Coil resistance is 1.1kΩ with a coil power consumption of 530mW supporting energy efficiency.
Supports switching power of 2.5kVA, AC voltage up to 277V and DC voltage up to 30V. Meets industry standards including UR, CQC approvals for quality assurance. Miniature high power relay ideal for automation, industrial control, and electronic applications.
Discover more quality electrical components and automation solutions with EnvMart for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 20A, making it suitable for various control applications.
The relay operates with a coil voltage of 24V DC, which is essential for its activation.
The dimensions of this relay are 29mm in length, 26.5mm in height, and 13mm in width, allowing for compact PCB integration.
It features a 1 Form C, SPDT contact configuration, providing versatile electrical control options.
This relay can switch AC voltages up to 277V and DC voltages up to 30V, offering flexibility in various applications.
It operates within a temperature range of -40°C to 85°C, making it suitable for demanding environments.
This model uses solder terminals for secure installation on printed circuit boards (PCBs).
The coil resistance is 1.1kΩ, which is important for determining the relay's power consumption and efficiency.
The coil power consumption is 530mW, supporting energy efficiency during operation.
The contacts are made from silver alloy, which provides excellent conductivity and durability.
This relay meets UR and CQC approvals, ensuring it adheres to recognized quality and safety standards.
This RS PRO relay is manufactured in China, ensuring traceability and authenticity in procurement.
