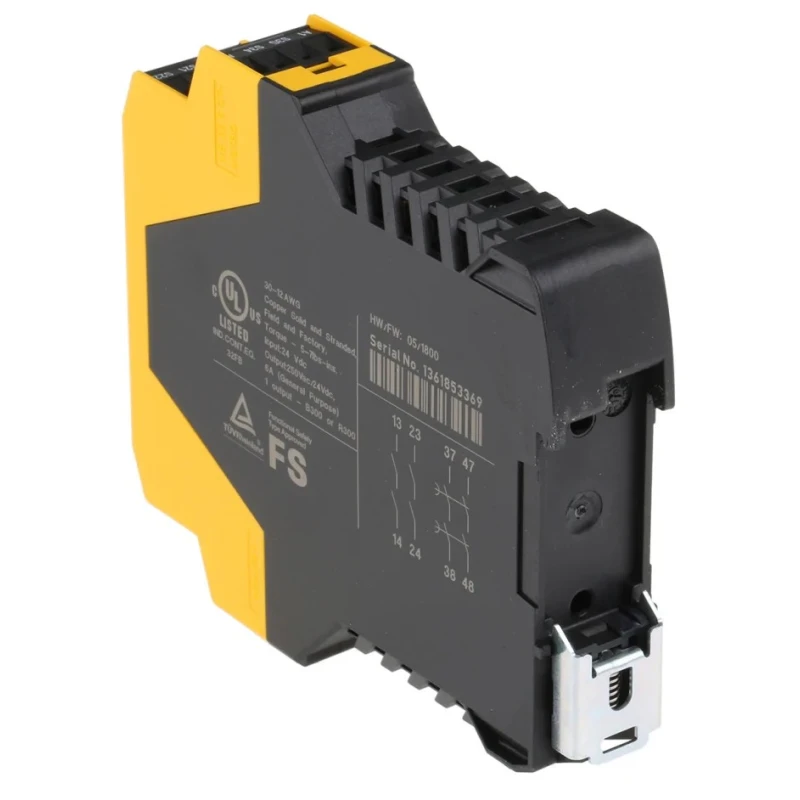

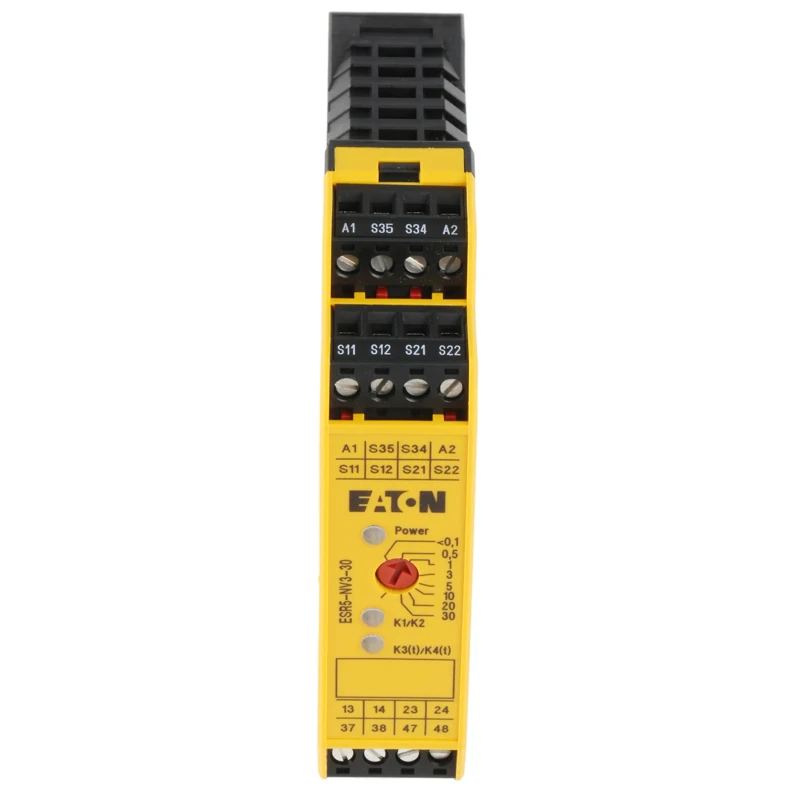

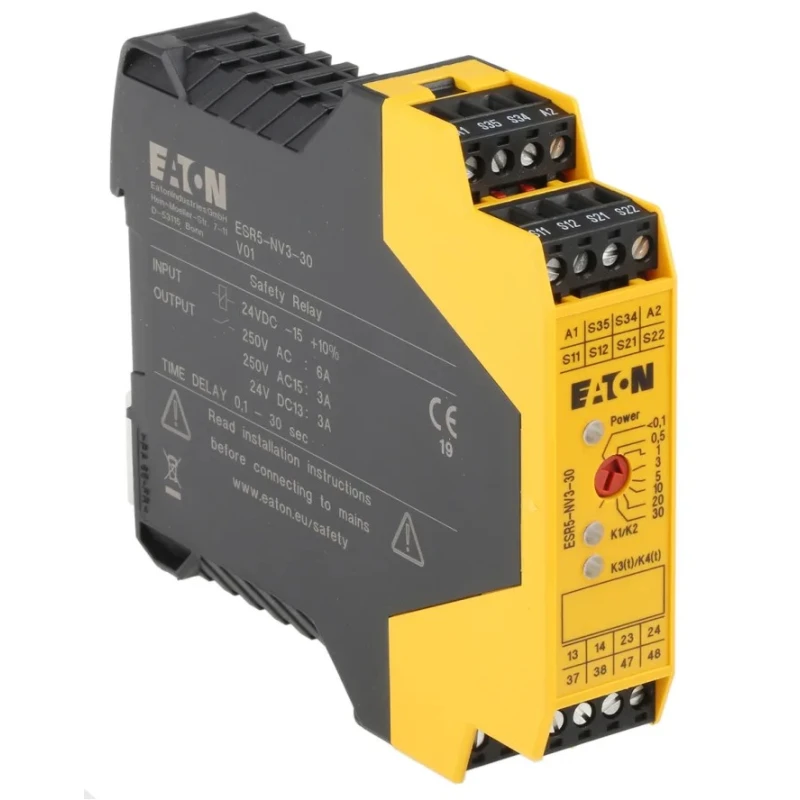

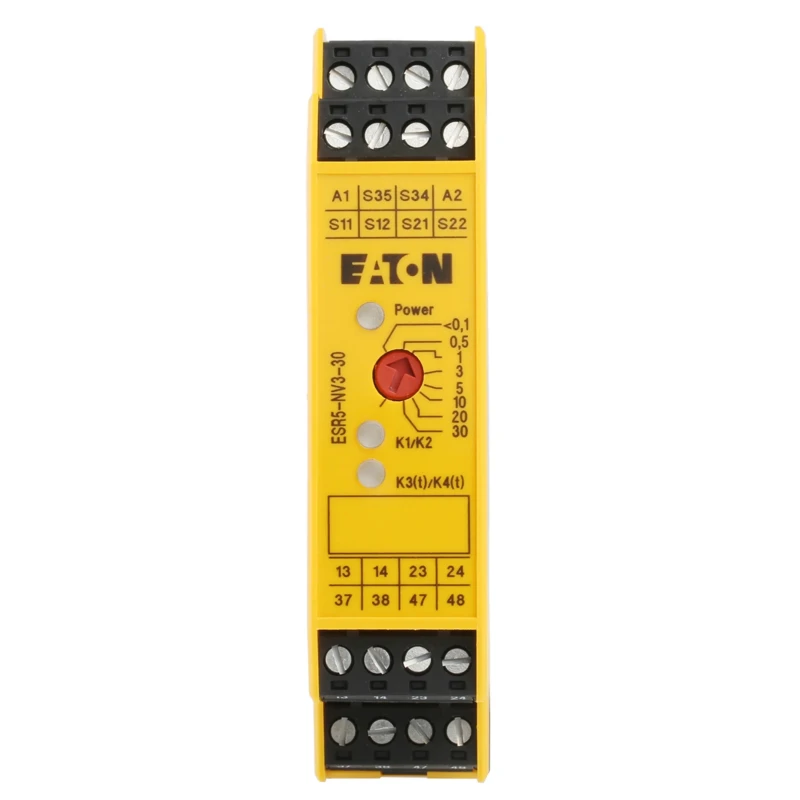

Eaton Safety Relay 24V DC, 2 Safety Contacts, Automatic & Manual Reset ESR5

Eaton ESR5 24V DC Safety Relay, model ESR5, is engineered for high safety standards in industrial automation and control environments. It continuously monitors safety devices and rapidly disconnects the circuit in emergencies.

This relay features two safety contacts and provides both automatic and manual reset options. Its compact size of 22.5 mm (length), 114.5 mm (width), and 99 mm (height) makes it suitable for installations with limited space.

Designed with screw terminal connections, the unit ensures quick and secure wiring. The IP20 ingress protection safeguards against solid items larger than 12 mm, providing reliable operation in industrial settings.

The ESR5 safety relay complies with stringent safety standards including TÜV Rheinland, IEC 61508, UL/cUL, CE marking, IEC 62061, DIN EN 50178, and EN ISO 13849-1 up to Performance Level e (PLe) and SILCL 3. It has a contact current rating of 5A suitable for various industrial loads and supports switching voltages of 24V DC and 230V AC.

Operating temperature ranges from -20°C to 55°C, ensuring durability under harsh conditions. This model is made in Germany, reflecting a high level of manufacturing quality.

Common uses include emergency-stop disconnection, monitoring safety light guards and movable guards, and two-hand control monitoring to prevent operator injury. Two-hand monitoring requires both hands to be free of the danger zone during machine operation, adding a critical layer of protection.

Compact, robust, and certified, the Eaton ESR5 is ideal for maximizing safety in plant machinery and industrial automation applications. Equipped with 2 safety contacts for secure operation. Supports automatic and manual reset methods for versatile use.

Compact dimensions of 22.5 x 114.5 x 99 mm fit confined spaces. Screw terminal connections enable quick and straightforward installation. Ingress protection rating IP20 protects against solid objects greater than 12 mm. Designed for safety category PLe and SIL 3 compliance.

Operates reliably from -20°C up to 55°C ambient temperatures. Switching voltage rated at 24V DC and 230V AC. Contact current rated for 5A to handle industrial loads. Manufactured in Germany ensuring high build quality.

This safety relay is a key component for industrial, manufacturing, and automation safety systems, ensuring compliance with international standards and enhancing worker safety. Browse the Eaton category on EnvMart for related Safety Relays and automation products.
