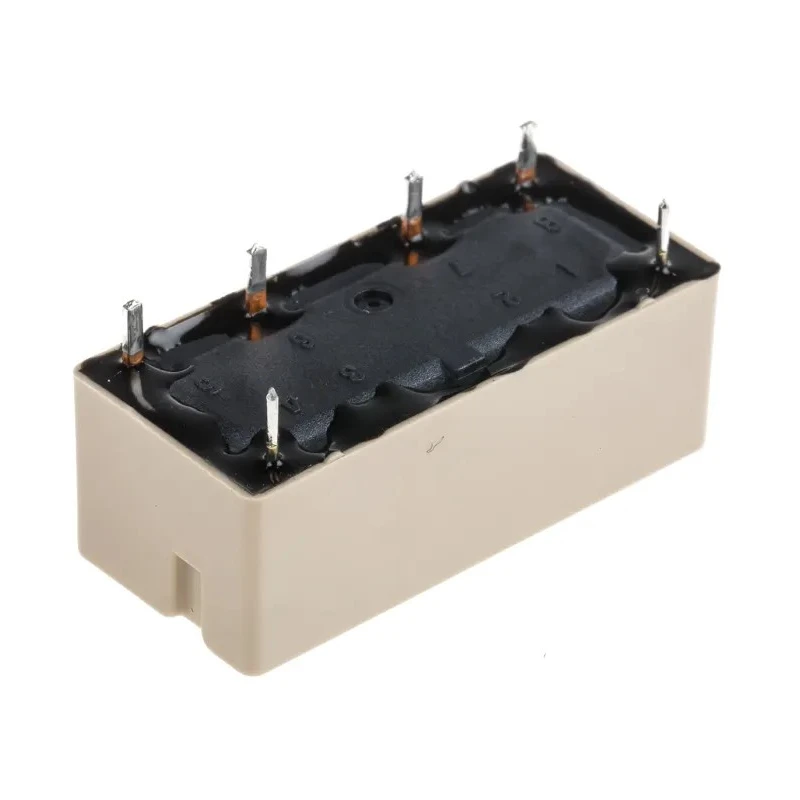

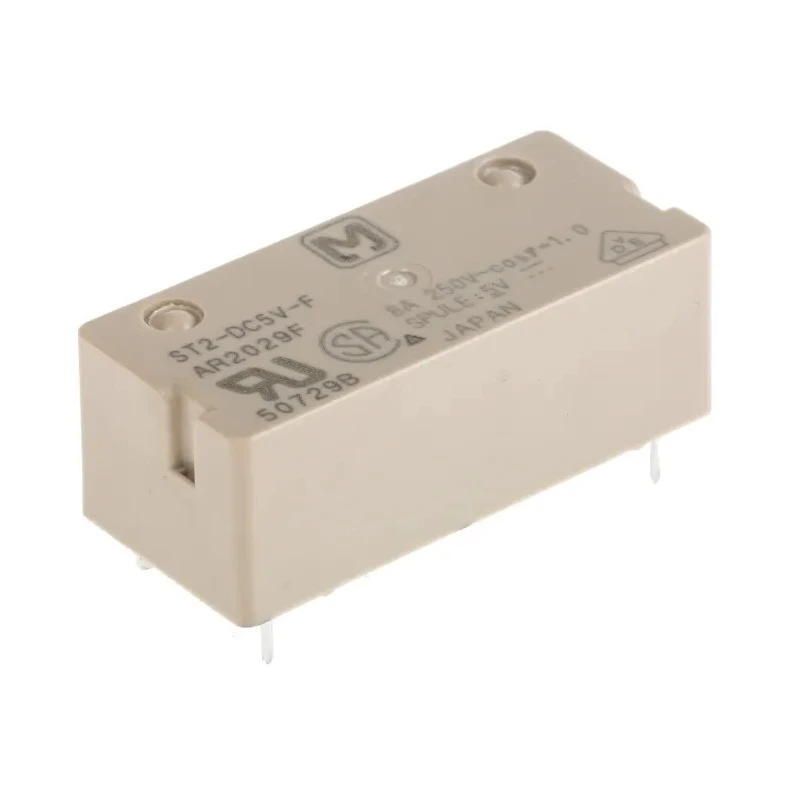

Panasonic PCB Power Relay 5V DC Coil 8A Switching Current DPST SP4-P Series ST2-DC5V-F
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 11mm |
| Length | 31mm |
| Model | ST2-DC5V-F |
| Width | 14mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SP4-P |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | PCB Pin |
| Contact Resistance | 30mΩ |
| Standards/Approvals | CSA, UL, VDE |
| Coil Resistance | 105Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 380V |
| Coil Power | 240mW |
| Switching Power | 150W |
Key Features
- Compact sealed design allows automatic washing and improves stability.
- High switching capability with a switching power of 150W suitable for inductive lamp load switching.
- Suitable for direct IC-driving due to its sensitive coil with 240mW power consumption.
- Operates reliably within temperature range of -40°C to 60°C.
- Constructed with silver alloy contacts for low contact resistance of 30mΩ.
- Mount type is PCB with PCB pin terminals for easy assembly on printed circuit boards.
- Complies with CSA, UL, and VDE standards ensuring industrial safety and quality.
- Manufactured in Japan offering quality assurance and durability.
Product Description
Panasonic ST2-DC5V-F PCB Power Relay is a robust and compact power relay designed for PCB mounting with a 5V DC coil voltage and 8A switching current in a DPST contact configuration from the reliable SP4-P series.
This relay offers a high switching capability of 150W, making it well-suited for inductive load switching such as lamps and other devices requiring high reliability and stability.
The sealed construction design enables automatic cleaning processes and protects the relay's internal components, thus extending its operational lifespan. The coil requires only 240mW power, making it sensitive enough for direct integrated circuit driving applications.
Dimensions of 11mm height, 14mm width, and 31mm length provide a compact form factor ideal for space-constrained PCB applications. It operates efficiently within a temperature range from -40°C to 60°C, ensuring reliable performance in various industrial environments.
Silver alloy contacts minimize contact resistance to 30mΩ, improving electrical efficiency and reducing wear, while the coil resistance is 105Ω. The relay is mounted via PCB pins, ensuring stable and precise connection on printed circuit boards.
Panasonic ST2-DC5V-F complies with stringent CSA, UL, and VDE standards, certifying it for various industrial, automation, and electronic applications requiring safety and conformity.
The product is manufactured in Japan, guaranteeing high-quality engineering and reliable operation for demanding applications in electrical control, automation, HVAC systems, manufacturing plants, and industrial machinery.
Compact sealed construction allows automatic washing and high reliability. High switching capability suitable for inductive lamp load switching. Low coil power consumption enables direct IC-driving. Wide operating temperature range ensures stable performance.
Silver alloy contacts for low resistance and durability. PCB mount type with pin terminals for easy assembly. Certified by CSA, UL, and VDE for industrial safety. Dimensions: 11mm H x 14mm W x 31mm L for compact installations.
Manufactured in Japan, ensuring quality and durability. Explore Panasonic Power Relays and electrical components on EnvMart for industrial automation, control systems, and PCB assembly solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 8A.
The coil voltage for the ST2-DC5V-F is 5V DC.
The relay measures 11mm in height, 14mm in width, and 31mm in length.
It is constructed with silver alloy contacts, which provide a low contact resistance of 30mΩ.
The maximum operating temperature is 60°C.
Yes, it has a high switching capability of 150W, making it suitable for inductive lamp load switching.
The coil power consumption is 240mW, allowing for direct IC-driving applications.
The relay features a DPST (Double Pole Single Throw) contact configuration.
It complies with CSA, UL, and VDE standards, ensuring industrial safety and quality.
The minimum operating temperature is -40°C.
The relay is designed for PCB mounting and features PCB pin terminals for easy assembly.
The coil resistance is 105Ω.
