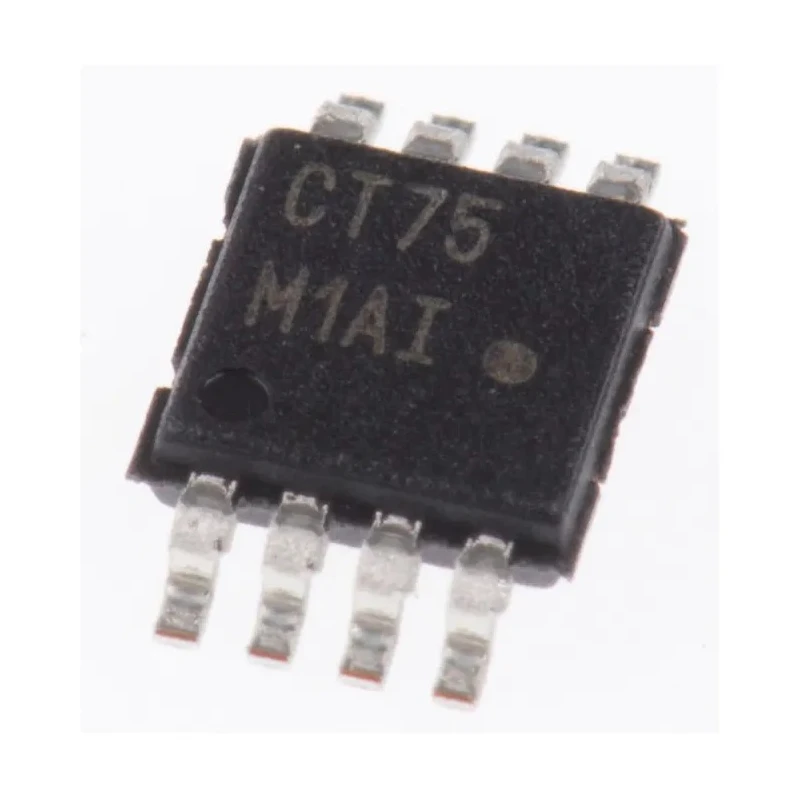

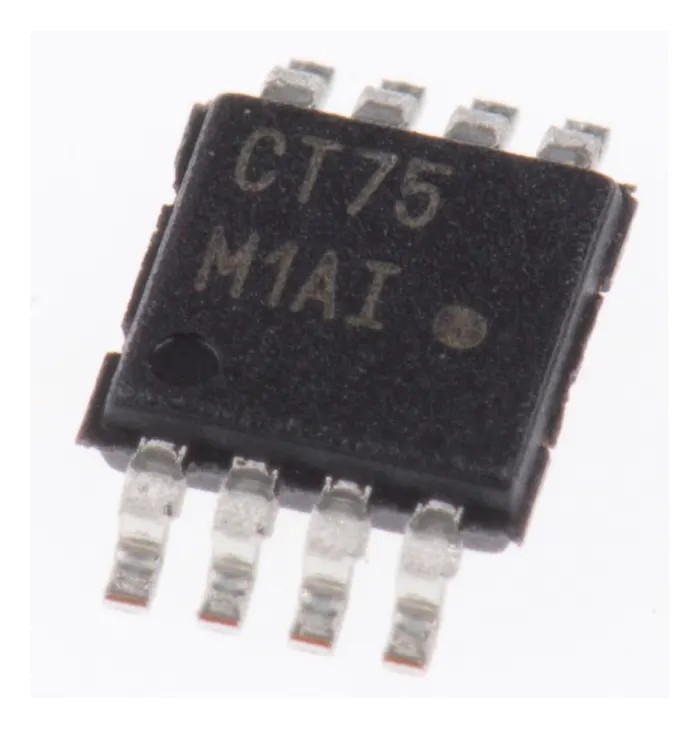

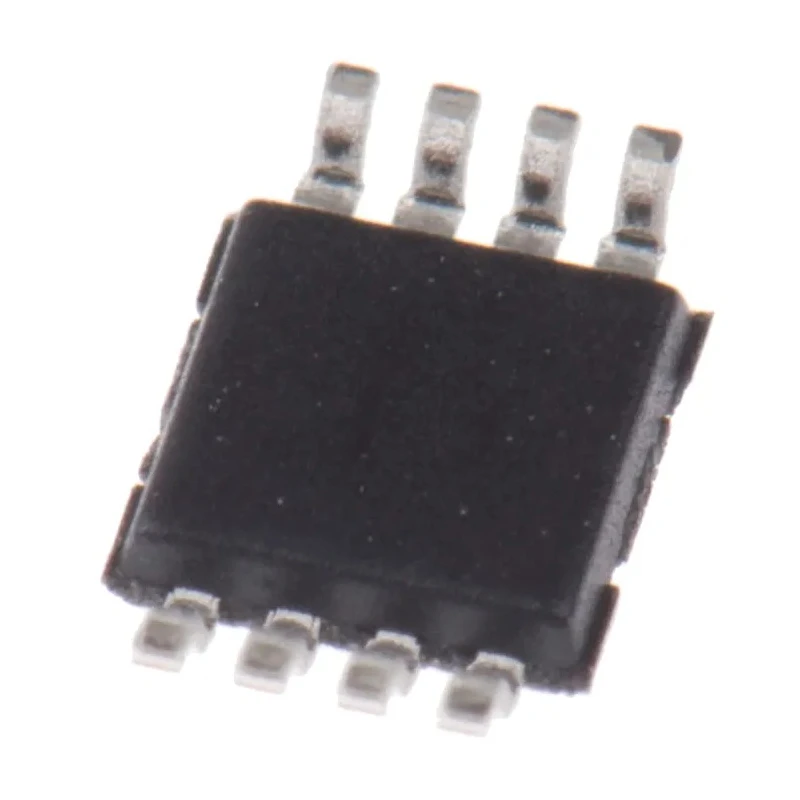

onsemi Digital Output Temperature Sensor, Surface Mount, Serial-I2C, SMBus, Accuracy ±1°C, 8-Pin NCT75DMR2G
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±1°C |
| Brand | onsemi |
| Height | 950μm |
| Length | 3.1mm |
| Model | NCT75DMR2G |
| Width | 3.1mm |
| Mount Type | Surface |
| Output type | Digital |
| Maximum Operating Temperature | 125°C |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -55°C |
| Interface Type | Serial-I2C, SMBus |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
Key Features
- Features a 2-wire serial interface compatible with I2C and SMBus protocols.
- Operates over a wide temperature range from -55°C to +125°C.
- Supports supply voltage from 3 V to 5.5 V.
- Includes shutdown mode and overtemperature indicator for enhanced control.
- Compact dimensions of 3.1 mm length and width, with 950 μm height optimize PCB space.
- Automotive-grade AEC-Q100 compliant for high reliability.
- Ideal for thermostat controls, thermal management, battery monitoring, office electronics, and test equipment.
- Surface mount design facilitates automated assembly and efficient manufacturing.
Product Description
onsemi NCT75DMR2G is a high-accuracy digital output temperature sensor designed for seamless integration in electronic circuits through its surface mount 8-pin package. It provides temperature readings with ±1°C accuracy using an onboard ADC, delivered over a digital 2-wire serial interface compatible with I2C and SMBus standards. The sensor operates reliably within a broad temperature range from -55°C to +125°C and supports supply voltages between 3 V and 5.5 V, making it suitable for diverse industrial and commercial applications.
Incorporated features such as a shutdown mode and overtemperature indicator enhance power management and safety. Its compact footprint of 3.1 mm by 3.1 mm by 950 μm height minimizes board area usage, facilitating dense PCB designs especially in space-constrained environments.
This sensor is automotive-grade compliant under AEC-Q100 standards, confirming its robustness and reliability in demanding environments. Typical uses include thermostat controls, thermal management systems, battery management in electronic devices, office electronics, and electronic testing instruments.
2-wire serial interface for digital communication via I2C and SMBus. Accurate temperature measurement with ±1°C precision. Surface mount device with compact 8-pin package. Wide operating range: -55°C to +125°C. Flexible supply voltage from 3 V to 5.5 V.
Shutdown mode and overtemperature status output. Automotive standard AEC-Q100 certification ensures reliability. Facilitates efficient automated PCB assembly processes.
The NCT75DMR2G temperature sensor is an excellent component choice for industrial machines, laboratory instruments, HVAC controls, agricultural technology, manufacturing processes, and commercial electronics requiring precise temperature monitoring and control.
Explore more Temperature Sensor solutions and compatible components on EnvMart to enhance your designs and applications with reliable, high-performance sensor technology.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor operates reliably within a temperature range from -55°C to +125°C.
It provides temperature readings with an accuracy of ±1°C.
This model features a digital output via a 2-wire serial interface compatible with I2C and SMBus protocols.
The dimensions of this temperature sensor are 3.1 mm in length and width, with a height of 950 μm.
It supports a supply voltage range from 3 V to 5.5 V.
Yes, it includes a shutdown mode and an overtemperature indicator for enhanced control and safety.
Yes, it is automotive-grade compliant under AEC-Q100 standards, ensuring reliability in demanding environments.
The NCT75DMR2G has a pin count of 8.
This temperature sensor utilizes a surface mount design.
Typical applications include thermostat controls, thermal management systems, battery monitoring, and office electronics.
The country of origin for this temperature sensor is India.
Incorporated features such as shutdown mode and overtemperature indicator enhance power management and safety.
